Machines » Gear Shavers CNC »  FA30CNC 4-Axis CNC Gear Shaver
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite

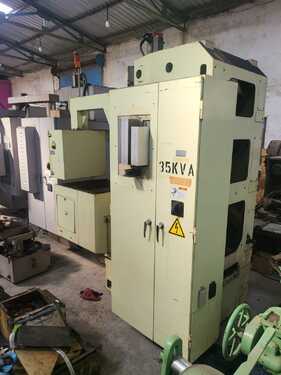

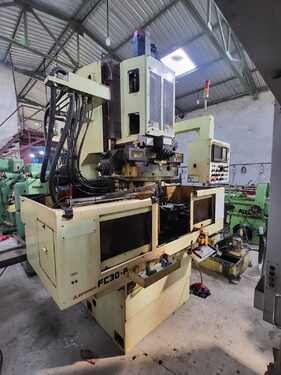

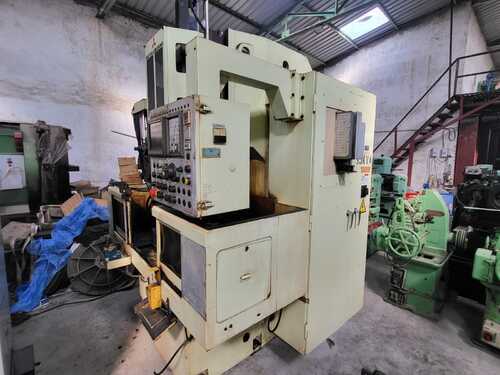

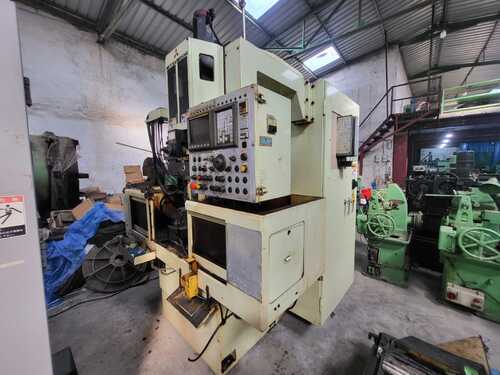

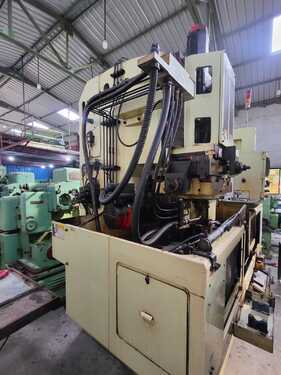

Mitsubhishi FA30CNC 4-Axis CNC Gear Shaver.
Under Power.

Product Gallery :

Enlargeable Images : DOWNLOAD PHOTO/ZIP

Machine Id : 1051
Model : FA30CNC 4-Axis CNC Gear Shaver
Make : MITSUBISHI
Year : 0
Dimensions :
Power :
Location : Mumbai Warehouse, India
Category : Gear Shavers CNC
Serial No :
Country : Japan
Type of Machine : CNC Gear shaver with High Accuracy
Weight : 0.0
Asking Price : onrequest

Specification :

CAPACITIES:

MAX GEAR DIAMETER 12.20"
MAX MODULE 3.175 DP
MAX TOOTH WIDTH 5.90"
MAX DISTANCE BETWEEN CENTERS 25.59"
MAIN MOTOR 8 HP

CUTTING SPECIFICATIONS:

MAX CUTTING DIAMETER 9.44"
MAX CUTTER WIDTH 2"
CUTTER INSIDE DIAMETER 2.5"
CUTTER ROTARY SPEED 40-400 RPM
SWIVEL ANGLE +/-23 DEG
CUTTING FEED SPEED .0039-.0984 IPM

TABLE:

TABLE FEED SPEED 1.18-11.81 IPM
TABLE STROKE 5.90"
DIAGONAL ANGLE +/-90 DEG

EQUIPPED WITH:

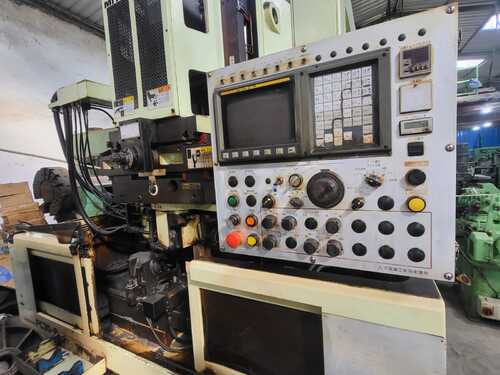

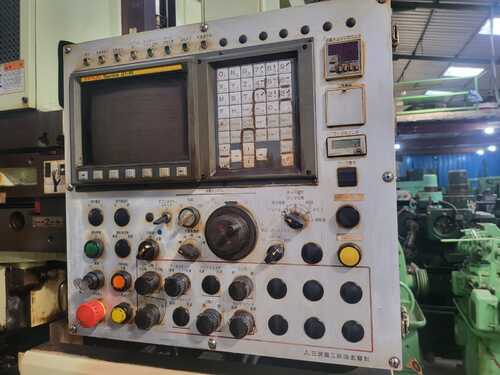

MITSUBISHI-FANUC 10M CNC CONTROL

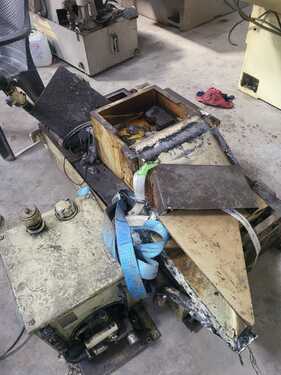

COOLANT FILTRATION SYSTEM
PLUNGE, UNDERPASS, DIAGONAL, & CONVENTIONAL CUTTING
CUTTING DEPTH BY FREE SELECTION IN PROGRAM
CUTTING METHOD BY SHIFT USING BALL SCREW

Description :
