Machines » Vertical Machining Centre CNC (VMC) »  mazak vqc 20/50b
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite

Mazatrol CAM M-2, X-:1000 mm, Y-:500 mm, Z-:320 mm, No. Of Tools: 24,

Product Gallery :

Enlargeable Images : DOWNLOAD PHOTO/ZIP

Machine Id : 1150

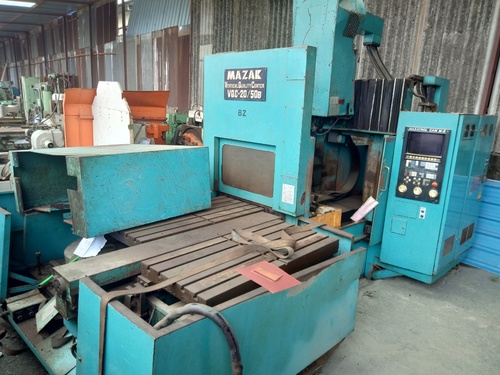

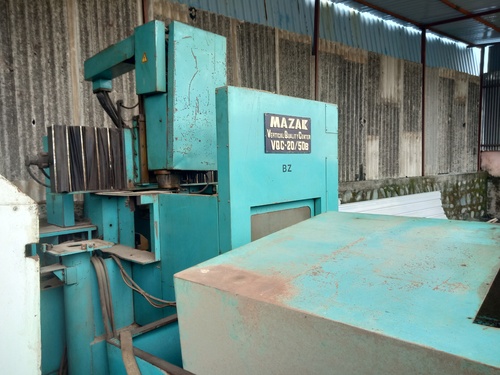

Model : mazak vqc 20/50b
Make : mazak
Year : 0
Dimensions : 3,1 x 2,9 x 2,9 m
Power : 22 kVA
Location : Mumbai WareHouse, India
Category : Vertical Machining Centre CNC (VMC)
Serial No :
Country : Germany
Type of Machine : vmc twin pallets
Weight : 0.0
Asking Price : onrequest

Specification :

X-travel  : 1000 mm
Y-travel  :  500 mm
Z-travel  :  320 mm
Table-size  :  550 x 1240 mm
Max. table load :  800 kg
Spindle taper :  CAT 50
Turning Speed Range - Stepless 20-3150 U/min
Main drive motor  : 7,5 kW
Voltage   : 380 V
Rapid traverse X- and Y-axis : 14 m/min
Rapid traverse Z-axis 12 m per min
Feed speeds infinitely variable : 1to5000 mm per min
Total power requirement : 22 kVA
Weight of the machine ca. : 5600 kg
Dimensions of the machine ca. : 3,1 x 2,9 x 2,9 m

Description :

Maximum Tool Diameter: 130mm
Maximum Tool Diameter with adjacent pocket empty: 150mm
Maximum Tool Weight: 13 kgs.
No. Of Tools: 24
Tool Selection system: Automatic Random short cut System
Maximum Drilling Capacity:
40mm
Maximum Tapping: M36 X  P 3-1/2- 8 UNF
Spindle : BT 50, 55 / 7.5 kw
AC Motor : 3150 rpm,

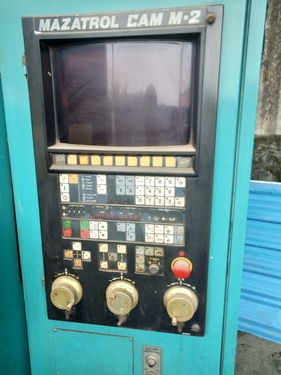

CNC Control : Mazatrol CAM M-2
