Excellent Machine For Sale Machine Serial Number 28222 Younger Machine 1996.

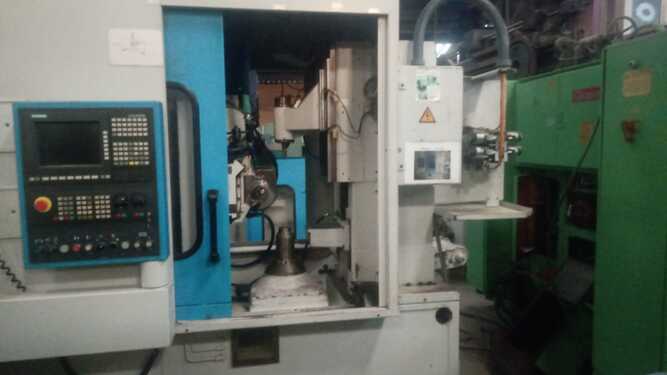

Machine Under Power.

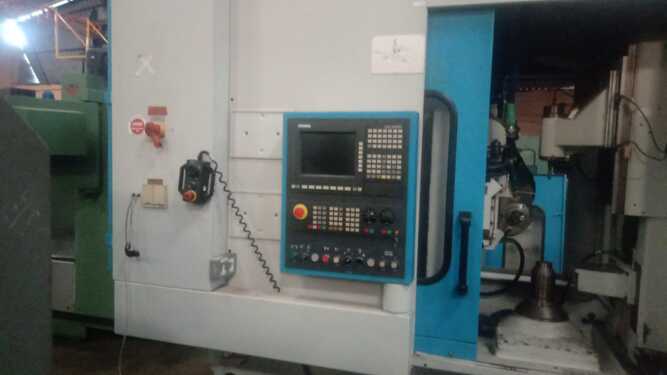

Fanuc 15M Controller.
Extended Tailstock Advantage for Longer Shafts .

Video
Machine Id: 1157 Serial No: 28222

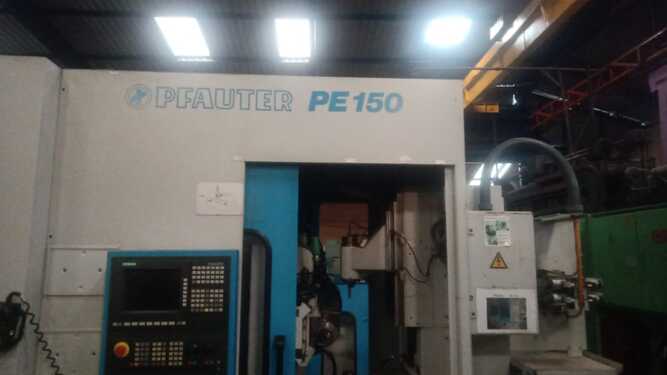

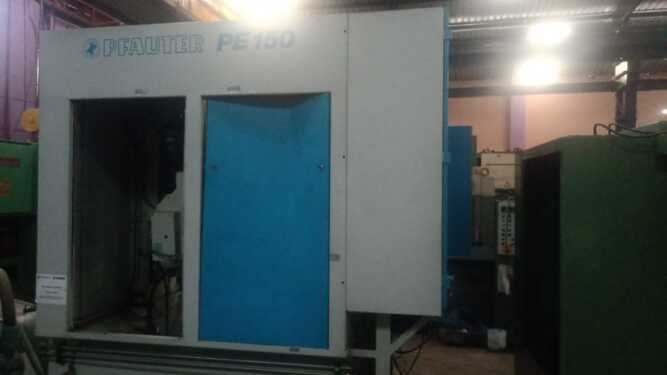

Model: PE150 Six Axis CNC Gear Hobber Asking Price: onrequest
Make: pfauter Country: United States
Year: Weight: 0.0
Dimensions: Location: Mumbai Warehosue, India
Power:
Category: Gear Related Machines
Type of Machine: 6-Axis CNC Gear Hobber HIGH SPEED
Specification

Machine Under Power.






This machine is being offered in as is condition. We can also offer it with a optional rebuild, recontrol or recertification. All recontrolled and recertified machines are fully cleaned. All moving slides, spindles and parts handling systems are inspected for problems. Any gibs or adjustable backlash systems are adjusted to the best possible settings. All hydraulic, coolant, lubrication and pneumatic systems are checked for proper functionality and leaks. All filters are replaced. All worn hoses, broken cables, connectors, buttons, lamps and wires are replaced. All guarding is installed and checked. All machine cycles are tested. Parts are cut to verify the machine capability. Charts from the test cutting are documented for your viewing.

Excellent 6 axis Fanuc 15m Gear Hobber
Machine under power

Maximum Workpiece Diameter:6"
Maximum Pitch (Module) In Steel With A Tensile
Strength Of Approx. 38 tons/sq. In.: D.P. 10
Maximum Axial Slide Travel: 6"
Minimum Center Distance Hob/Workpiece:4"
Maximum Center Distance Hob/Workpiece: 6"
Worktable Diameter: 6.29"
Index Worm Gear Diameter: 6.6"
Maximum Hob Head Swivel Angle:
- Standard: +/-45 Degrees
- Optional: + 30 Degrees/- 140 Degrees
Maximum Hob Diameter: 5"
Maximum Hob Length: 8.6"
Maximum Hob Shift: 6.7"
