Machines » Drill & Tap Centre CNC »  cv-6
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite

X : 300mm, Y: 250 mm , Z : 250 mm,

Product Gallery :

Enlargeable Images : DOWNLOAD PHOTO/ZIP

Machine Id : 134
Model : cv-6
Make : sugino
Year : 0
Dimensions : 1644 x 2350 x 1910 mm
Power :
Location : Mumbai WareHouse, India
Category : Drill & Tap Centre CNC
Serial No :
Country : Japan
Type of Machine : drill and tap center cnc
Weight : 0.0
Asking Price : onrequest

Specification :

Travel: X = 300mm, Y = 250 mm ,Z = 250 mm, From Spindle end to table top 500mm

Table: Width X Depth 500 x 300mm, Max.Loading weight 250kgf

Feed: Max. rapid feed = 18 (X, Y), 15 (Z) m/min, Max. Cutting feed 5m/min

Step feed amount 1, 0.1, 0.01, 0.001 mm, Least programmable unit 0.001mm

Accuracy: Positioning (+,-) 0.01mm , full travel, Repeatability (+,-) 0.005mm

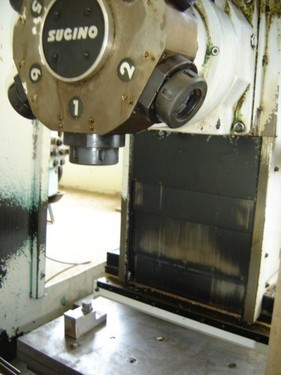

Turret Head: Number of Tools = 6, Selection Method = Random Select. Closer direction index

Indexing time: 1 Second, Tool Shank = MAS, BT-30 (Without retension knob)

Max: Tool length 200mm, Max. tool diameter 80mm, Max. tool weight 3kgf, Spindle end NT 30

Turret head: Spindle revolution 1-4500 (option 6000) rpm,

Spindle Motor 1.5kw/cont.(option 2.2 kw/cont.)

Compressed air pressure 4-6 kgf/cm2

Power Source: Voltage 3-phase, 200/220 vac (+,-) 10%, Max capacity 4.5kva

Description :
