Machines » Spline Milling / Spline Hobbing / Spline keyway »  tc 80
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite

Fully Double Head
automatic milling cycles
Auto indexing Facility
1000mm Job can be done



Product Gallery :

Enlargeable Images : DOWNLOAD PHOTO/ZIP

Machine Id : 291
Model : tc 80
Make : rouchaud
Year : 1980
Dimensions : not available
Power : not available
Location : MUMBAI WAREHOUSE,INDIA
Category : Spline Milling / Spline Hobbing / Spline keyway
Serial No : 8028
Country :
Type of Machine : double head horizontal spindle Keyway / spline milling machine Fully automatic milling cycles
Weight : 0.0
Asking Price : onrequest

Specification :

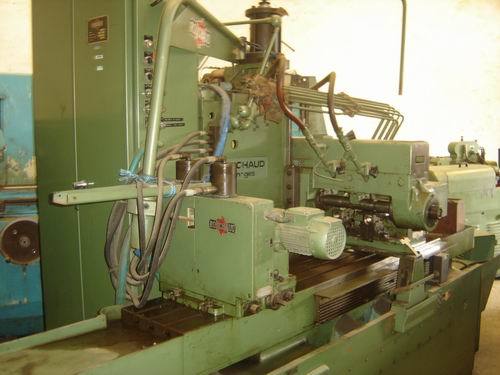

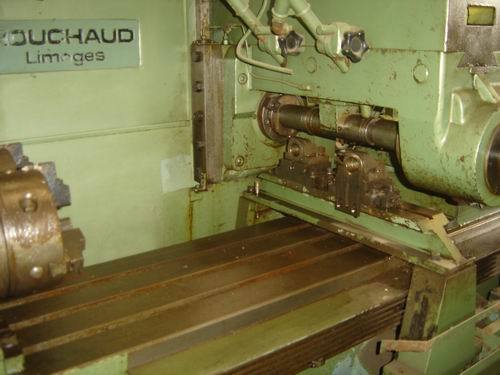

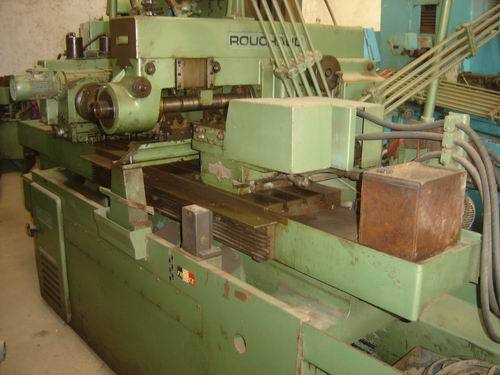

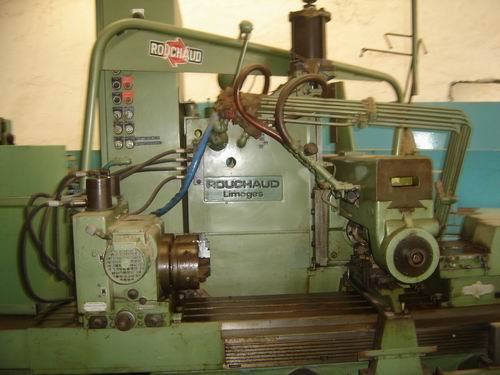

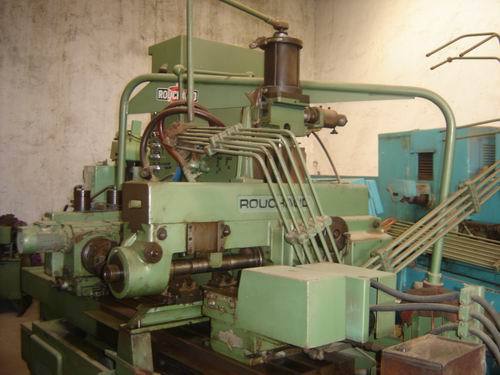

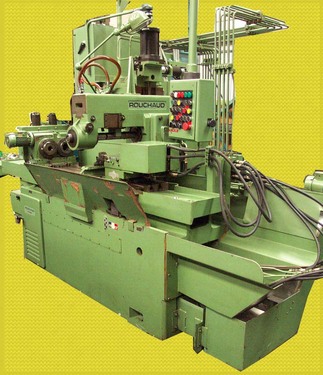

ROUCHAUD Model TC80 HORIZONTAL SPINDLE SPLINE MILLING MACHINE,

 Overall table size......       1800 x 320 mm
 Max traverse of table...... 1000 mm
 Max length of shaft admitted between centres... 965 mm
 Max distance spindle centre to table........... 500 mm
 Spindle speeds (change gears).....10........ 80  to 630 rpm
 Spindle nose....... No.50 INT
 Spindle motor...... 5.5 KW

Description :



Complete with:-

Fully automatic milling cycles.

Power rise & fall spindle carrier.

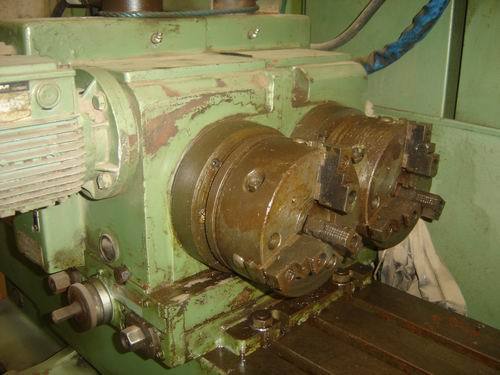

Twin spindle automatic indexing head & hydraulic

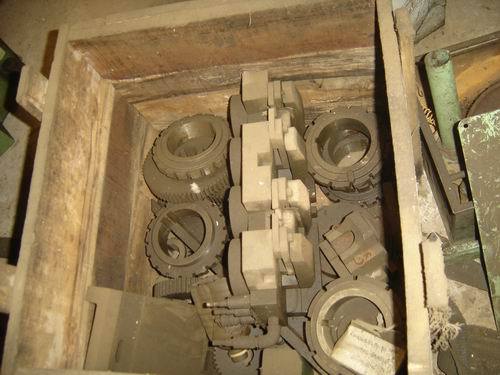

tailstocks having a selection of index plates.

Work arbor & arbor support.

Adjustable table mounted work steadies.

Change gears for spindle speed changes.

Automatic lubrication.

Guards.

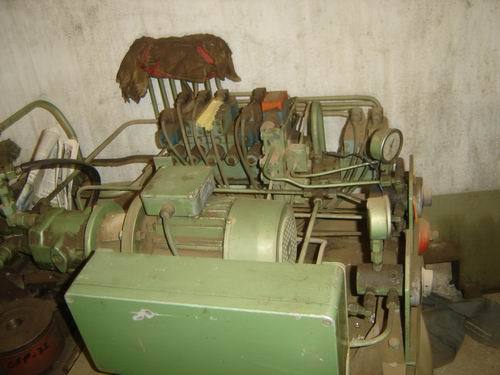

Coolant tank, pump & fittings.

Swarf conveyor.

Pendant controls.

Electrics 440, 3, 50.
