Distance cutter spindle to worktable:-
Max........... 250 mm
Min........... 150 mm
Max diameter of side mill....... 110 mm
Max cylindrical tool shank clamped, approximate...... 30 mm
Max morse taper clamped...... No.2 MT
Internal taper of spindle......... No.40 INT

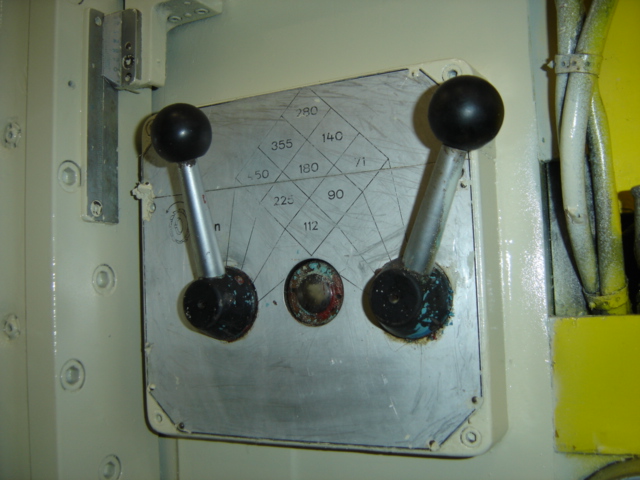

Spindle speeds......... 9 .......... 71 to  450 rpm
Spindle head longitudinal traverse s, power & hand... 3  to  400 mm
Spindle head vertical adjustment, hand........ 100 mm
Hydraulic vertical lift movement, automatic... 0 to  5 mm
Cutter spindle axial adjustment, hand............ 120 mm
Max distance between centres...... 918 mm
Size of worktable, tee slotted.........1500 x 375 mm
Size of tee slots...................... 16 mm
Spindle head longitudinal feeds....... 12 ........... 63 to  800 mm / min
Rapid traverse rate, advance & return................ 1.5 & 3 m / min
Cutter spindle drive motor........................... 3 KW
Spindle head drive motor............................. 1.8 / 2.2 KW
Hydraulic pump motor................................. 0.4 KW
Coolant pump motor................................... 0.5 KW
Floor space.......................................... 1800 x 1450 rpm
Overall height....................................... 1800 mm
Nett weight.......................................... 3,200 KGS
