| Machines » Roundness Checker » talyrond2 |
|
|
|
|
|

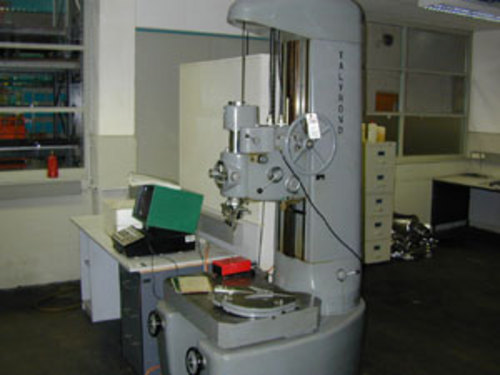

| Product Gallery : |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Dimensions |
: |
2290X865X1140mm |
|
|
|
| Location |
: |
MACHINE IN OUR MUMBAI WAREHOUSE |
|
|
 |
| Category |
: |
Roundness Checker |
|
|
|
|
|
| Type of Machine |
: |
roundness checking machine |
|
|
|
|
|
|
|
|
|
|
| Specification : |
Maximum Height from table surface 700mm, Maximum length (through table Aperture) 1.27meter
Maximum Diameter (Using table aperture) 254mm, Maximum recommended weight on table 450kg
Distance from column to spindle Axis 305mm
Longitudinal and transverse table movement from mid-position +-12.7mm
Vertical movement of Head on column 700mm, with reference Computer fitted 603mm
Vertical movement of spindle in head 100mm
Dimensions of Worktable 585 X 760mm
Width of base knee recess 350mm,
Overall height 2290mm
Overall width 865mm
Depth 1140mm
|
|
|
| Description : |
|
Used Roundness checking Internal and External Diameters Upto 350mm | | |
| |
|
|
|
|
|
|
