| Product Gallery : |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Dimensions |
: |
2364x1320x1050 |
|
|
|
| Location |
: |
MUMBAI WAREHOUSE, INDIA |
|
|
 |
|
|
|
|
|
|
| Type of Machine |
: |
cnc lathe (a compact machine ideal for precision) |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|

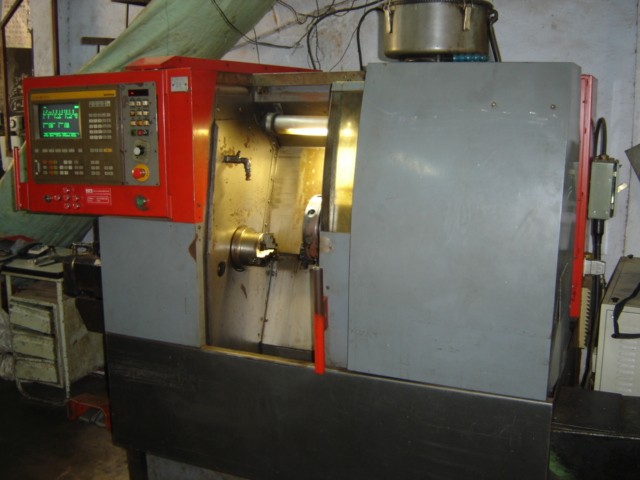

Used Slant bed turning center

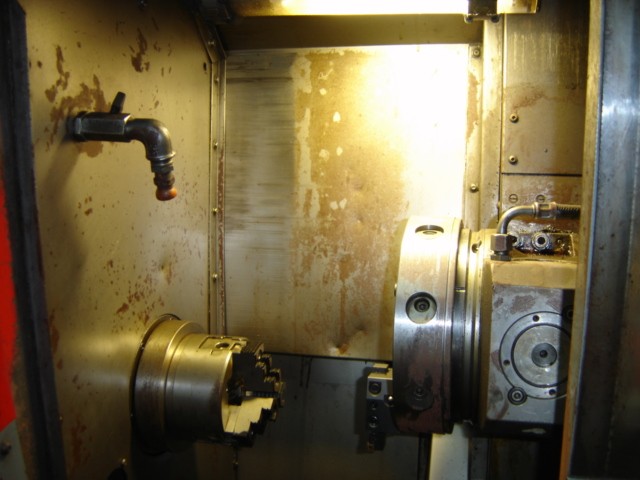

Used CNC Lathe with 150mm chuck , 8 position turret , tailstock and Siemens 810
Turning Diameter 158mm
Longitudinal traverse ( Z axis ) 300mm
Cross Traverse X axis 300mm
Main Spindle Drive AC spindle 15 KW
spindle bore 53mm
Acceleration time of X and Z axes 0 to 12mm/min 0.1 second
Servomotors in X and Z axis
Feed Force Longitudinal 9500N , Feed Force Cross 7500N
Rapid Traverse rate ( both X and Z axis) 12m/min
No. of Tools in Turret 8 , Indexing Accuracy (radius 100mm) +/- 0.002mm
|
|
|
| Description : |
|
Reproduction accuracy ( radius 100mm) +/- 0.0008mm
Tailstock spindle diameter 60mm, tailstock spindle stroke 120mm , Internal taper Connected load 20KVA , supply 3x380v/50HZ
|
|
|
|
|
