Machines » Spline Grinders »  s 10 x 72 inches
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite
Product Gallery :

Enlargeable Images : DOWNLOAD PHOTO/ZIP

Machine Id : 423
Model : s 10 x 72 inches
Make : matrix
Year : 0
Dimensions : Not Available
Power :
Location :
Category : Spline Grinders
Serial No : Not Available
Country : United Kingdom
Type of Machine : Spline Grinders
Weight : 0.0
Asking Price : onrequest

Specification :

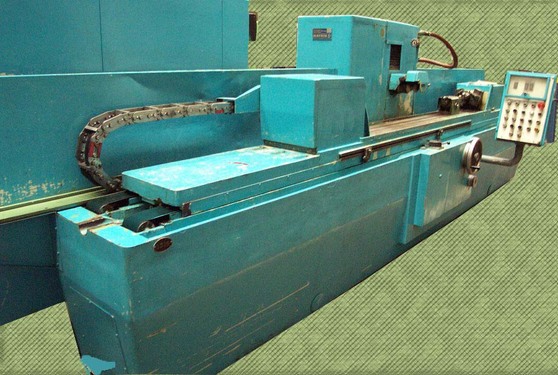

MATRIX Model S10 x 1830 BROACH GRINDING MACHINE,

Max length admitted between centres...... 1830 mm

Max diameter admitted........ 254 mm

Max diameter ground...... 152 mm



Component root diameter serrated form only.. 10 mm

Standard grinding wheel diameter....... 203 mm

Grinding wheel speeds, variable..... up to 3000 rpm

Grinding wheel motor D.C...1.5 KW

Description :

Complete with:-

 3 fully automatic programmed grinding cycles,

 which include wheel dressing with compensation.

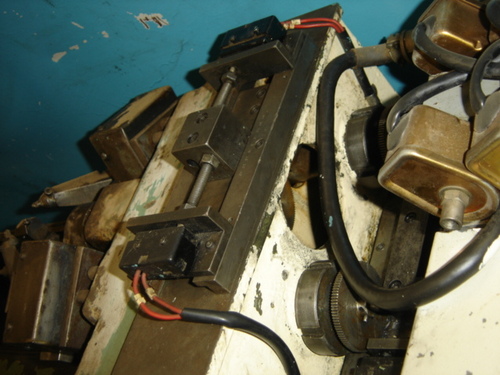

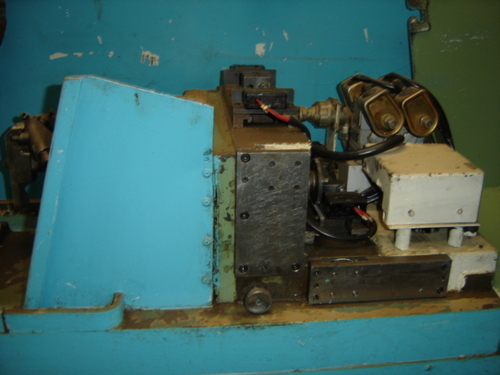

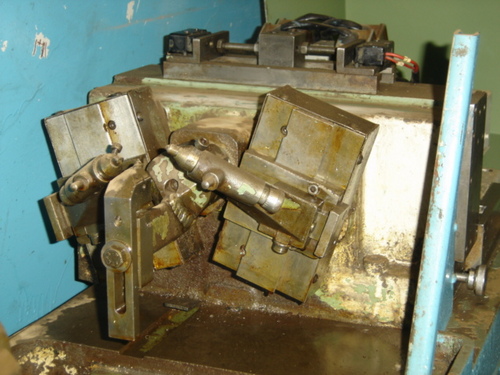

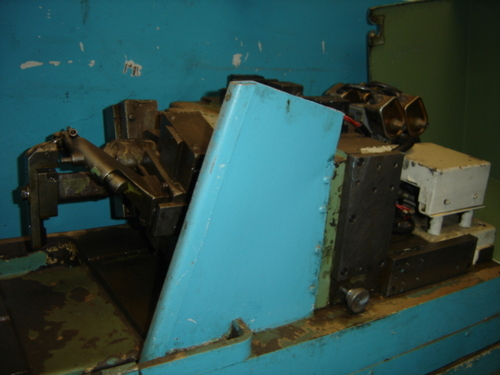

Straight-sided spline dresser type 82LD.

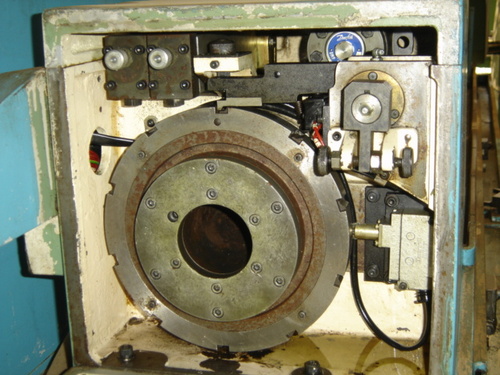

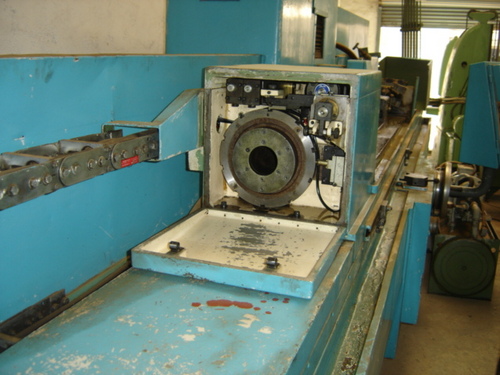

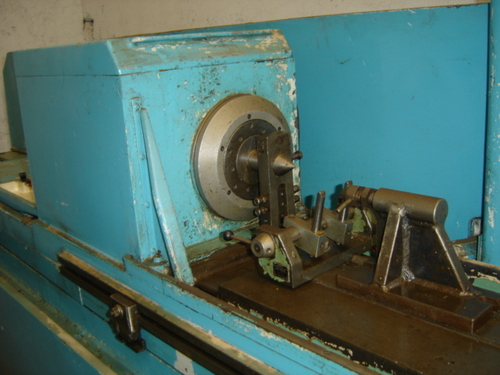

Workhead fitted with 10T index plate, selection

 of various index plates & segments also available.

 Setting fixture 82P.

Work steady.

Wheel arbor.

Guards.

Coolant supply.

 M.S.E. centrifugal clarifier.
