Machines » Gear Lapper »  503
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite

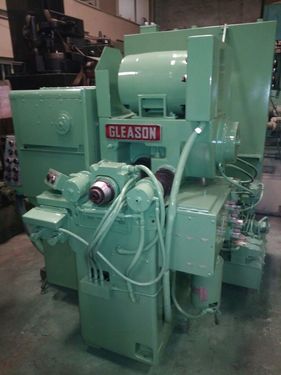

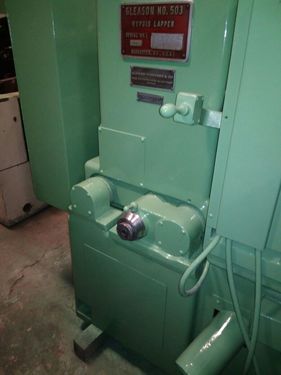

Used Hypoid Gear Lapper , overhauled in 1999 and since then it has been in use very little.. Eddy Brake,Hydraulic chucking to both heads.Pinion and cone motion switches 4 front and 6 at side.Very good machine

Product Gallery :

Enlargeable Images : DOWNLOAD PHOTO/ZIP

Video :
Machine Id : 814
Model : 503
Make : Gleason
Year : 0
Dimensions : 1800x1600x1700
Power :
Location : Our Own Stock
Category : Gear Lapper

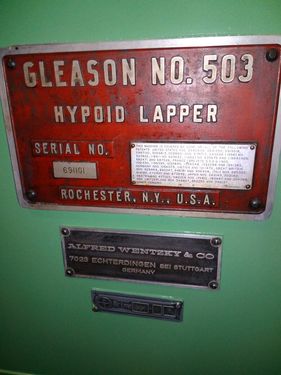

Serial No : 691101
Country : United States
Type of Machine : used gear lapper
Weight : 0.0
Asking Price : onrequest

Specification :

Used Hypoid Gear Lapper ,overhauled in 1999 and since then it has been in use very  little.

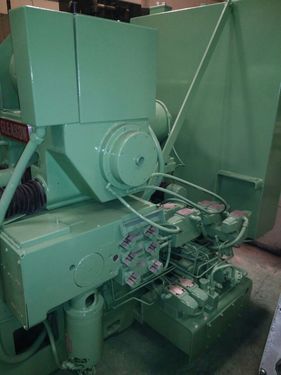

Brake,Hydraulic chucking to both heads.

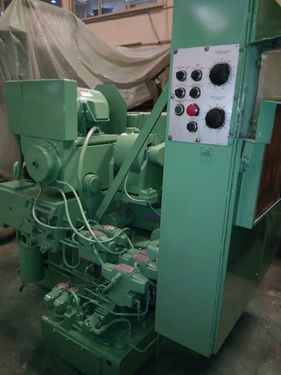

Pinion and cone motion switches 4 front and 6 at side.


Very good machine

Maximum Gear Diameter  266mm,


Maximum Pinion Diameter 152mm

Pinion Spindle :

Diameter of taper hole at large end  100mm,
taper /foot 15mm,


depth of taper


Diameter of hole through spindle 63mm.

Gear Spindle :-

Diameter of taper at large end  58mm


Taper/foot   13mm


Depth of Taper  76mm


Diameter of hole through spindle 55m.

Maximum Gear Diameter

: 266mm

Maximum Pinion Diameter

: 152mm

Pinion Spindle :



Diameter of taper hole at large end

: 100mm

taper /foot , depth of taper

: 15mm

Diameter of hole through spindle

: 63mm

Gear Spindle :



Diameter of taper at large end

: 58mm

Taper/foot

: 13mm

Depth of Taper

: 76mm

Diameter of hole through spindle

: 55mm

Description :

Used Hypoid Gear Lapper , overhauled in 1999 and since then it has been in use very little.. Eddy Brake,Hydraulic chucking to both heads.Pinion and cone motion switches 4 front and 6 at side.Very good machine
