Machines » Gear Shaver Cutter Sharpeners »  SRS 400
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite

Heavily Equipped with Index Plates + Toolings
The machine is Ex European Gear Shaver Cutter manufacturers and regrinders of used cutters.

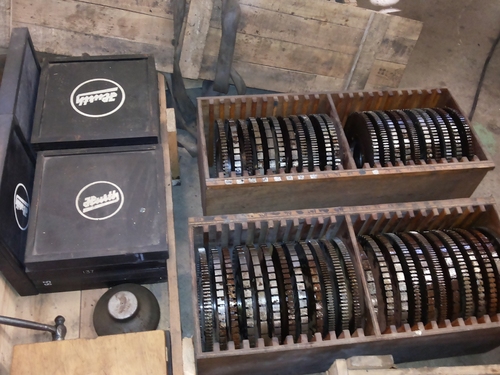

Gear Shaving Cutter Grinder complete with 60 xIndex Plates (20,28,32,33,40,43,
46,49,51,52,53,59,60,64,69,76,
97,103,116,118,121,146,151,156,28,30,41,50,57,64,65,68,71,72,79,84,92,94,



96,98,99,110,120,127,147,41,57,61,63,63,73,83,101,107,113,121,136,137,146,156 )

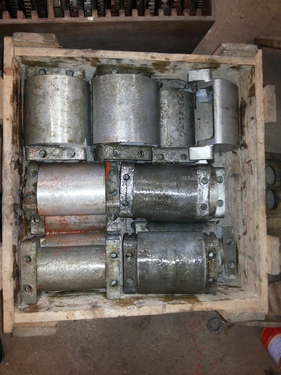

Swivelling Aluminium blocks and steel bands ,manderels etc.
The machine is Ex European Gear Shaver Cutter manufacturers and regrinders of used cutters.



It is also suitable for master gears as well as cutters for gear shapers.

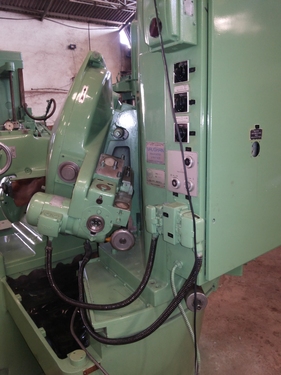

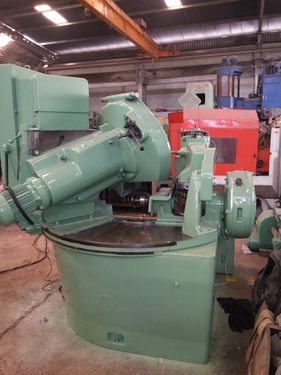

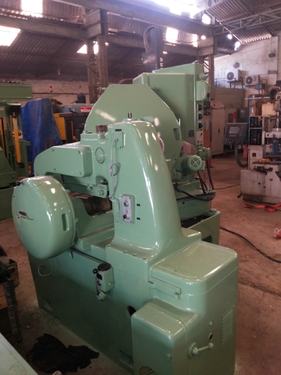

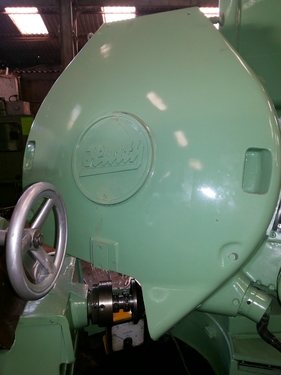

Product Gallery :

Enlargeable Images : DOWNLOAD PHOTO/ZIP

Machine Id : 932
Model : SRS 400
Make : Hurth
Year : 1985
Dimensions :
Power : 3KW
Location : Mumbai Warehouse,India
Category : Gear Shaver Cutter Sharpeners
Serial No : 18142
Country : Germany
Type of Machine : universal shaver cutter grinding machine with (Indexing plates 60)
Weight : 4200.0
Asking Price : onrequest

Specification :

No.of teeth 13 to 240
Pitch block Dia 73 to 320 mm

Module range 1to12
Shaver cutter Dia 64mm  min., max.320 mm
Shaver cutter width, max. 40 mm

Grinding wheel swivelling (pressure angle) 5 to 21 Degree
Grinding slide swivelling (helical angle) 2x35 Degree
Grinding slide adjustment, vertical 240 mm

Cutting speed 1, 0.5, 0.25 m per min

Speeds of workpiece slide 5, 20, 30, 40 teeth per min.
Grinding slide speed 690 rpm
Grinding slide Dia 762 mm

Spindle drive 1.1  kW

Description :

Gear Shaving Cutter Grinder complete with 60 xIndex Plates (20,28,32,33,40,43,
46,49,51,52,53,59,60,64,69,76,
97,103,116,118,121,146,151,156,28,30,41,50,57,64,65,68,71,72,79,84,92,94,

96,98,99,110,120,127,147,41,57,61,63,63,73,83,101,107,113,121,136,137,146,156 )

Swivelling Aluminium blocks and steel bands ,manderels etc.
The machine is Ex European Gear Shaver Cutter manufacturers and regrinders of used cutters.

It is also suitable for master gears as well as cutters for gear shapers.
