Machines » Gear Shavers »  GS 16 ...420MM
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite

Excellent Conidition.
Machine Came Out From England Factory.

Product Gallery :

Enlargeable Images : DOWNLOAD PHOTO/ZIP

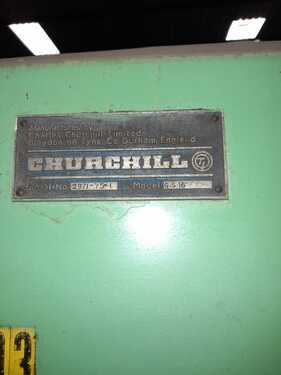

Machine Id : 1086
Model : GS 16 ...420MM
Make : churchill
Year : 0
Dimensions :
Power :
Location :
Category : Gear Shavers
Serial No :
Country : United Kingdom
Type of Machine : gear shaver universal
Weight : 0.0
Asking Price : onrequest

Specification :

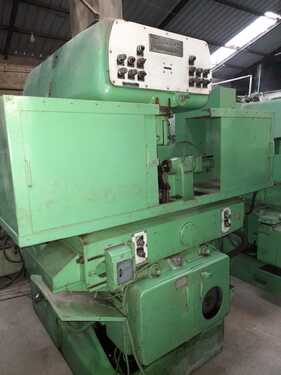

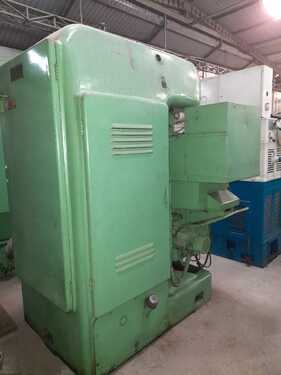

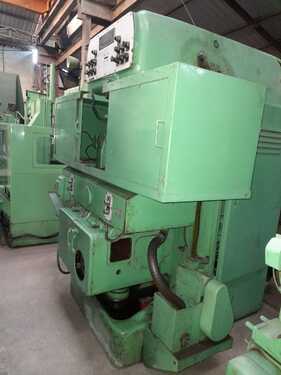

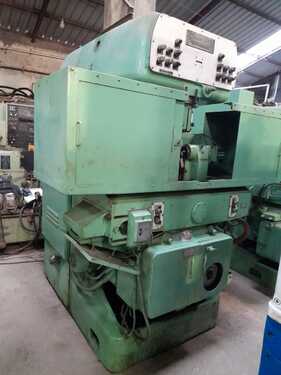

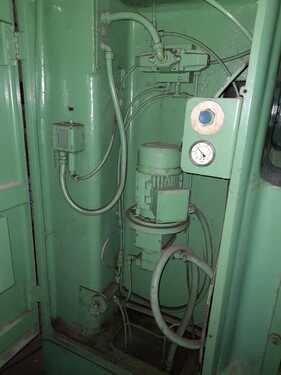

CHURCHILL UNIVERSAL GEAR SHAVING MACHINE GS 16

TECHNICAL INFORMATION :

WORK
Maximum O. D. 420mm.
Pitch 4 To 16 D. P. 6 To 1.75 Module

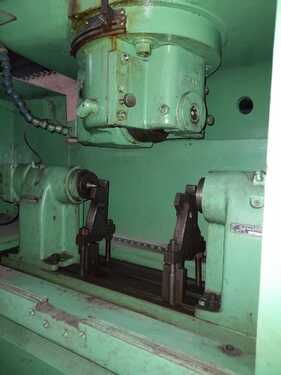

MACHINE CAPACITIES
Maximum Length Between Centres
With Standard Fixed Headstock And
Hydraulic Tailstock *18” *457 MM
Maximum Table Traverse At O⁰ 4” 100 MM
At 90” 1.5” 28 MM
Cutter Centre To Work Centre min. 4.5” 114.3 mm
max. 12.5” 317.5 mm
Cutter Speeds 61 To 222 R. P.M. In 14 Steps (With 9” Cutter Head)
Table Feed Rates .623” (15.8 mm) to 6.37” (162 mm)

*this capacity can be increased to accommodate long shaft components

CUTTERS
Maximum outside diameter 9.625” 244 mm. (for 9” Cutter Head)
Maximum outside diameter 12.5” 518 mm. ( for 12” Cutter Head)
Bore diameter 2.5” 63.5 mm.

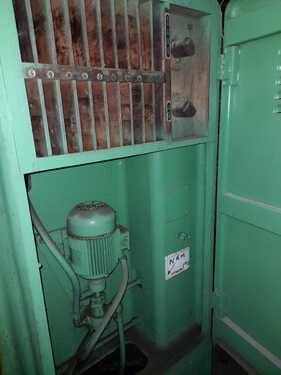

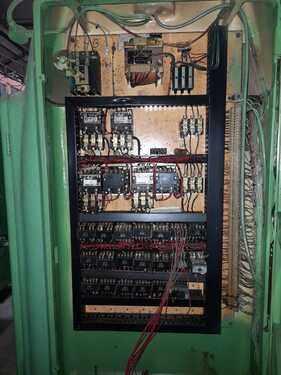

MOTORS
Main drive 3.5 H. P. x 4,450 r.p.m.
Knee 0.66 H. P. x 940 r.p.m.
Hydraulic 0.50 H. P. x 3,000 r.p.m.
Coolant pump 0.66 H. P. x 1,000 r.p.m.
Clarifier manga drum magnetic type

OVERALL DIMENSIONS
Length 83”(2,108 cm.)
Width 65”(1,611 cm.)
Height 86 ½ “(2,198 cm.)
Weight 9,300 lbs.(4,218 Kg.)
