Machine Id: 1187 Serial No:
Model: UBE 1650 Asking Price: onrequest
Make: UBE Country:
Year: 0 Weight: 0.0
Dimensions: Location:
Power:
Category: Pressure Die Casting Machines (PDC)
Type of Machine: Pressure Die Casting Machine
Specification

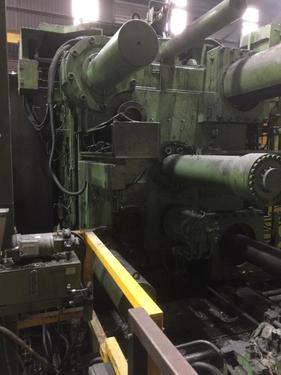

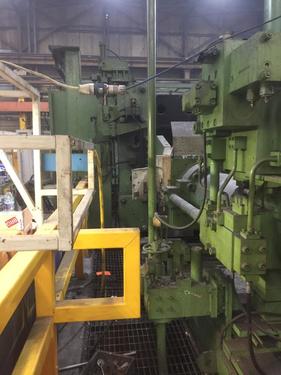

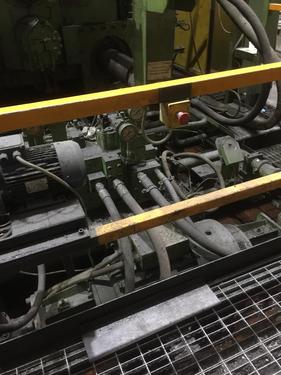

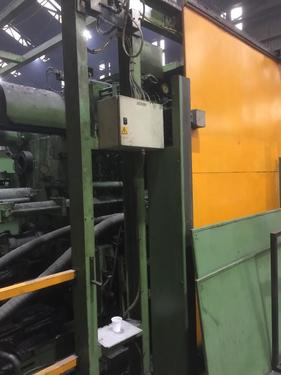

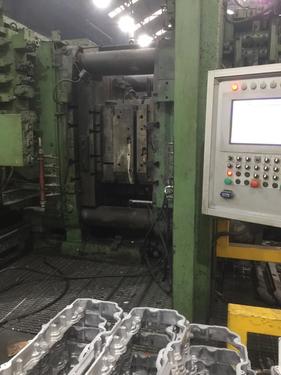

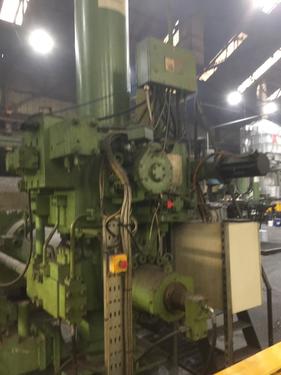

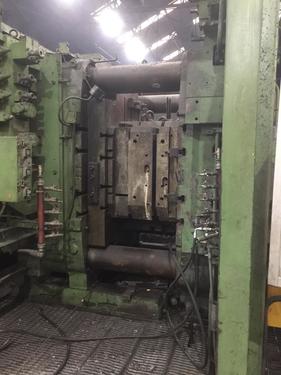

MODEL UBE 1650 - FULLY AUTOMATED WITH LADLE,

SPRAYER, EXTRACTOR ROBOTS

AUTOMATION AND UPGRADES

SPECIFICATIONS:

METRIC / U.S. STANDARD
LOCKING FORCE: 1650 TONS / 1815 TONS
TIE BAR DIAMETER: 250 MM / 9.84 INCHES
TIE BAR CLEARANCE (VERTICALXHORIZONTAL): 1500 X 1300 MM/56 X 51 INCHES
DIE THICKNESS (MINIMUM - MAXIMUM): 800 - 1700 MM / 31.5 - 66.93 INCHES
DIE STROKE (MINIMUM - MAXIMUM): 1100 MM / 43 INCHES
MOVING PLATEN SIZE: 2260 X 2060 MM / 88.98 X 81 INCHES
SHOT POSITION: -350 MM / -13.78 INCHES
SHOT INJECTION STROKE: 1120 MM / 44 INCHES
EJECTION FORCE 80 TONS / 88 TONS
POWER: AC 480 V, 60 HZ / AC 480 V, 60 HZ
MACHINE SIZE (INCLUDES AUTOMATION): 15.97 X 13.35 X 7.23 METERS / 52.3 X 43.8 X 23.71 FEET
MACHINE WEIGHT: 120,000 KG / 264,554 POUNDS
FEATURES & ACCESSORIES:
CENTRAL ELECTRIC MOTORIZED DIE HEIGHT ADJUSTMENT
FIVE CORE CIRCUITS - FOUR ON MOVING PLATEN, ONE ON FIXED PLATEN
FANUC AUTO-LADLE, UBE DIE SPRAYER, EXTRACTOR, FANUC TRIMMING
ROBOT
UBE POWER DIE CARRIER - MOVING AND STATIONARY PLATENS
UBE AUTOMATED SHUTTLE BED TRIM PRESS

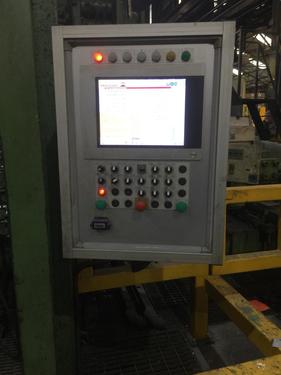

UPGRADES TO MACHINE - LINKAGE, CONTROLS, INJECTION UNIT
