For Higher Precision
Positioning accuracy (+,-)0.01 mm(0.0004 inch) full stroke (standard) (+,-)0.OO5 mm (0.0002 inch)full stroke (scale feedback) Repeatability (+,-)0.003 mm (0.00012 inch)(standard)(+,-)0.0015 mm (0.00006 inch)(scale feedback)

Boring diameter repeatability (+,-) 0.003 mm (0.000012 inch) bore
Table indexing accuracy (+,-)3 sec per 360
Pallet positioning and repeatability
(+,-)0.01 mm(0.0004 inch)(for X-, Y- and Z-axes)

For Better Machining Efficiency
Spindle output  AC 11 kW (15 HP) (High power type- AC 1S kW (20 HP) 30 min.)

Spindle speed 10- 4000 rpm (S4 digit direct command) (High speed type- 10- 7000 rpm, Spindle nose NT-40)

Maximum workpiece dimensions  630 x 500 x 525 mm (25 x 20 x 20-3/4 inch)

Automatic indexing angle 360 planes in increments of 1
Rapid traverse 12 m per min (480 ipm)
Tool-to-tool time Approx. 3 sec.
Metal-to-metal time Approx. 9 sec.
Table indexing time 4 sec. for 90 ; 5.5 sec. for 180
Maximum workpiece weight 700 Kg (1540 Ibs)
Number of tools 30 (40*,60*,99*, 120*)
Pallet Change time Approx. 40 sec.

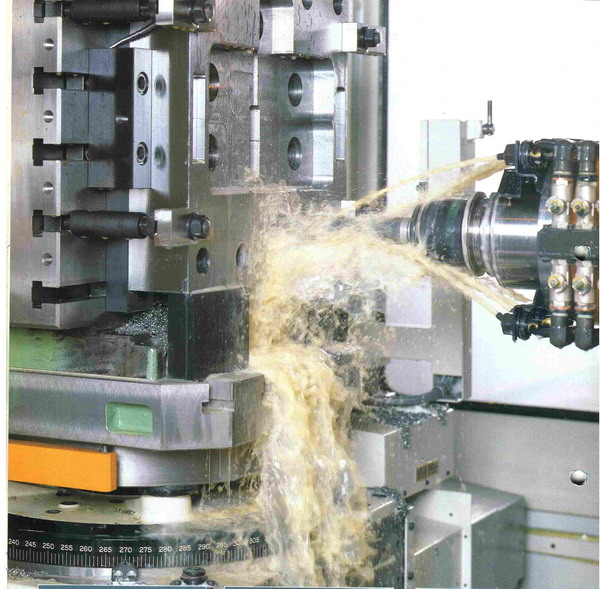

THRU SPINDLE COOLANT
Table and Pallet
Table type -Pallet mounting type
Indexing angle -360 planes, in increments of 10
Pallet dimensions- 500 x 500 mm & 20 X 20 INCH
Width and number of T-slots on pallet-18MM X 5 & 11/16 inch x 5
Allowable load. on pallet - 700 kg & 1540 Ibs
WorkPiece positioning-Edge locator system

Range of Movement
Table longitudinal (X-axis) -630 mm  & 25 Inch
Spindle vertical (Y-axis)- 525 mm & 20-3/4inch
Table cross (Z-axis) - 500 mm & 20 inch
Spindle center to table top -60-585 mm & 2-1/4-23 inch
Spindle nose to pallet center- 150-650mm & 6-26 inch

Spindle
Spindle nose- 7/24 taper No. 50 40  50
Spindle speed- 10 - 4000rpm 7000  15000
Spindle speed change- Stepless
Spindle drive motor- AC11 kw (15kw)

Feed Rate
Cutting feed -0.1-4000 mm/min 0.0004-157.4ipm
Rapid traverse-12M/MIN 480ipm
Least input increment- 0.001mm   0.00004 inch

ATC
Number of tools- 40
Tool selection system- Bi-directional Random
Tool shank - MAS403-BT50 (SK shank or V-flange)
Automatically changeable tools
Maximum tool length - 400 mm   16 inch
Maximum tool weight (with shank) - 15kg   33lbs
Power Supply - 38kVA
Machine Weight - approx 7500kg 16500lbs
