Standard chuck size 152mm

Max Machining Diameter 100mm

Max longitudinal travel 225mm / Workpiece length 80mm

Max cross travel (o.d.cutting tool) 270mm

pindle Nose A2-5, Spindle inside taper 1/20 taper, Hole thru spindle dia 43mm

Spindle front bearing I.D.dia80mm, Height from floor to turret center line 906mm

Spindle Speed 40-4000rpm, 60-6000rpm(option)

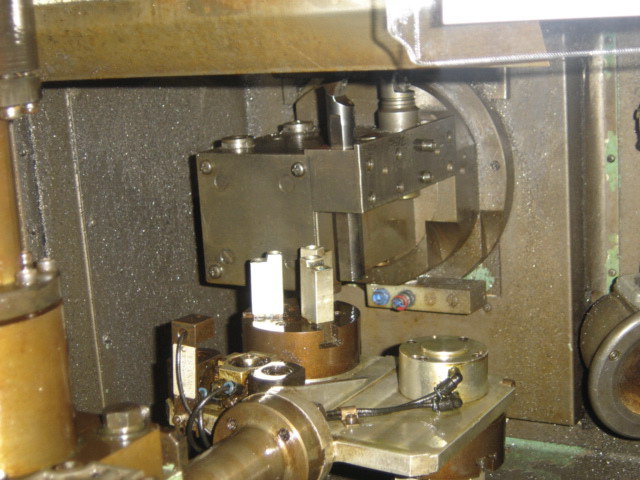

Turret tool positions 16(4 stations X 4 tools), Standard cutting tool size dia25mm

Turret curvic coupling diameter 180mm, clamping force 2200kg

Feed X-axis ball screws diameter 28mm /pitch P6

Feed Z-axis ball screws diameter 36mm /pitch P6

Feed X-axis drive motor F: 0.6kw Y:0.4kw

Feed Z-axis drive motor F: 0.9kw Y:0.8kw

Main motor AC 5.5kw/3.7kw (30-minute rating / continuous)
