Machines » Jig Grinders »  number 2
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite

Excellent Machine

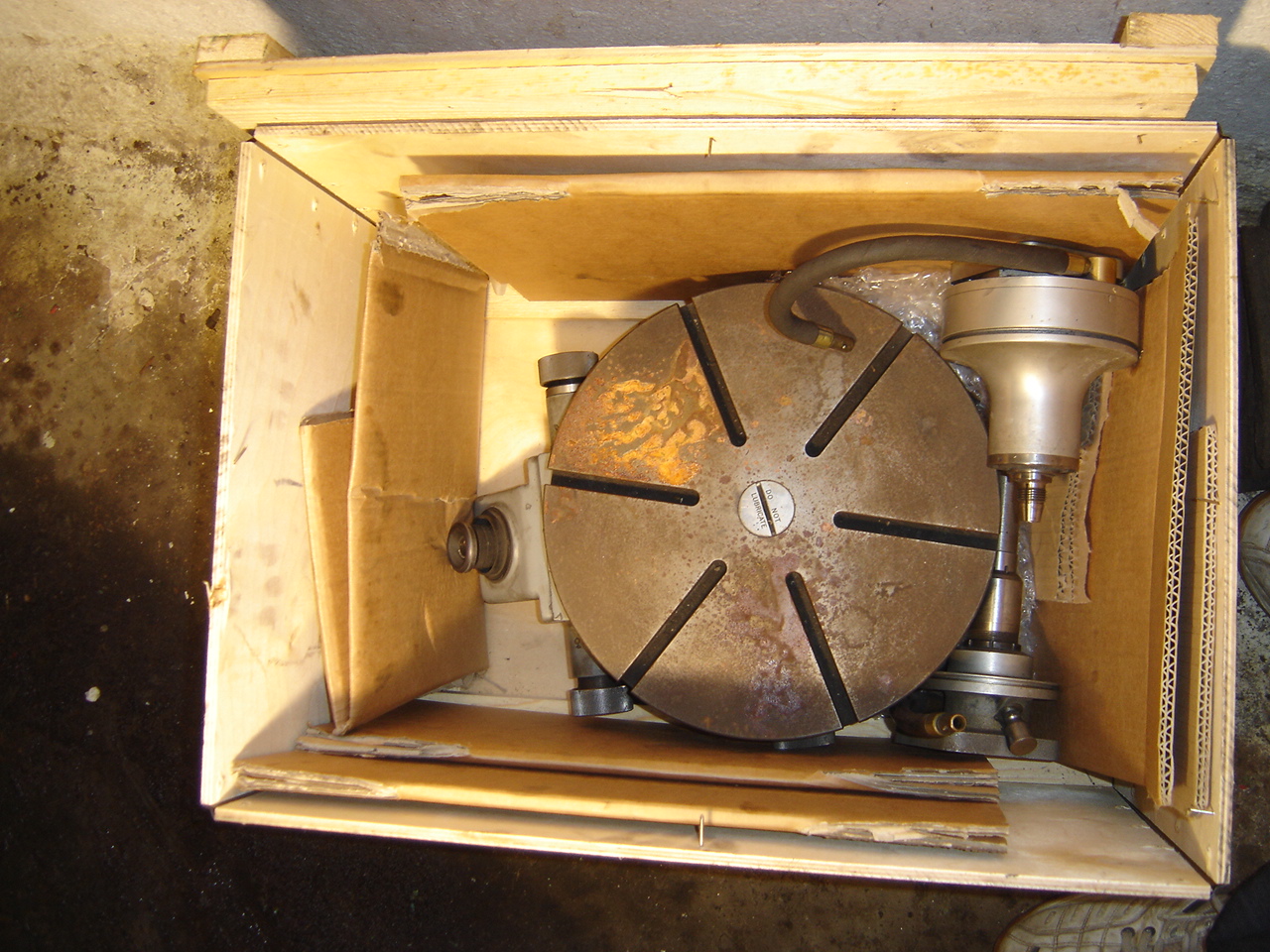

Heavily Equipped with Rotary Table
Grinding Heads etc

Product Gallery :

Enlargeable Images : DOWNLOAD PHOTO/ZIP

Video :

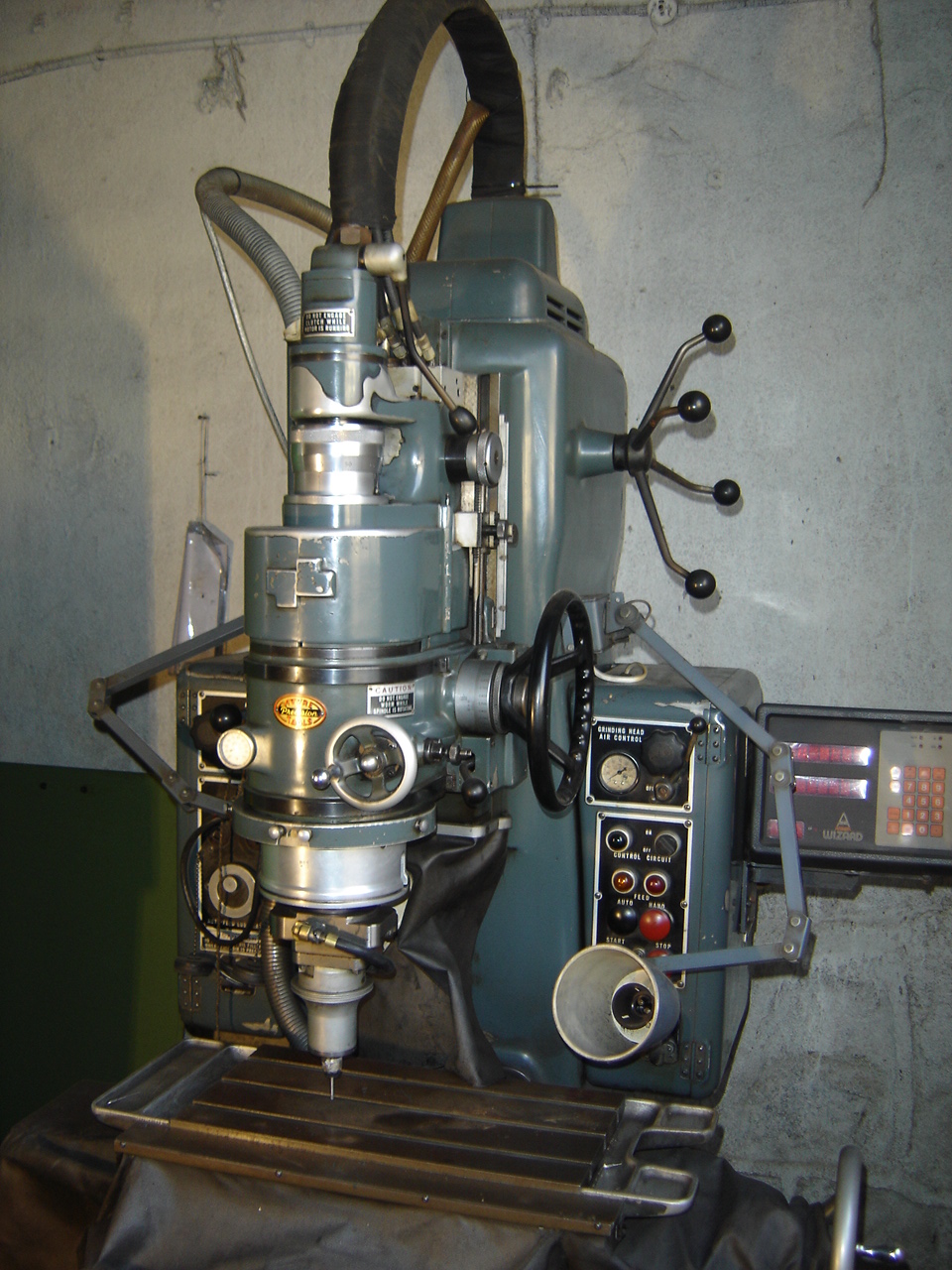

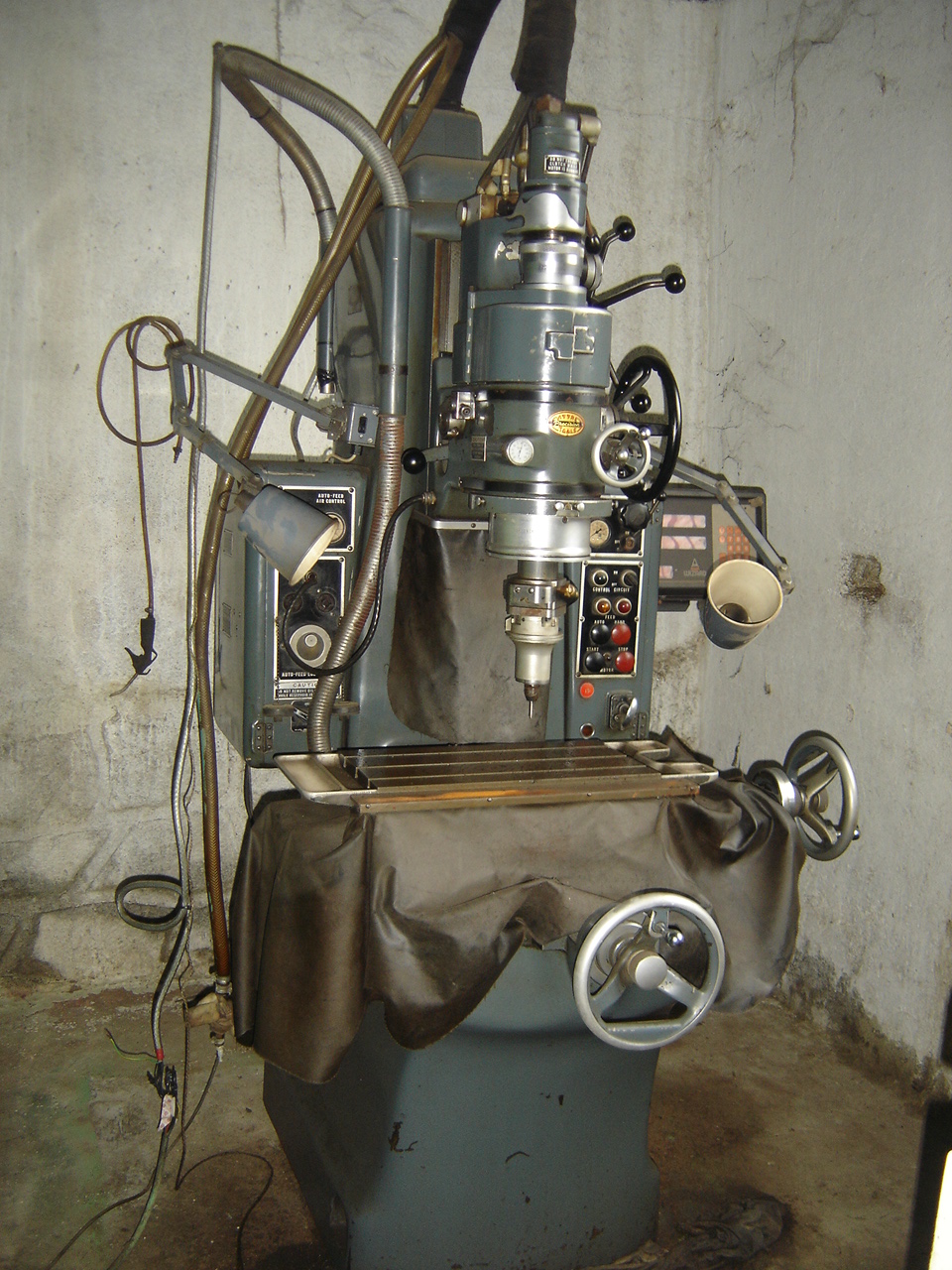

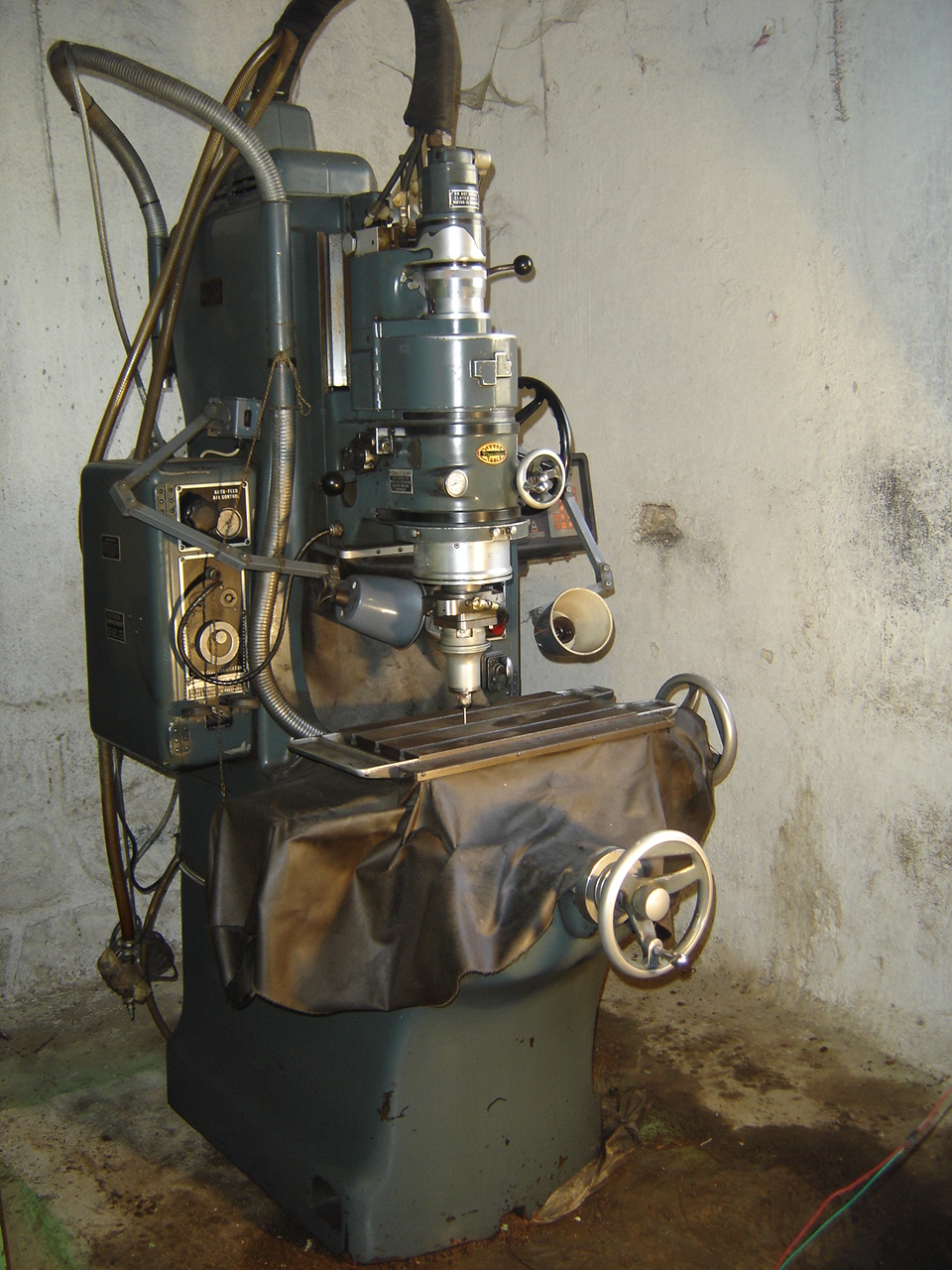

Machine Id : 190
Model : number 2
Make : moore
Year : 1980
Dimensions : 58.5 " x 57.5 " x 91 "
Power :
Location : Mumbai Warehouse, India
Category : Jig Grinders
Serial No : 2406
Country : United States
Type of Machine : used jig grinding machine
Weight : 0.0
Asking Price : onrequest

Specification :

Table Size  : 11" x 24"

Table Travel, longitudinal : 18"

Table Travel, cross  : 11"

Spindle Housing Vertical Travel : 12.62"

Spindle Vertical Travel  : 3.62"

Table Top to Wheel Collet  : 2" - 18"

Spindle to Column Ways  : 13.5"

Main Spindle Speeds (variable)  : 25-225 rpm

Spindle Feeds (variable)  : 2 - 210 cycles/min

Grinding Diameter Capacity  : 0.015" - 3.5"

Max.Angular Adjustment of Spindle : 1.5 deg

Description :

Machine is equipped with push button controls, Way covers, Moore cabinet,DRO
