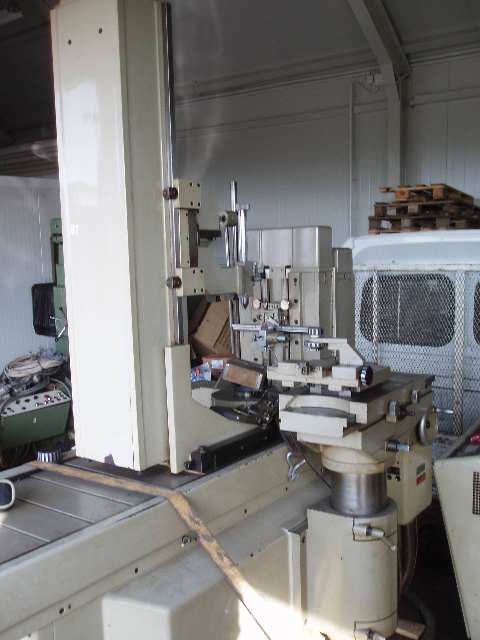

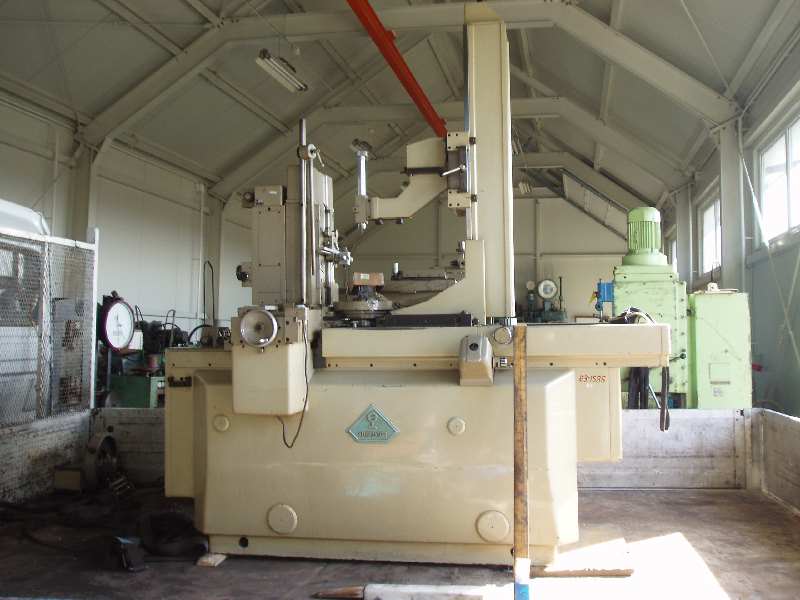

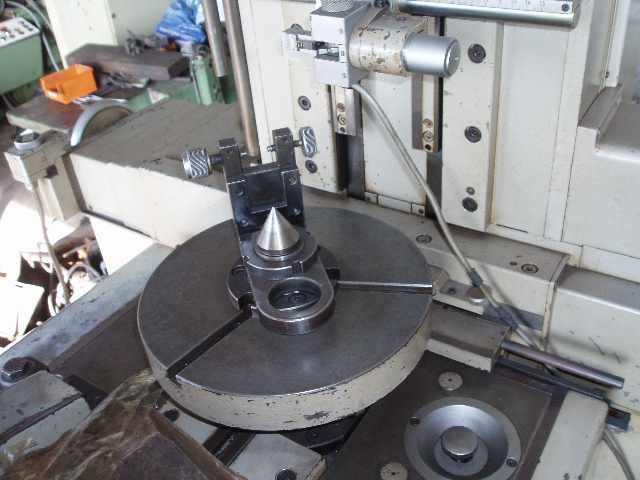

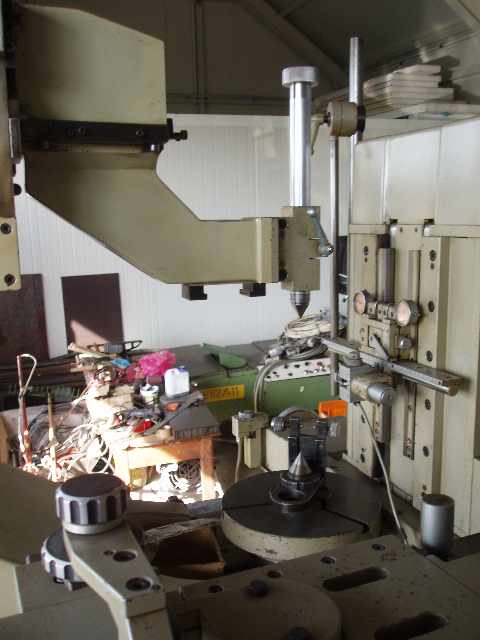

The Machine is suitable for use on gear cutting and measuring machines for checking the
following

Tooth to tooth pitch errors, spacing errors, accumulated pitch errors, pitch span
variations. Working range model 1 to 40 mm, max. gear diameter  unlimited.

Technical details

max. wheel diameter 1200 mm

gear width 300 mm

max. module 25

min. module 0.1

base circle dia.max.1200 mm

base circle dia. min.150 mm

specimen weight from to 4000 kg

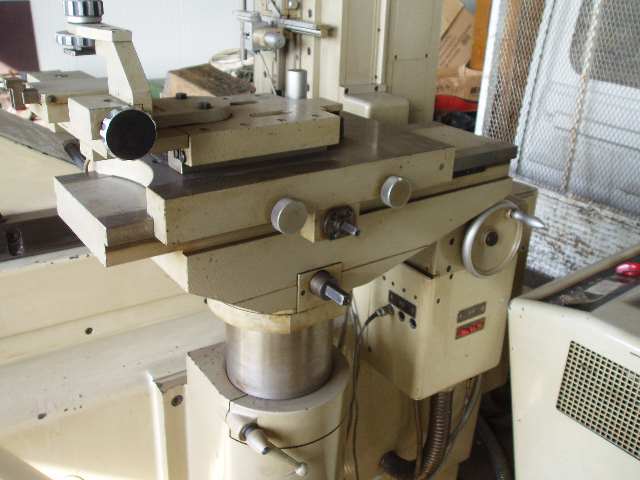

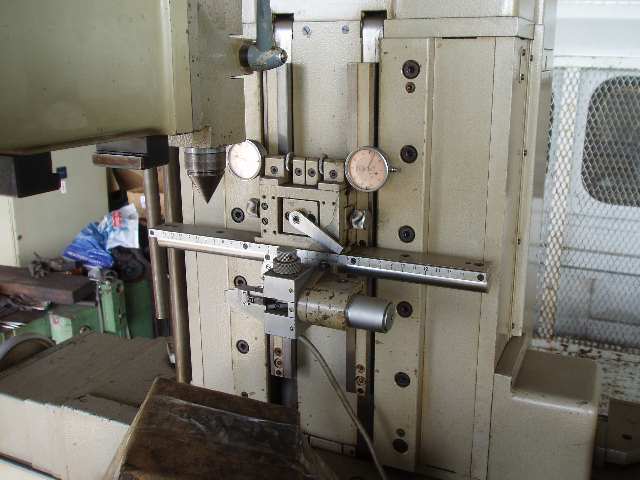

feeler adjustment movement parallel 1100 mm

dist. between centers 1150 mm

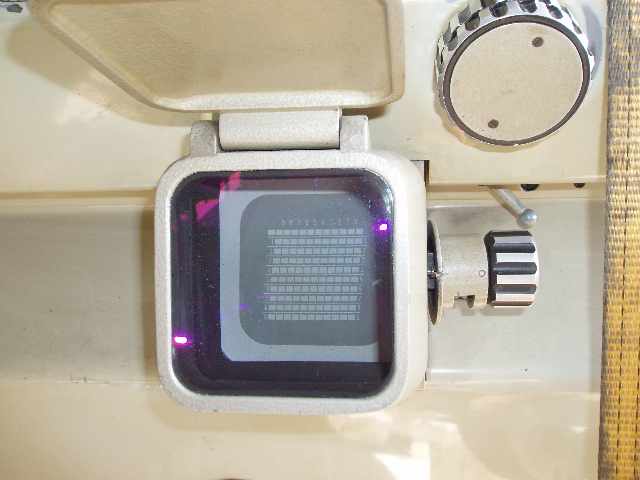

diagram drawing enlargement 100/2000 : 1

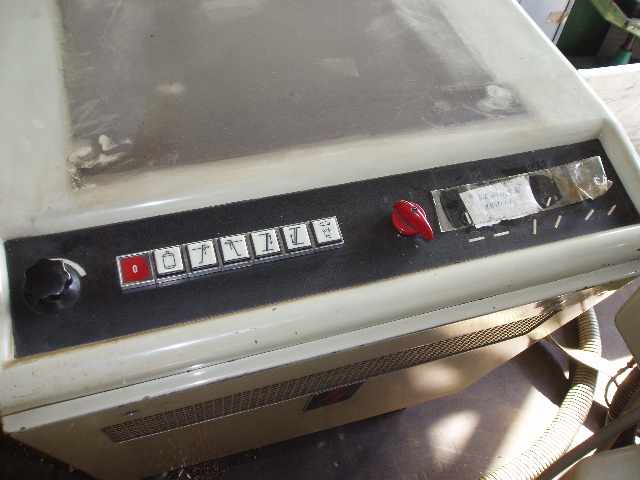

electrics voltage/frequency 380 / 50 V/Hz

max.helical angle 0-90

wheel diameter with counterstay 900 mm

base circle dia. max. 1150 mm

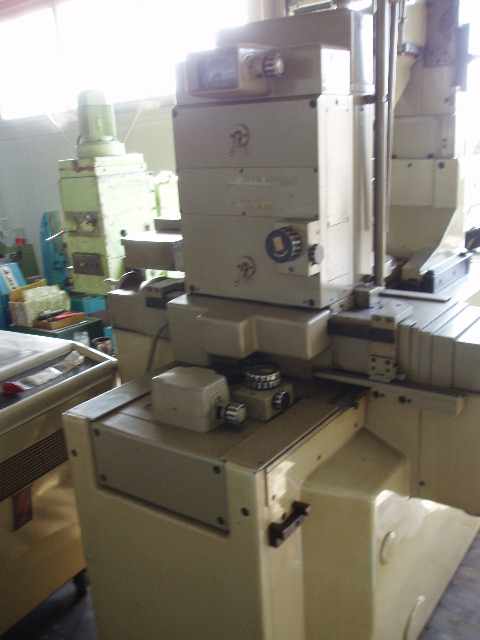

dimensions of the machine ca. 1.8 x 1.1 x 2.3 m

total power requirement 1.7 kW

weight of the machine ca. 3.0 t
