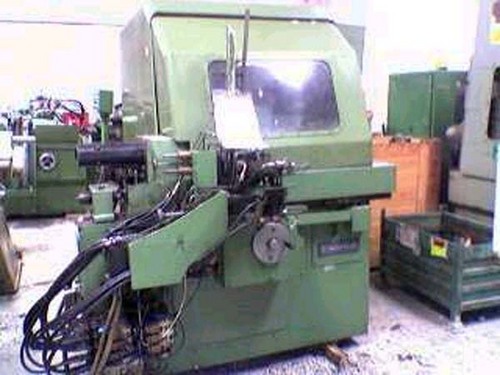

Machines » Tapp Grinder & Flute Grinders »  7904
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite
Excellent Condition
Product Gallery :
Enlargeable Images :
Image  Image  Image  Image  Image  Image  Image  Image
Machine Id : 280
Model : 7904
Make : matrix
Year : 0
Dimensions :
Power : Workhead Motor 1.5KW & Grinding wheel motor 4.5
Location : Mumbai Warehouse,India
Category : Tapp Grinder & Flute Grinders
Serial No :
Country : Wales
Type of Machine : tapp grinders
Weight : 0.0
Asking Price : oncall

Specification :

High Speed one way automatic cycle grinder for taps from M2 to M16

Maximum Diameter admitted 16mm

Maximum length between centres : 100mm

Maximum thread length ground 76mm

No. of flutes ground 4 Forward work speeds 60 to 1000 RPM

Rapid Infeed movement : 25mm

Grinding Wheel Size : 460mm diameterx19mm widthx230mm bore

Description :



Largest Tap Manual Load M25

Largest Tap Automatic Load M16

Smallest Tap M3

Maximum Grinding Length 80mm

Maximum Length of Tap 160 mm (between Centres)

Maximum length of Tap Automatic Laod 110mm

Minimum Length of Tap 35 mm

Maximum Pitch 3 mm

Minimum Pitch 0.5mm

Relief 0.01 mm -0.075 mm

Maximum No of flutes 6

Spiral Flutes  Max  450 RH or LH



Grinding Wheel Motor 7.5 kw

Maximum Grinding Wheel Diameter 450 mm

Minimum Grinding Wheel Diameter 350 mm

Maximum Grinding Speed 65m/sec infinitely variable

Total Infeed 1.5 mm

Maximum No of infeed steps 9

Highest relief frequency 4000/min

Maximum work Speed 1000 rev/ min infinitely variable
