Diameter 18 to 220 mm.

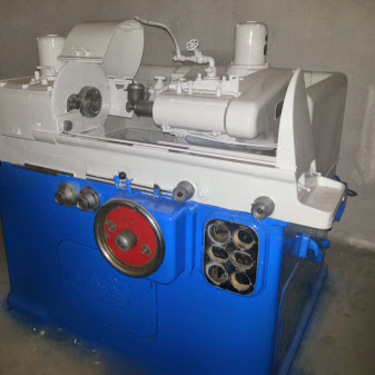

Machine Is heavly Equipped With Cams

24L multi ribbed wheel dresser ,

Multi   Ribbed  Crusher.

Maximum size admitted over table : 305mmx250mm long

Maximum size admitted in gap 355mmx35mm long

Maximum length ground 127mm

maximum pitch recommended 25mm

minimum pitch 0,4mm

maximum included taper 1 in 8

workhead speeds forward 1.3 to 19rpm

workhead speed fast approach 100rpm

Cam List

20 T.P.I FOR 40 T.P.I - 1 No.

20 T.P.I. FOR 005 Inch - 1 no.

40 T.P.I. FOR 80 T.P.I - 1 no.

1 MM  - 1 no.

1 MM FOR 0.5MM    - 1 no.

0.5 MM  FOR 0.25MM - 1 no.

0.5MM - 1 No.

0.635 MM - 1 No.
