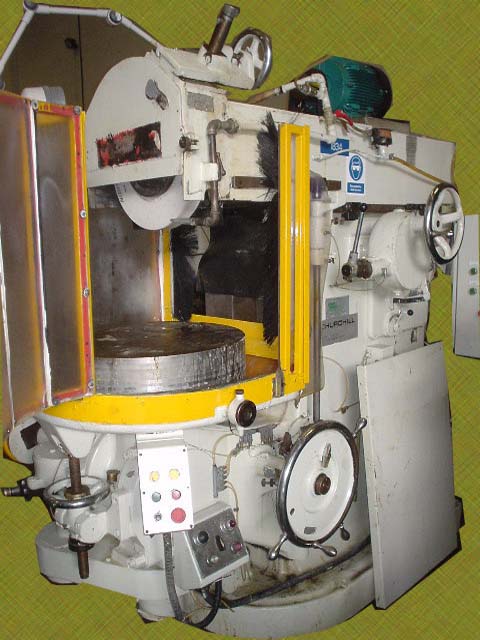

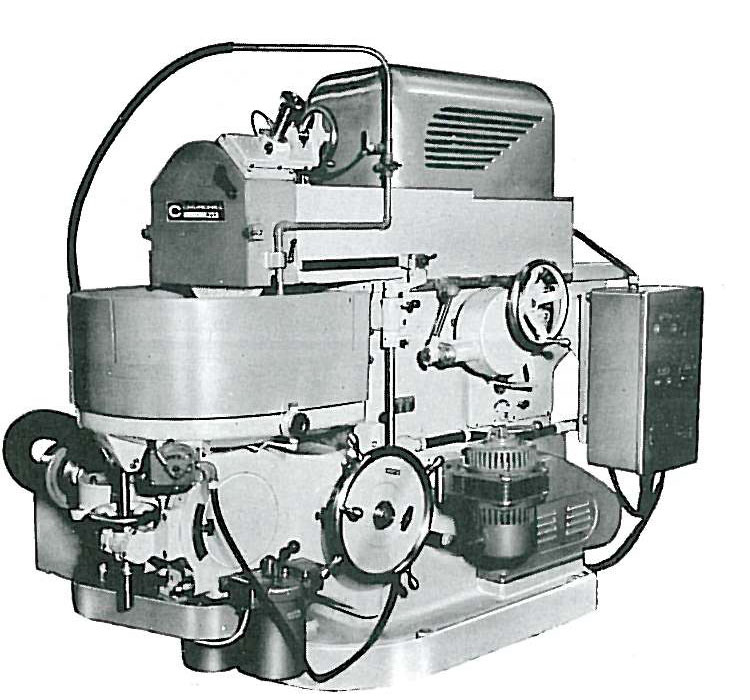

Machines » Rotary Table Surface Grinder » rby- 24 (Ex Rolls Royce Machinne)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model |
: |
rby- 24 (Ex Rolls Royce Machinne) |
|
|
|
|
|
| Dimensions |
: |
not available |
|
|
|
| Location |
: |
Mumbai warehouse |
|
|
 |
| Category |
: |
Rotary Table Surface Grinder |
|
| Serial No |
: |
not available |
|
|
|
| Type of Machine |
: |

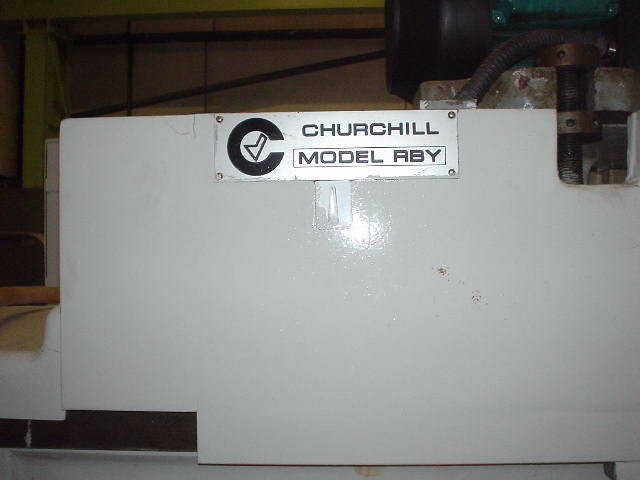

ring grinder type rby |
|
|
|
|
|
|
|
|
|
|
| Specification : |
Nominal size of Machine: 24" x 13"

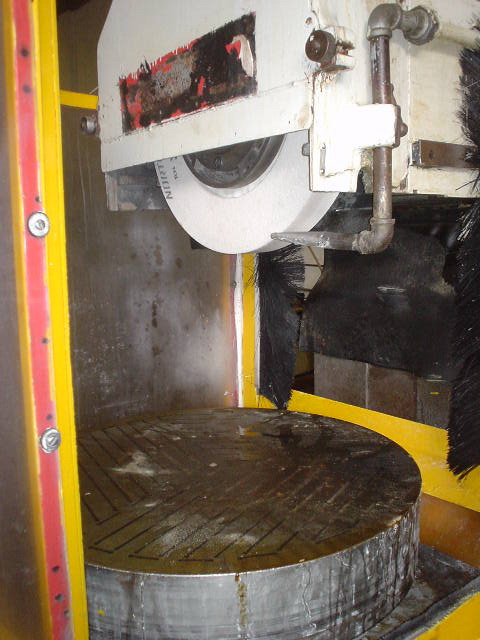

Diameter of magnetic chuck: 24"
Maximum height admitted under full size grinding wheel : 13"
Max. Vertical adjustemnt of chuck : 17"
Hand operated vertical feed movement One revolution of handwheel : 0.055"
One Division of handwheel : 0.0005"
Automatic vertical feed movement One tooth of ratchet wheel: 0.00025"
Chuck rotation speesds (rev/min.) : 23 to 102
*Size of standard grining wheel (Diameter X Width X Hole): 18" x 2"x 8"
Wheelhead traverse speeds (hydraulically variable) per min.: upto 108"
Motor for grining wheel spindle drive : 10 H.P.
Motor for Wheelhead traverse drive : 2 H.P.
Approx net Weight : 4.5tons |
|
|
| Description : |
|

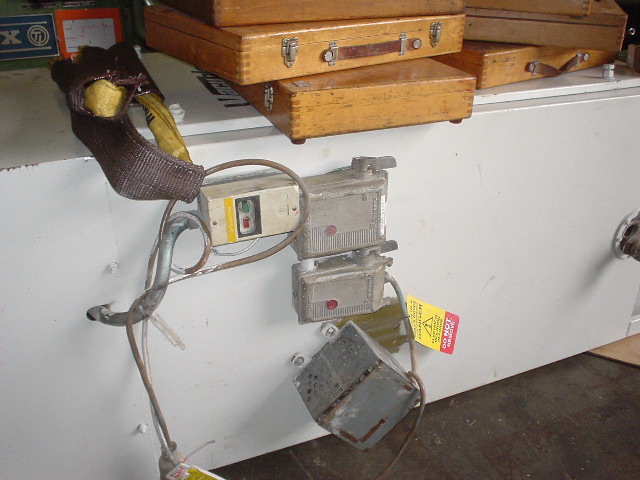

Machine is complete with chiller etc.
|
|
|
|
|
