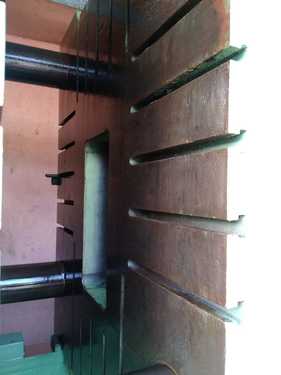

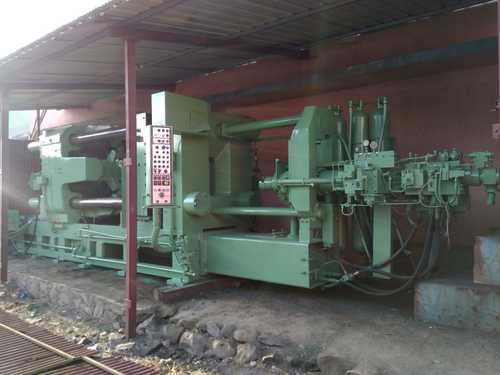

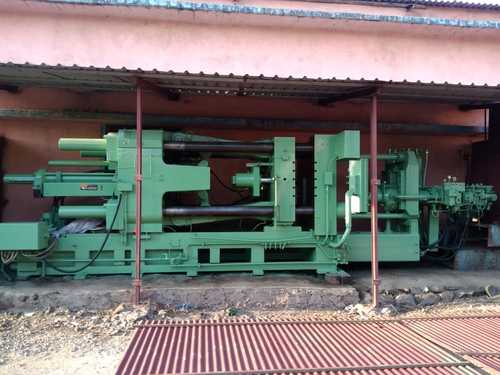

The platen size of Buhler 800B version 6 is bigger than usual.

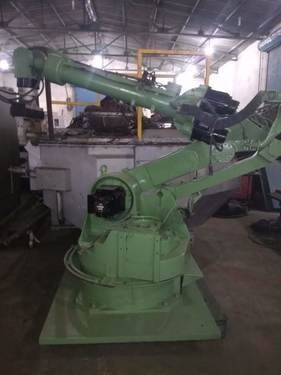

Accessories : Dosing Furnace

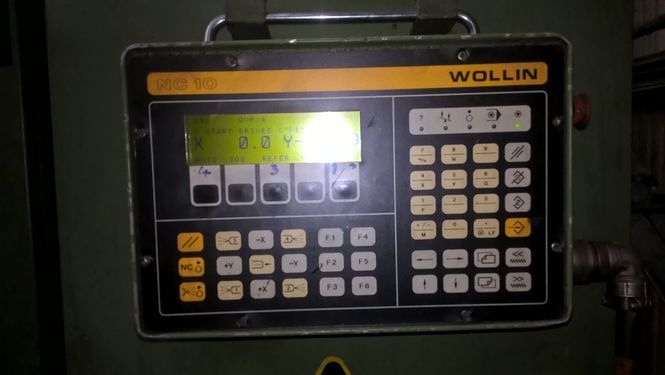

( You don’t needle ladle with this furnace) , Kawasaki Robot and Wollin

YOM 1996 and actual went in production in 1998

Product Gallery :

Enlargeable Images : DOWNLOAD PHOTO/ZIP

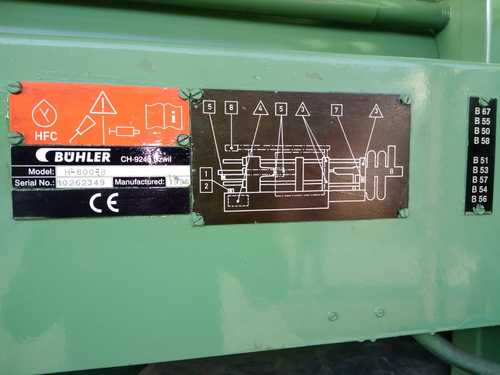

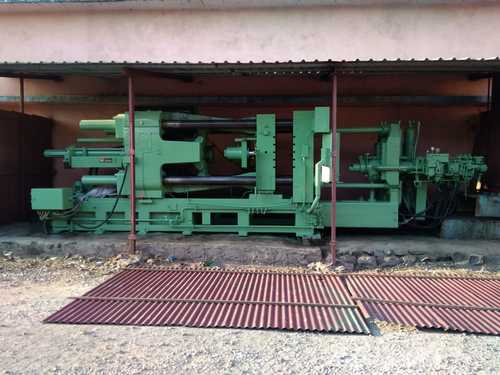

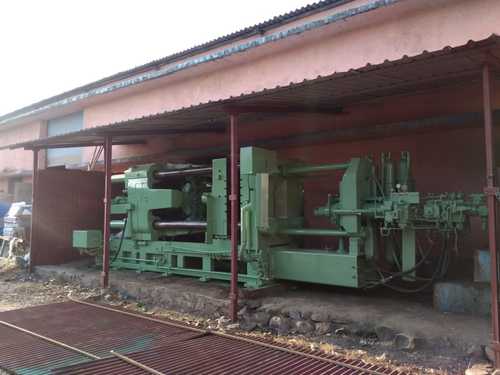

Machine Id : 514
Model : H 800B version 6
Make : Buhler
Year : 1996
Dimensions :
Power :
Location : Mumbai Warehouse, India
Category : Pressure Die Casting Machines (PDC)
Serial No : 102623349
Country : Switzerland

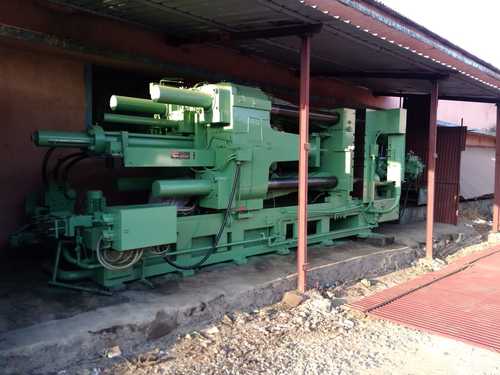

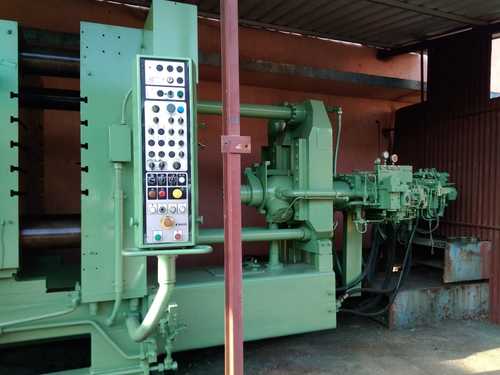

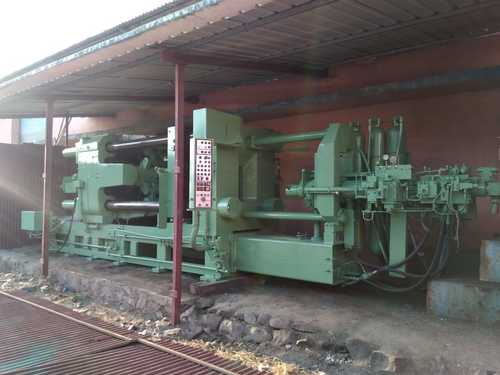

Type of Machine : Horizontal Cold Chamber Pressure Die Casting Machine
Weight : 0.0
Asking Price : onrequest

Specification :



The platen size of Buhler 800B version 6 is bigger than usual.

Accessories : Dosing Furnace

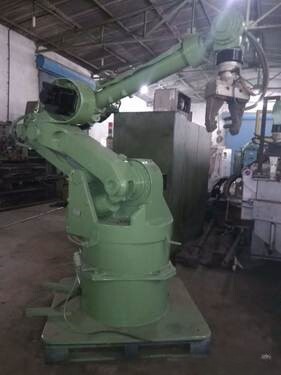

( You don’t needle ladle with this furnace) , Kawasaki Robot and Wollin

YOM 1996 and actual went in production in 1998









TECHNICAL DATA:

Locking Force (Strain Gauge Tested) kn 9200

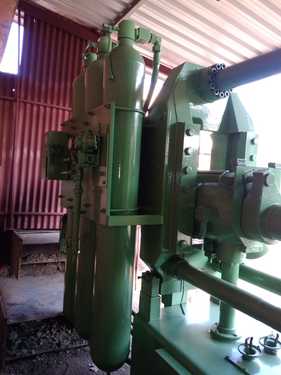

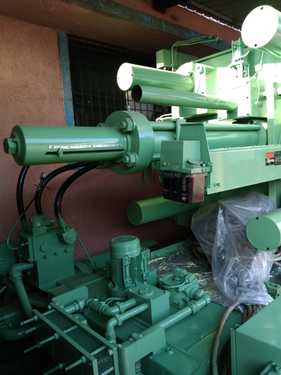

Injection Force, Consolidation Phase (Adjustable) kn 650-265 1)
Plunger Stroke mm 580
Injection Positions (Standard) mm 0, -50, -300, -350
Ejection force kn 340
Ejector stroke (adjustable) mm 175

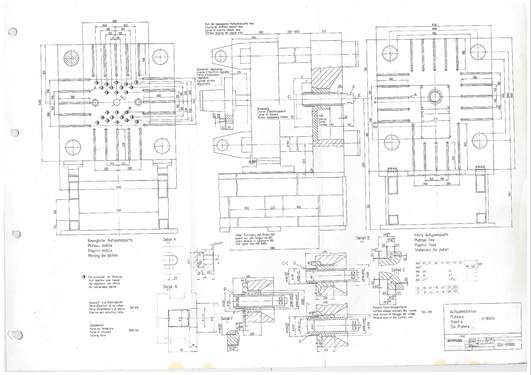

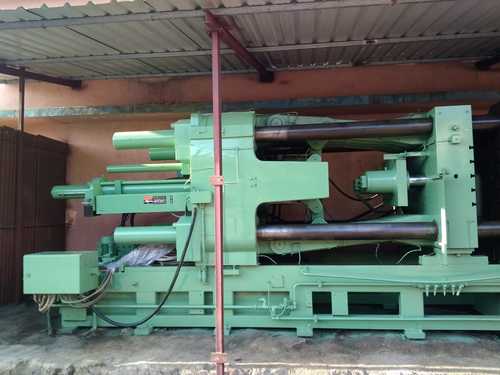

Dimensions of fixed die platen (H X V ) mm 1410 x 1590
Dimensions of moving die platen (H X V ) mm 1410 x 1410
Space between tie bars mm 900 x 900

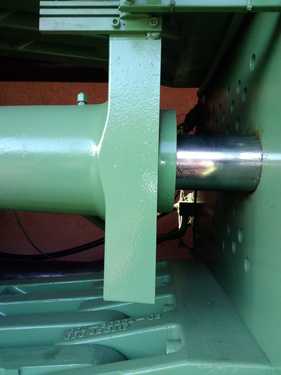

Tie bar diameter mm 180
Min. die height mm 330
Max. die height mm 1050
Stroke of moving platen mm 900
Free cycles per hour n/h 300
Rated installed capacity kw 55
Machine area L X W (incl. safety gates) m 9082 x 3.52
Machine height m 3.3
Machine weight, ready for production kg 40900 ca.

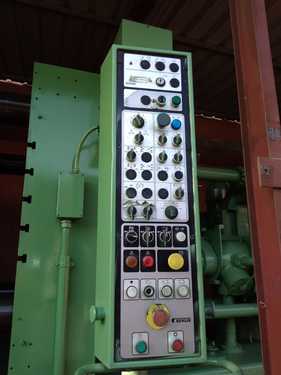

Dimensions of the control cabinet L X W X H (IC) m 1.4 x.4x 1.65

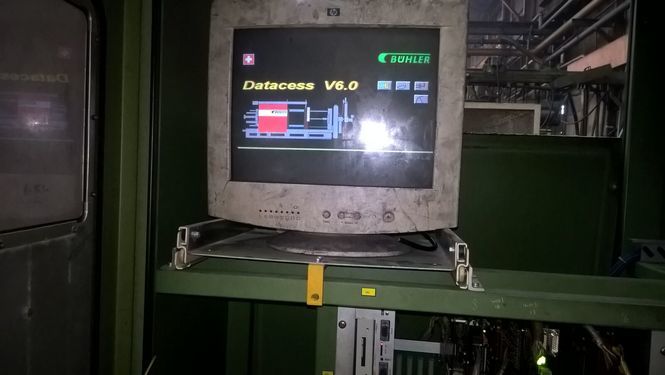

1) AccessoryEequipment: (DATACESS) m 1.2 x .5 x 1.805
     Injection force, consolidation phase (adjustable) kN 800 - 265


PRODUCTION DATE (Standard injection unit)



PLUNGER DIAMETERSMM708090100110120130140
Theoretical shoot volume(DIN 24480)cm314881944246030373674437351325952
Max. shot weight fro A1*kg4.25.56.98.510.312.314.416.7
Max. specific casting pressure bar169012931021828648574489422
Max. projectted area ** at max. specific casting pressurecm254471190111111419160218812180



*The max. shot weight is calculated :
Plunger stroke x plunger area x 0.75 x density
Density for aluminium (A1) =2.5 g/cm3
(Multiply by 0.65 for magnesium alloys, by 2.5 for zinc alloys and by 3.2 for copper base alloys)
**Max. theoretical projected area on max .specific injection pressure, without consideration of core locking and dynamic part of injection process.
