Machines » Steering Rack and Nut Manufacturing » RM 36x
|
|
|
|
|
|
| Product Gallery : |
 1
|
|
|
|
|
|
|
|
|
 |
| Category |
: |
Steering Rack and Nut Manufacturing |
|
|
|
|
|
| Type of Machine |
: |

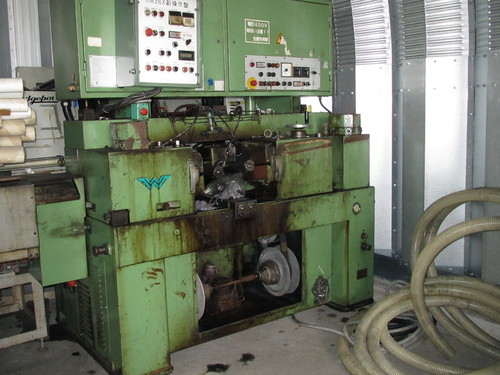

universal heavy duty thread rolling machine |
|
|
|
|
|
|
|
|
|
|
| Specification : |
- Max. pressure 36 T
- Workpiece diameter 3 - 110 mm
- Ajustment speed 0,5 - 6 mm/sec
- Roll spindle speed 25 - 90 RPM
- Roll diameter 218 mm
- Max. length of rolls 190 mm
- Max. length of threading thru-feed approx. 5 000 mm
- Height of roll spindles above bed 200 mm
- Distance min./max. between roll spindles 125 - 270 mm
- Inclination of roll spindles +/- 10 �
- Max. pitch 10 mm
- Roll spindle diameter 69,85 mm
- Total power requirement 25 kW
- Weight of the machine approx. 4,7 T
- Dimensions of the machine 2,2 x 1,2 x 2,1 m
|
|
|
|
|
|
|
|
