Machines » Gear Shavers »  ZSA 220
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite

Rebuilt 2014 Machine, Like New.
Under Power

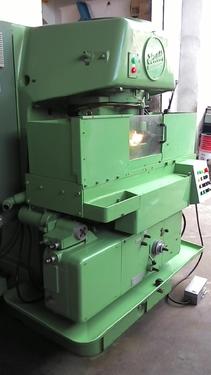

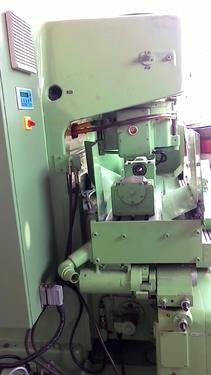

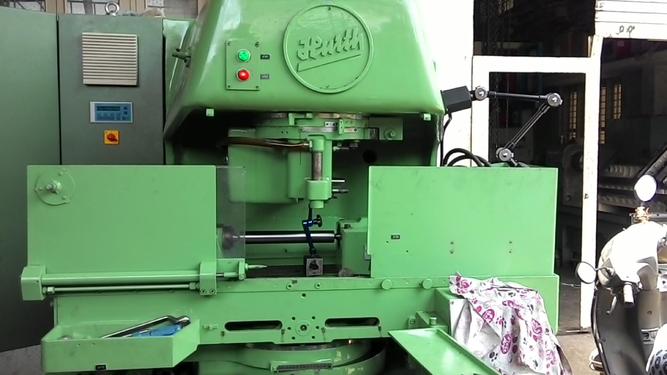

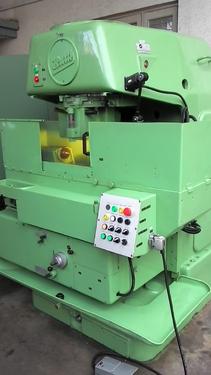

Hurth Machine is ideal for parallel shaving,

cross shaving, and diagonal shaving of unhardened spur gears with straight or helical teeth

Product Gallery :

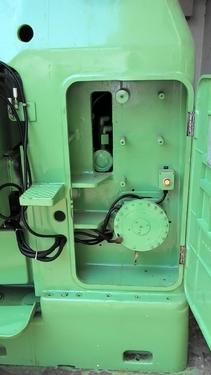

Built-on under table mechanical Crowning Device, also for Taper Shaving
Enlargeable Images : DOWNLOAD PHOTO/ZIP
Built-on under table mechanical Crowning Device, also for Taper Shaving  Semi-automatic Work Process Start by Hydraulic Closing of  the Splash Guards  Parallel Shaving Process / Diagonal Shaving Process / Underpass Shaving Process   Machine is having AC VFD for Spindle Speed and Table traverse speed. ONE can change Spindle speed and Table feed by POT.  Machine is ideal for parallel shaving, cross shaving, and diagonal shaving of unhardened spur gears with straight or helical teeth.    Hydraulic tailstock on the right.         Brand New Power Pack
Video :
Machine Id : 960
Model : ZSA 220
Make : Hurth
Year : 0
Dimensions :
Power :
Location : Mumbai Warehosue, India
Category : Gear Shavers
Serial No :
Country : Germany
Type of Machine : Gear Related Machine
Weight : 0.0
Asking Price : onrequest

Specification :

Rebuilt 2014 Machine, Like New.
Hurth Machine is ideal for parallel shaving,
cross shaving, and diagonal shaving of unhardened spur gears with straight or helical teeth



Centre height of tailstocks                                                              115   mm

Clamping length between centres                                                   750   mm



Gear Ø                                                                                  25 – 220   mm

Module                                                                                         1 - 6

Gear width, max.                                                                           150   mm

Shaving cutter head swivelling                                                    +/- 23°

8 speeds of cutter spindle                                                        36 - 220   rpm

Dimensions of shaving cutter Ø x width x bore       175 – 260 x 20 x 100   mm



Table swivelling                                                                              180   °



Table size, approx.                                                              200 x 1100   mm

Table movement, horizontal                                                            150   mm

Table movement, cross                                                                    20   mm

table movement, vertical                                                                175   mm

automatic Vertical infeed                                                       0,02 – 0,2   mm

8 Horizontal table feeds                                                          14 – 130   mm/min



Total electrical load, approx.                               5.5 kW  -  380 V  -  50   Hz

Weight, approx.                                                                          5,000   kg



Accessories / Special Features:

*        Built-on under table mechanical Crowning Device, also for Taper Shaving

*        Parallel Shaving Process / Diagonal Shaving Process / Underpass Shaving Process

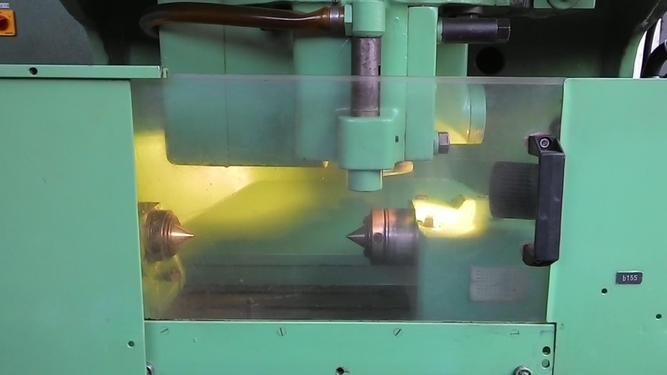

*        Semi-automatic Work Process Start by Hydraulic Closing of  the Splash Guards

*        Hydraulic tailstock on the right.

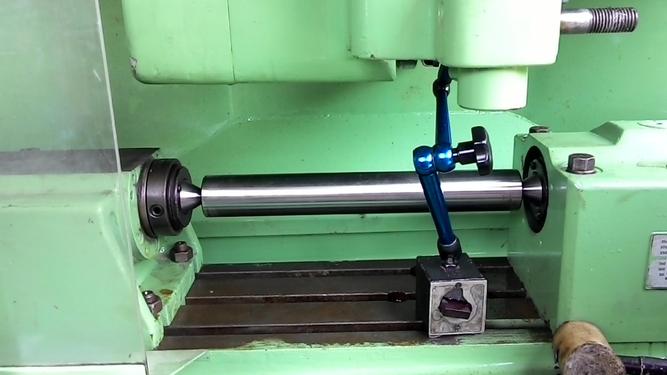

*        Workpiece setting gauge.

*        various change gears for speeds and table stroke.

*        Cooling oil filter unit with pump and built-on centrifuge Model Z 15.

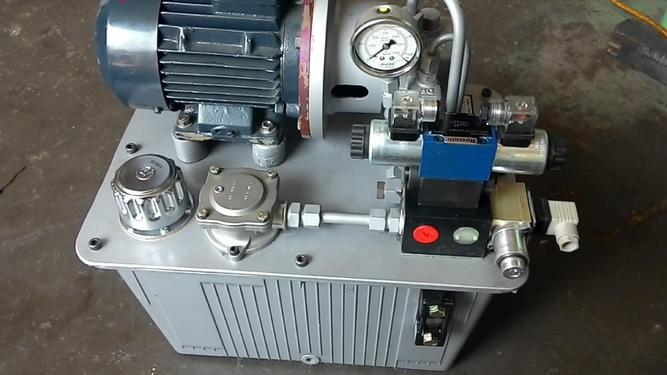

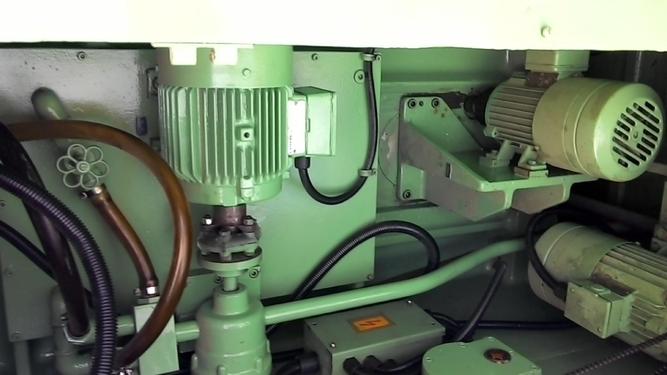

*        Separate hydraulic unit.

*        For and extra charge:  selection of shaving cutters.





Machine is ideal for parallel shaving, cross shaving, and diagonal shaving of unhardened spur gears with straight or helical teeth.

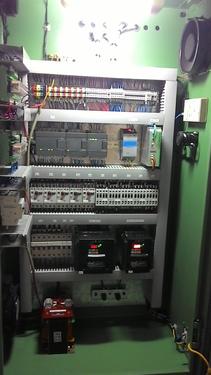

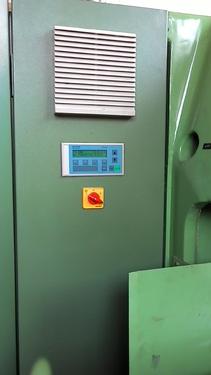

Machine is having AC VFD for Spindle Speed and Table traverse speed.



You can change Spindle speed and Table feed by POT.



For a particular change gears of both drive, Operator can change speed and feed up to certain limit practically it can take load.



This is a feature added to shaver m/c and prepared as an advance shaver machine
