CNC tapp, thread and worm grinders.

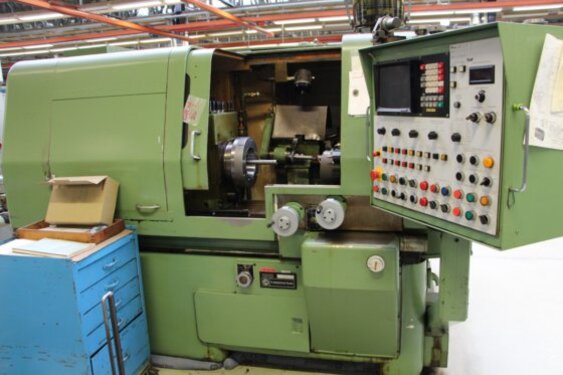

Matrix 6900 CNC Internal High Speed Thread Grinding Machine

CNC High Speed  Internal thread grinding machine

Specification :

Max diameter of bore 250mm

Min diameter of bore 25mm

Max diameter of component 330mm

Max length ground 200mm

Diameter of grinding wheel 13 to 102mm

Grinding wheel speeds lowest 42000rpm

Max number of passes 48

Max depth of in feed 1.27mm

Max side cut 2.54mm

Machine wt 6500kgs
