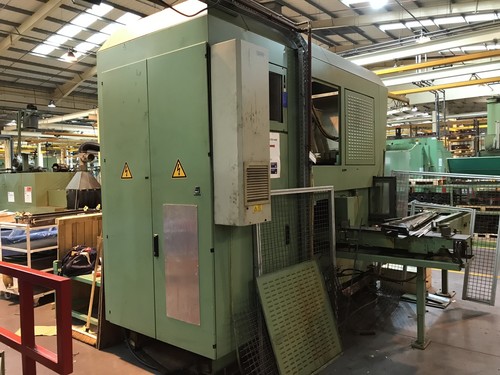

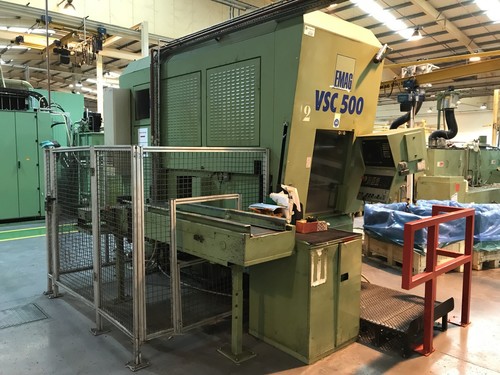

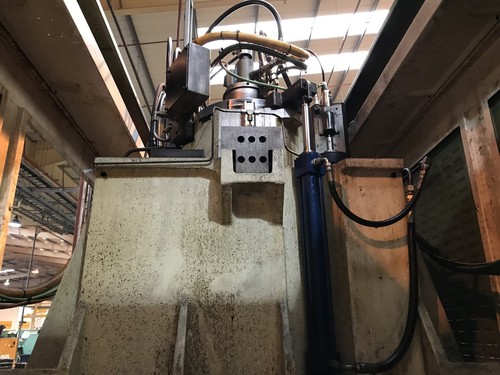

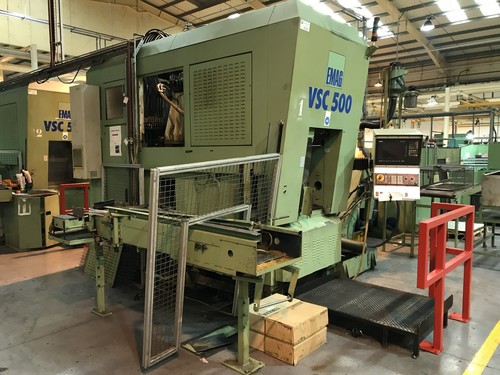

CNC vertical turning machine with an inverted work spindle that traveled the main axes
choice of two similar Machines

Video

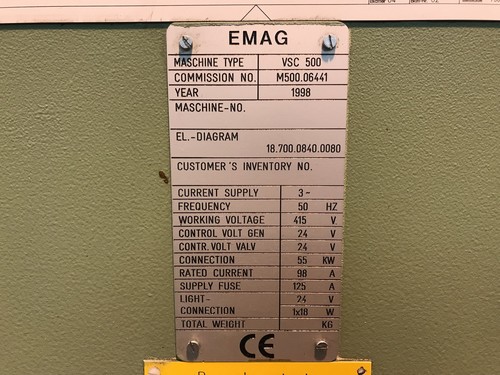

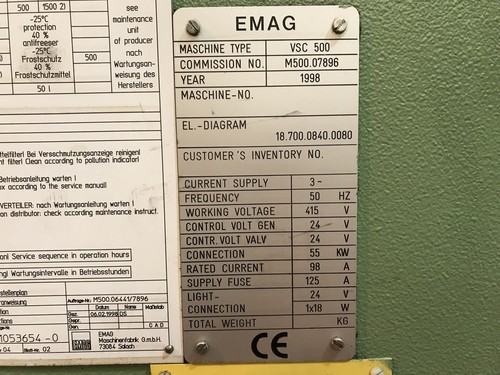

Machine Id: 1121 Serial No: M50007896 AND M50006441 (CHOICE OF TWO MACHINES)

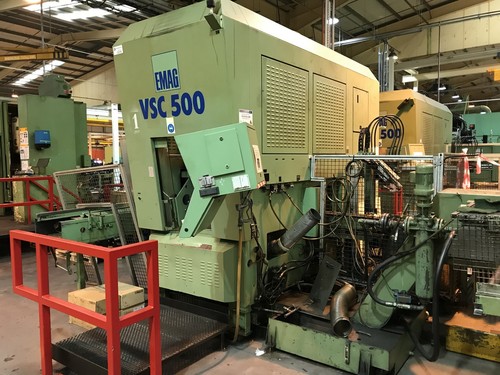

Model: VSC500 Asking Price: onrequest
Make: EMAG Country: Germany
Year: 1998 Weight: 0.0
Dimensions: Location:
Power:
Category: Vertical Turning Lathe (VTL) All Types Conventional & Cnc
Type of Machine: CNC vertical turning machine with an inverted work spindle that traveled the main axes
Specification

Caracteristics


- Max. turning Ø : 520 [mm]
- Strokes (X/Z) : 1000 / 400 [mm]
- Max. push on X and Z : 1100 [daN]
- Quick feeds (X/Z) : 45 / 30 [m/min]
- Ball screw diameter (X/Z) : 50 [mm]
- Spindle nose : A2-11
- Spindle motor power : 71 [kW]
- Spindle speed : 0 - 3400 [Rpm]
- Max. chuck torque : 750 [Nm]

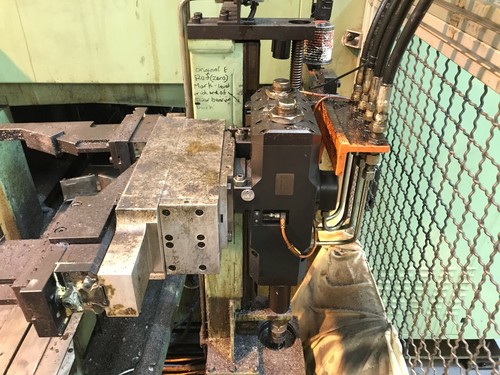

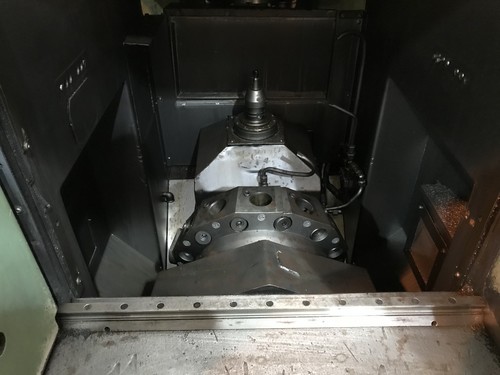

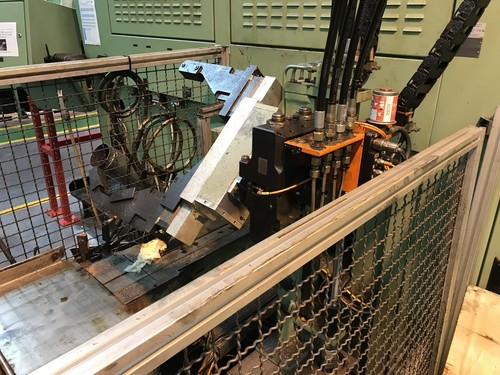

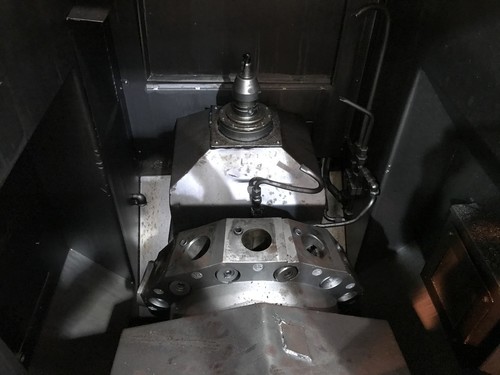

- Number of positions on turret : 12
- Number of motorized positions : 12
- Tool-holder type : VDI50
- Machine alone dimensions : 4.050 x 1.960 [mm]
- Installation dimensions : 8.500 x 5.000 [mm]
- Machine weight : 13.500 [kg]
- Installed power : 45 [kW]
- Electric supply : 400 V, 50 Hz

Equipment

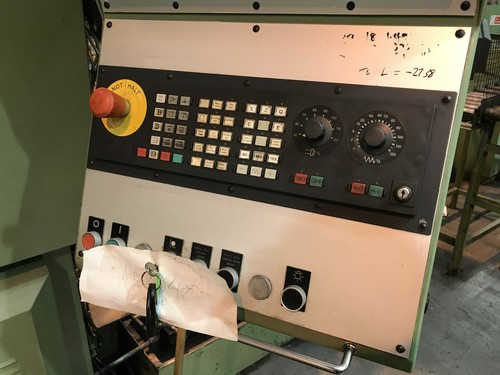

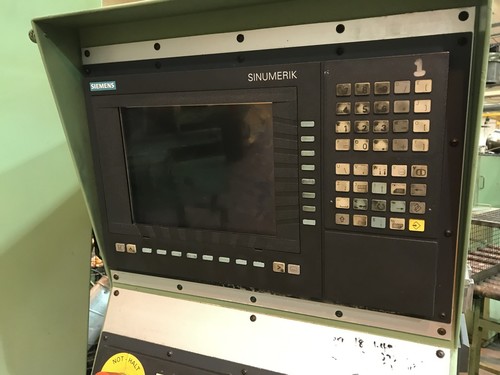

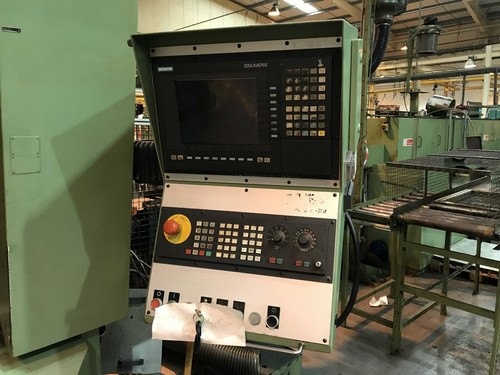

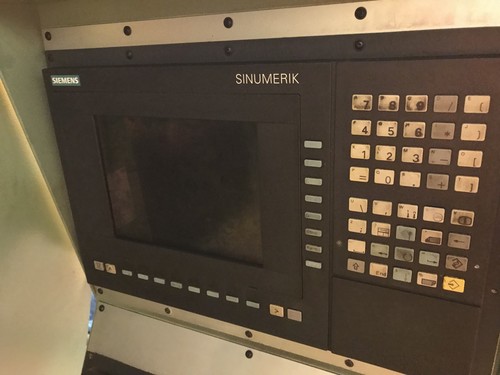

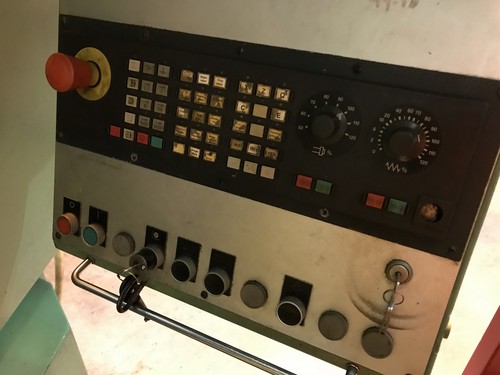

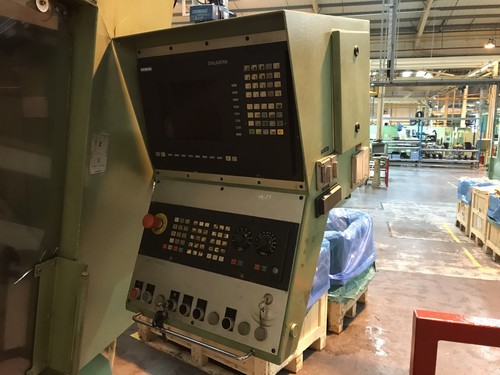

- CN SIEMENS 840D
- Interface : RS232 / RJ45 / USB
- Touch part sensor Marposs
- 1 fixed tool support on table : Capto C6

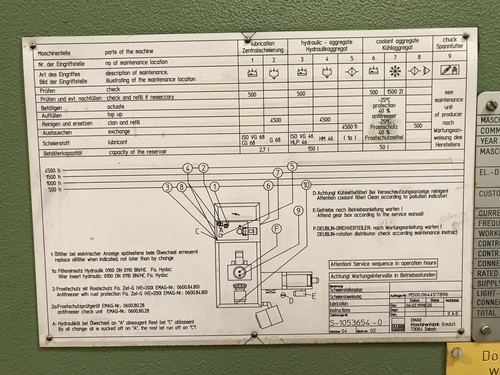

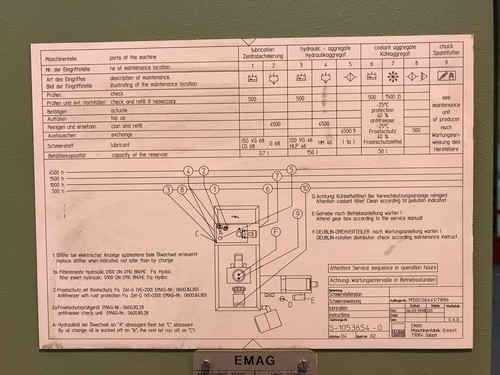

- Lubricating tank
- HP coolant tank : 23 [bars]
- Cooling tank
- Chip conveyor KNOLL

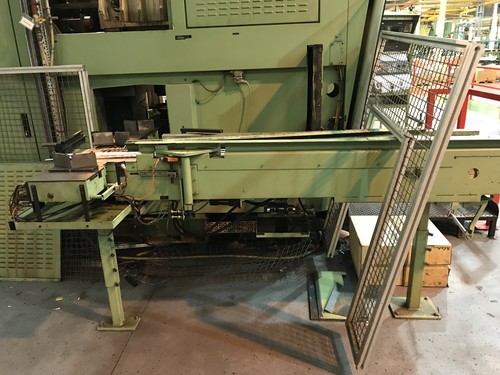

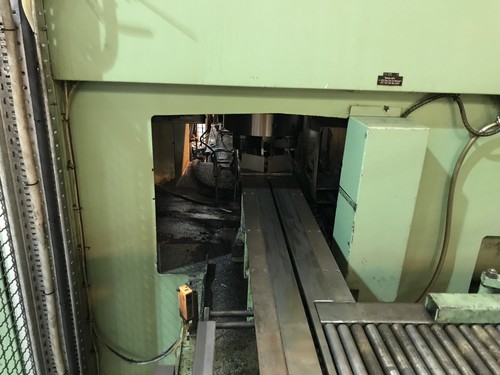

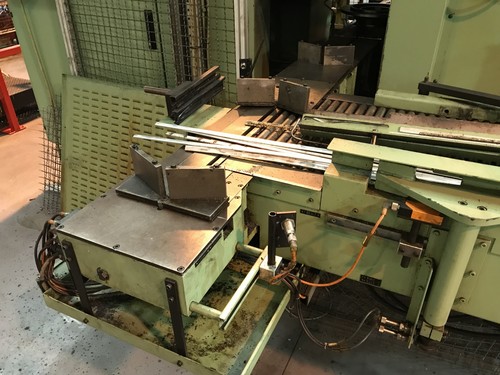

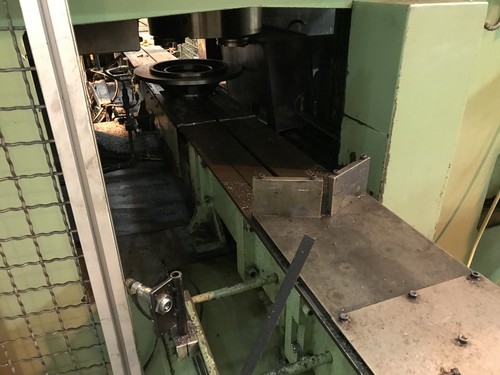

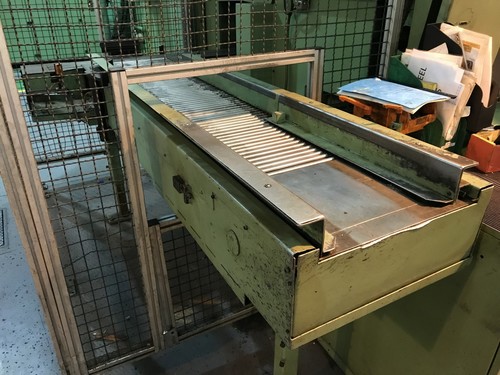

- Part conveyor capacity : 70 - 320 [mm]
- Rotary tool holders number : 6
- Fixed tool holders number : 6
- Chuck 3 jaws Forkhardt Ø : 400 [mm]
