Machine Id:	1272	Serial No:
Model:	EMZ400	Asking Price:	onrequest
Make:	Hofler	Country:	Germany
Year:		Weight:	0.0
Dimensions:		Location:	Mumbai Warehouse,India
Power:
Category:	Gear Testers CNC
Type of Machine:	4 Axis CNC Gear Tester

Specification

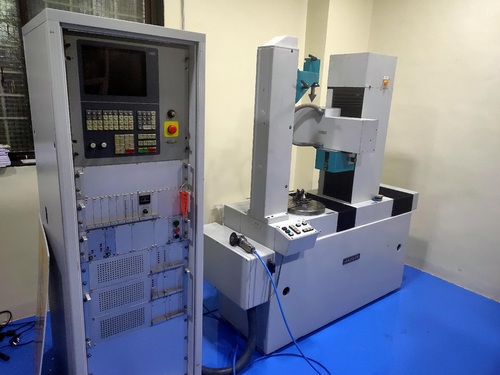

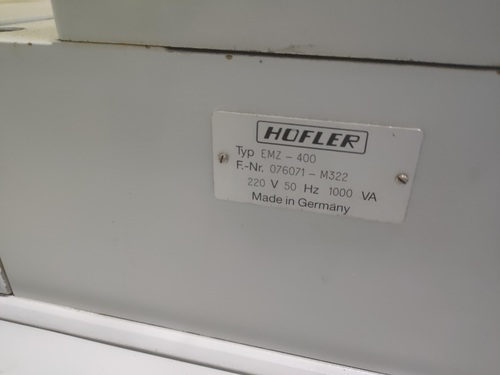

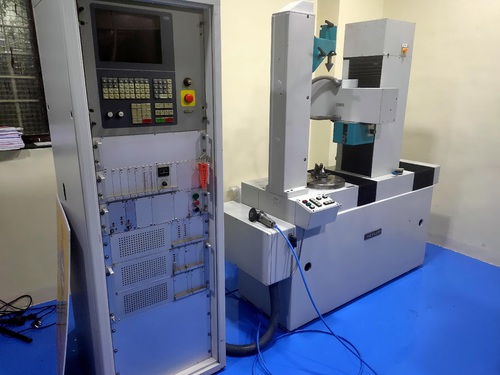

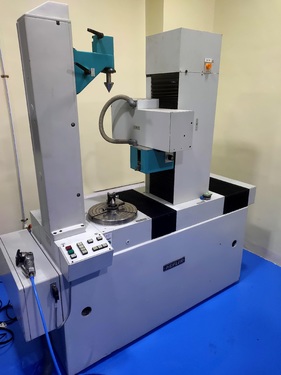

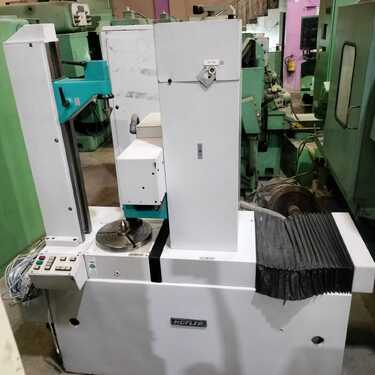

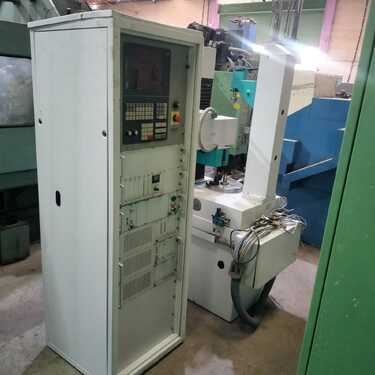

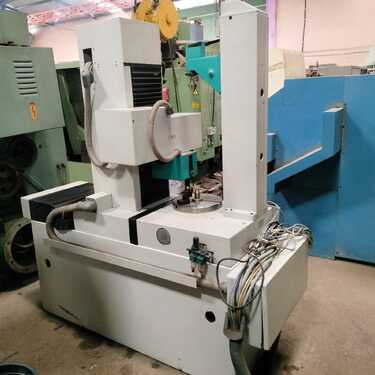

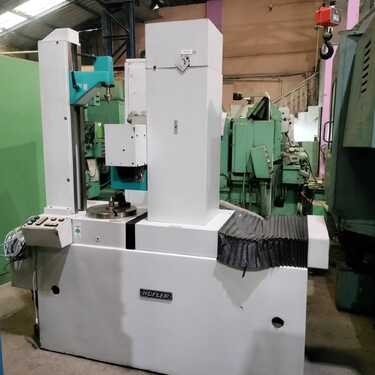

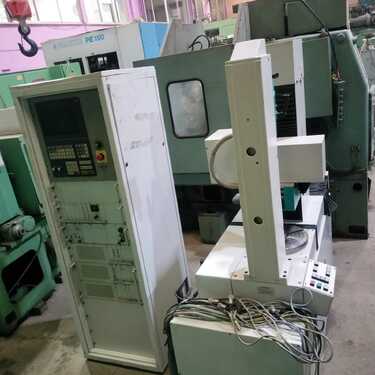

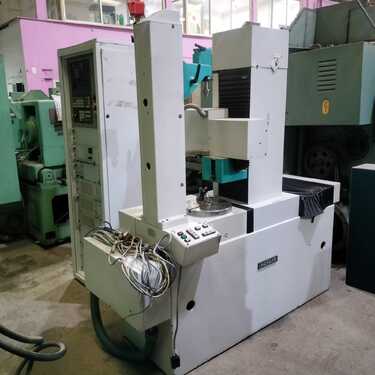

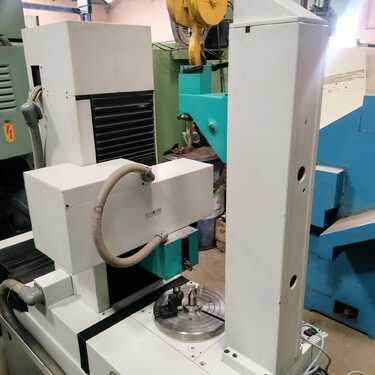

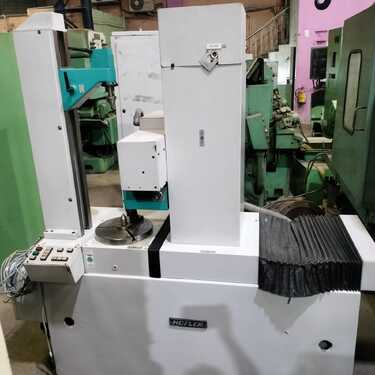

Hofler EMZ-400

Description-:

4 Axis CNC Gear Tester

Technical Specifications:

- Gear Diameter range	min / max	mm	20 / 400
- Range of BCD	min / max	mm	15 / 380
- Module	min / max	mm	0.5 / 20.0
- Helix angle.	max	Deg	+ / - 60
- Face width.	max	mm	500
- Admit Between Centers	min / max	mm	20 / 1050
- Gear Height above table	min	mm	80

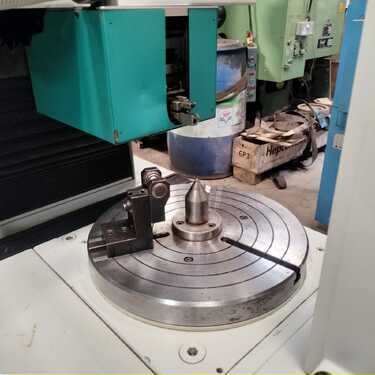

- Job weight capacity on table	max	Kg	350
- Linear Axes Least Count.	min	microns	0.1
- Table Indexing Least count	min	seconds	0.36
- 3-D Probe Least Count	min	microns	0.1
- Power requirement (220V AC)	max	kw	2.0

Standard Operating & Application Features:

1. Types of Measurements - 1.0 External / Internal Involute Spur & Helical Gear

1a. Gear Tooth Involute Profile & Lead inspection

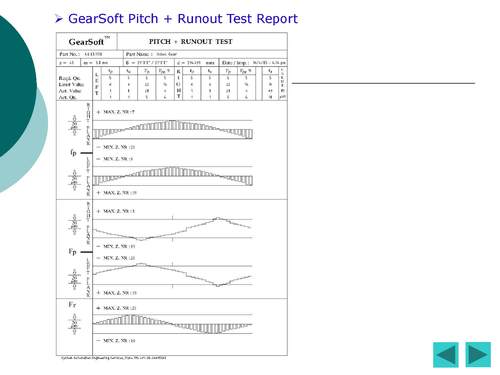

1b. Individual/Adjacent/Cumulative Pitch Errors,

1c. PCD Radial Run-out errors.

2.0 Shaving Cutter Inspection. (Optional)

3.0 Shaping Cutter Inspection. (Optional)

2. Complete Auto Cycle measurement of all parameters.

3. Machine Axes Calibration Cycle.

4. Manual Joy-stick control for axis movements.

Please note :-

we can sell machine as is where is basis (you can either use the same original software )
Or

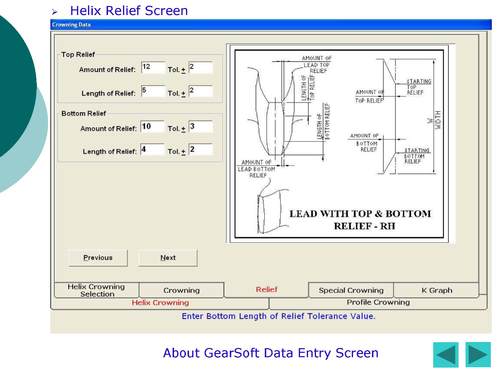

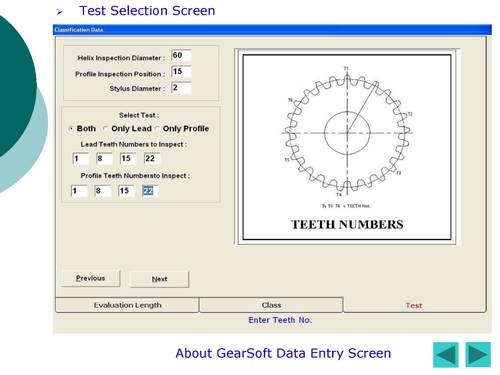

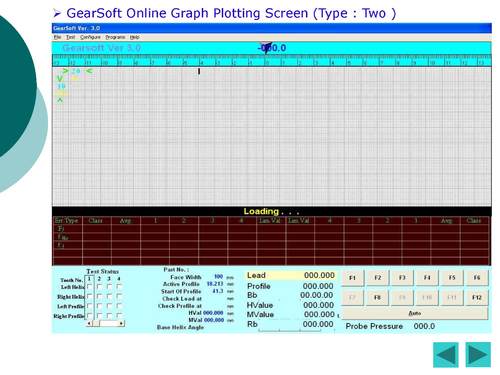

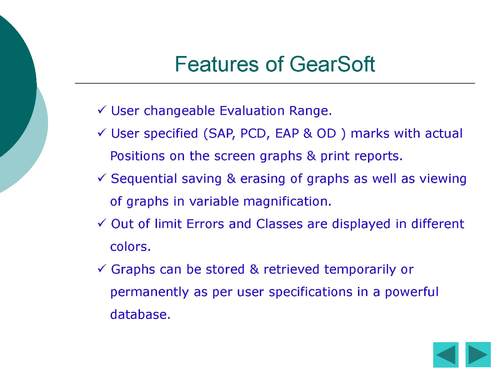

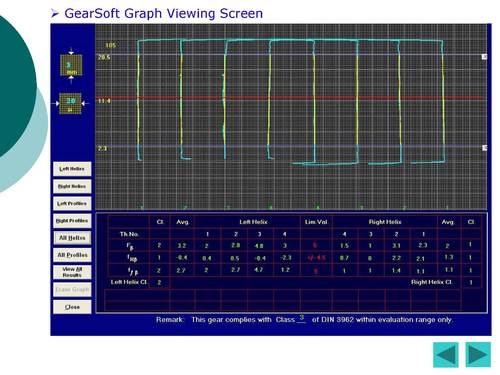

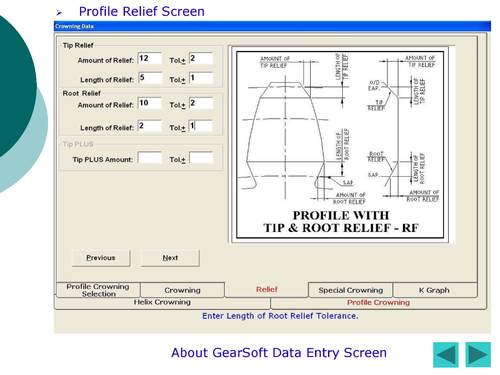

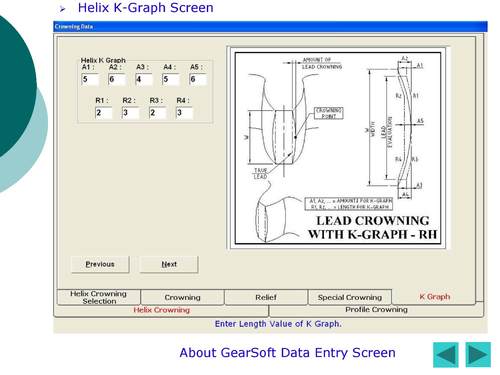

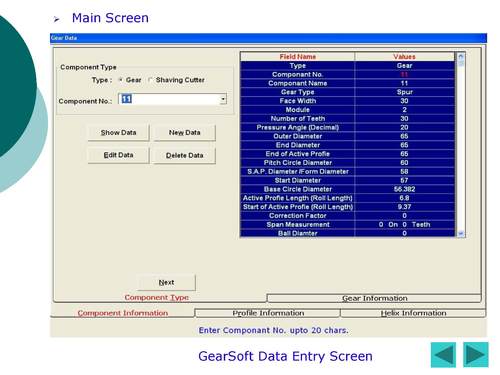

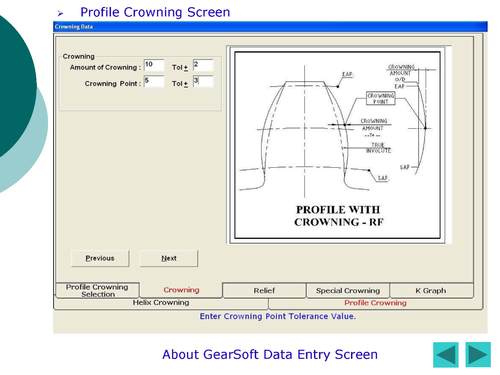

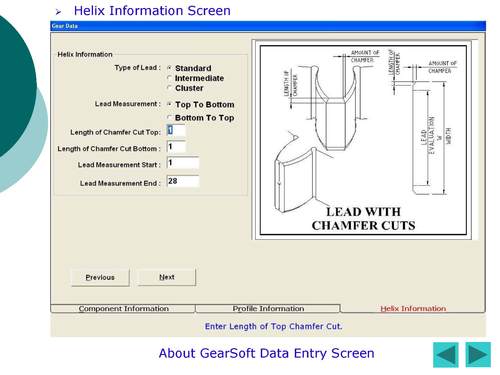

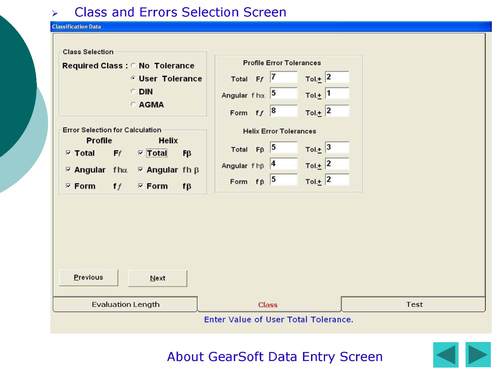

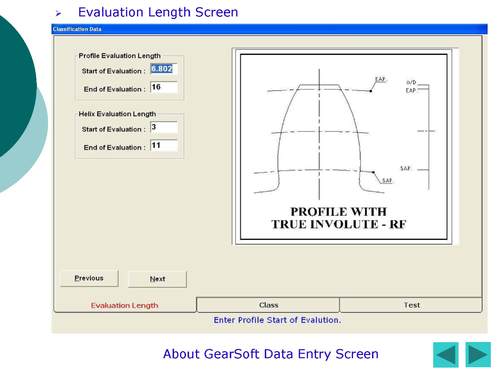

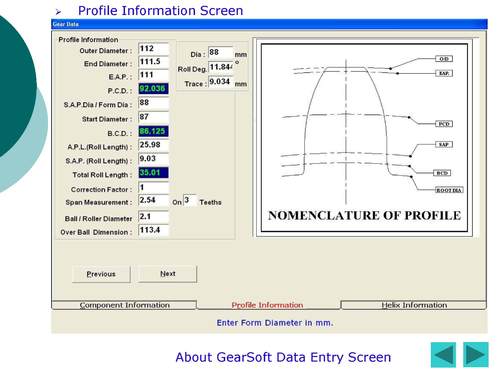

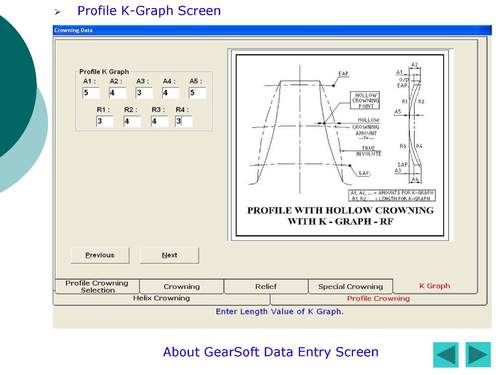

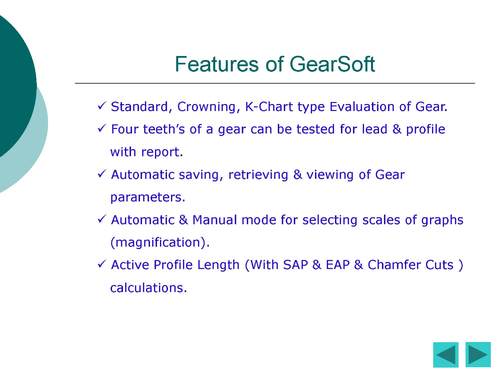

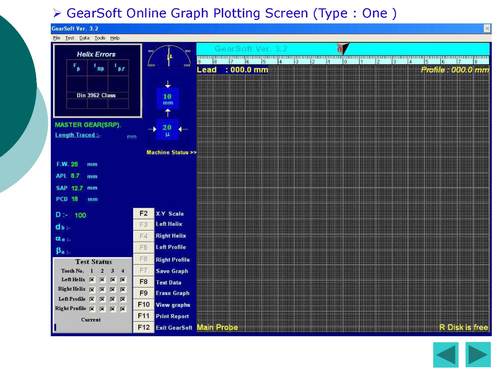

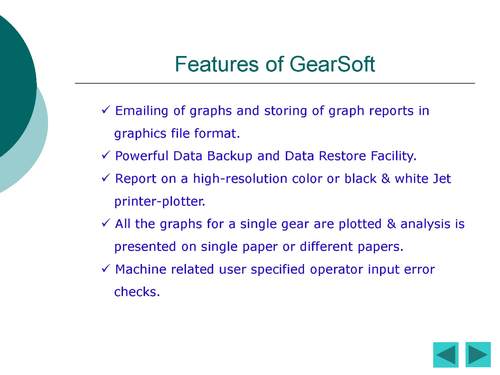

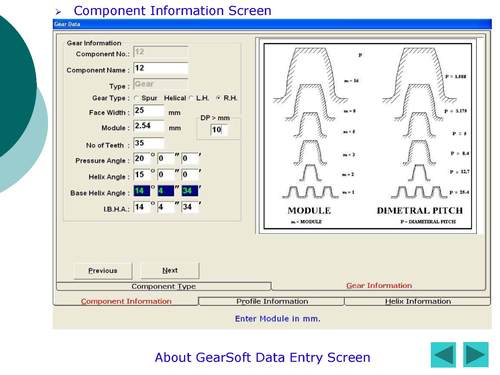

We can change the and rebuilt the machine with New software and the features of the new software is
Briefed as attached
