- Precision and repeatability in gear rack cutting operations.
- Enhanced flexibility with three-axis control.
- Efficient production with the elimination of change gears.
- Modern Siemens technology for reliable and user-friendly operation.





Machine Id: 1306 Serial No: NA
Model: SR2 CNC 3 AXIS Asking Price: onrequest
Make: Shinohara Country: Japan
Year: Rebuilt 2023 Weight: 0.0
Dimensions: Location: Mumbai India...Under Power
Power:
Category: CNC RACK CUTTING MACHINES
Type of Machine: CNC THREE AXIS RACK CUTTING MACHINE
Specification

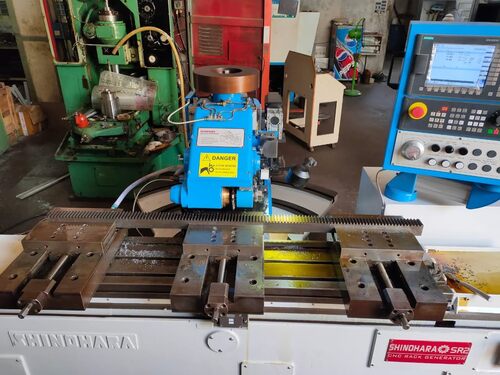

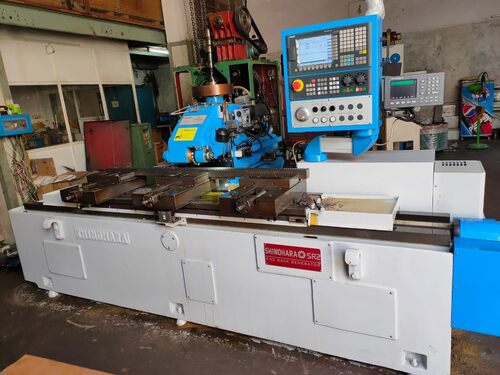

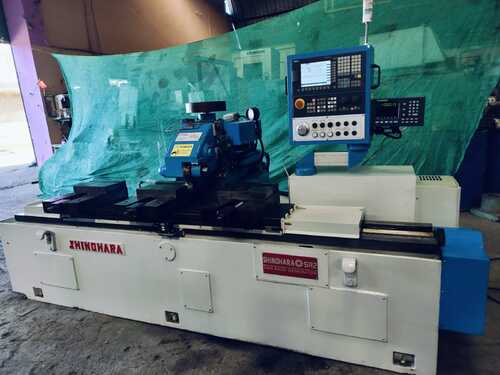

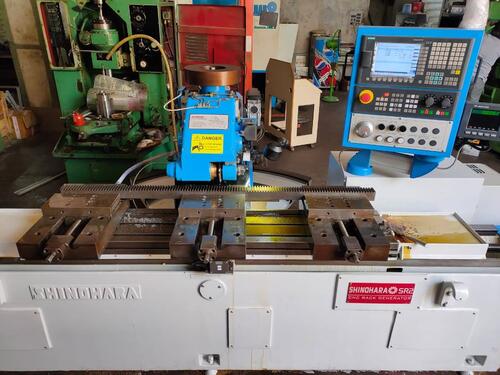

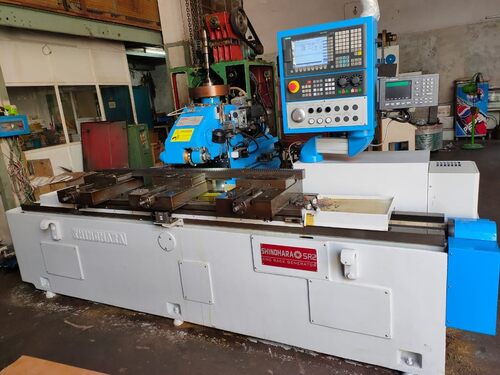

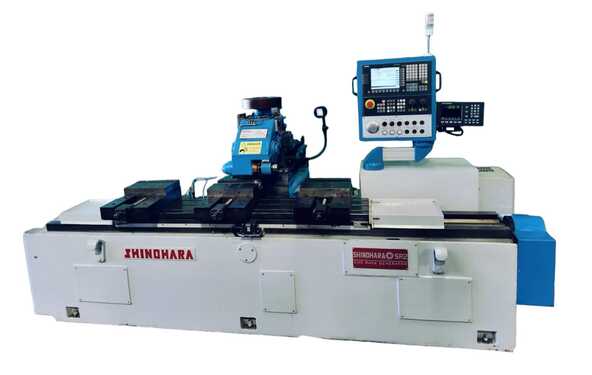

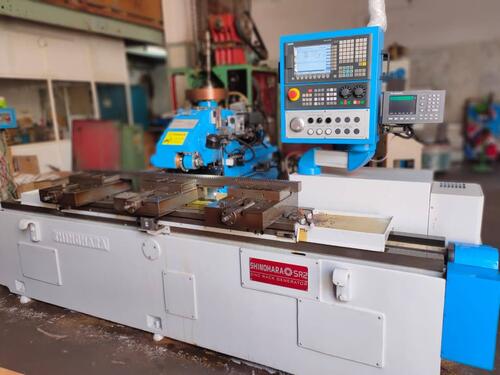

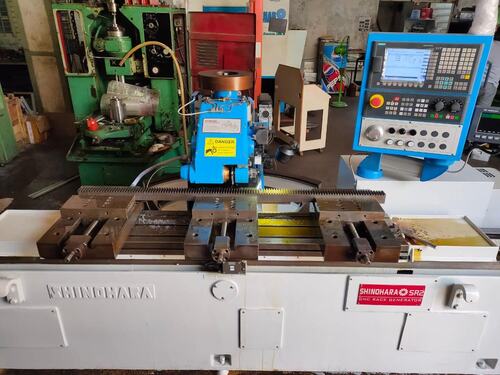

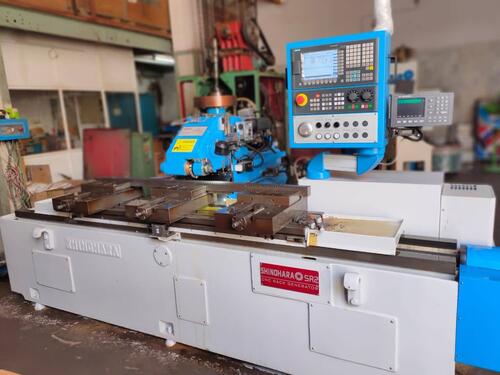

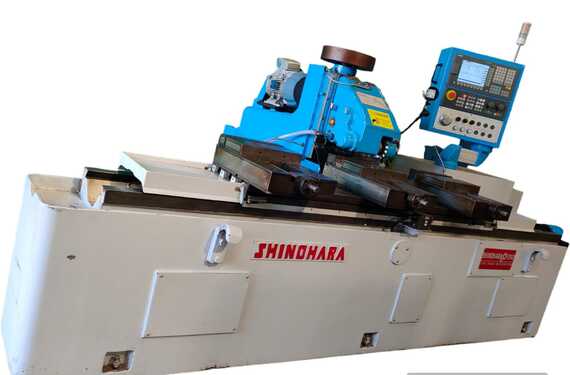

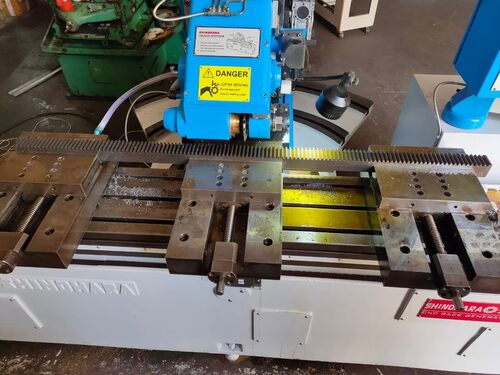

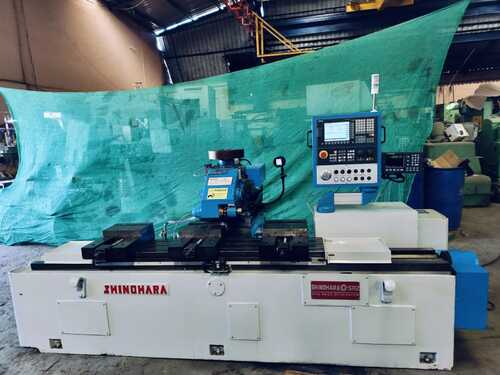

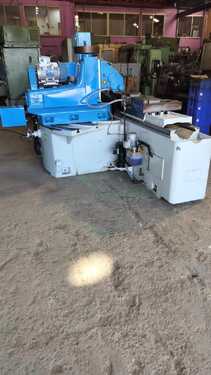

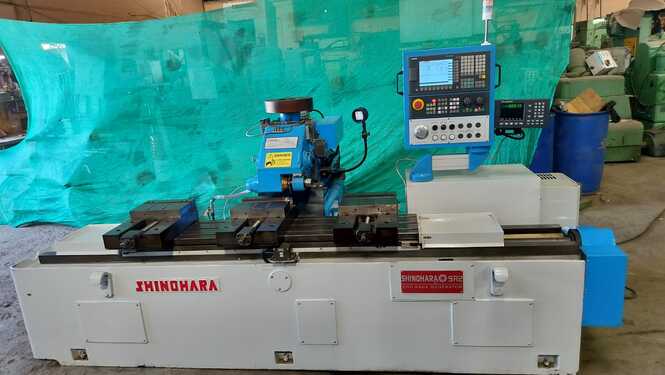

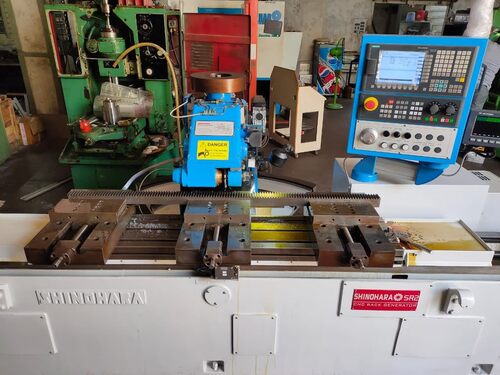

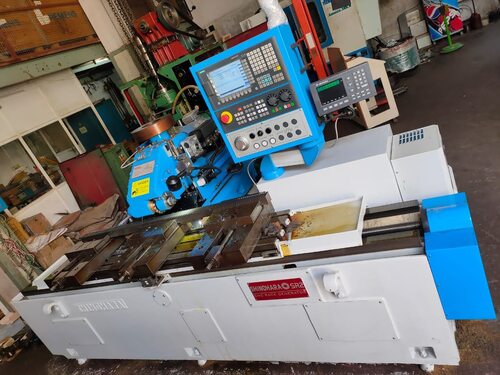

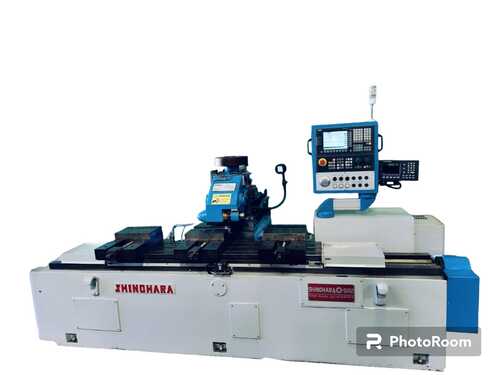

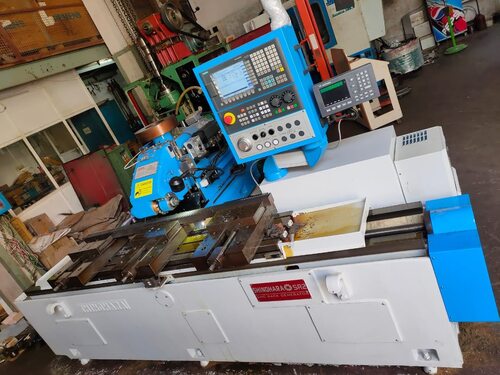

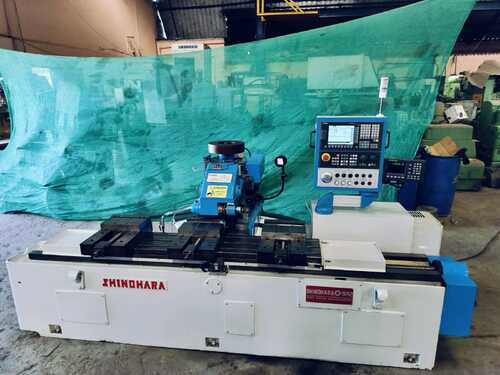

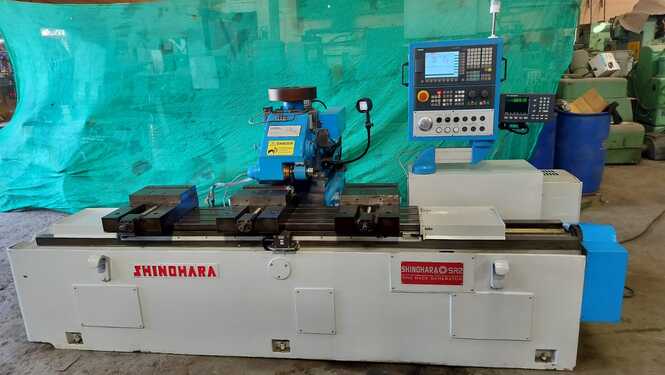

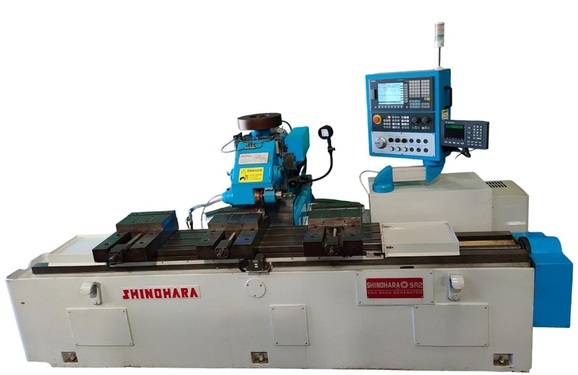

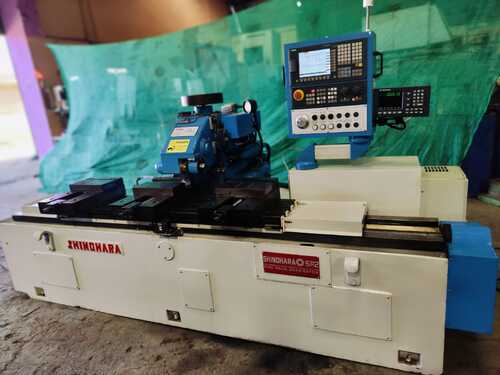

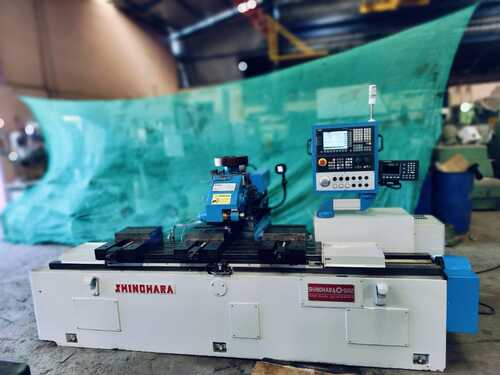

Rejuvenated and Upgraded Shinohara SR-2 CNC Rack Cutting Machine, now equipped with Siemens 808 CNC Controller


Specifications:-


1. Model: Shinohara SR-2 CNC Three Axis Machine
    Country :- Japan

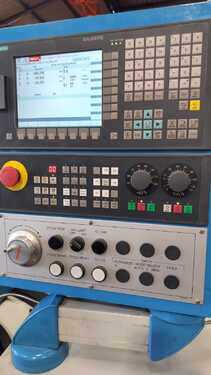

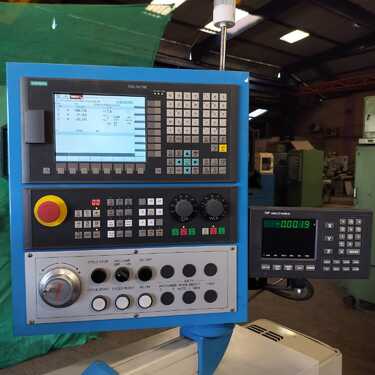

2. Controller: Siemens 808D (Brand New 2023 Year of Manufacture)
3. Cutting Length (Spur): Max 1500 mm
4. Cutting Width (Spur): Max 250 mm
5. Max Modules: 8 Module
6. Max Helix Angle Cutting: 30 Degrees PA
7. Cutter Arbor Diameter: 31.75 mm
8. Cutter Diameter: 100-130 mm
9. Max Cutter Width: 60 mm



- Brand New Hydraulic ,CNC Systems .
- Gib adjustments and worm lash adjustments performed.
- Replacement of faulty bearings and addressing oil leaks.
- Full recertification following ISO alignment standards for CNC Gear Rack cutting machines.
- Conversion to three-axis CNC using Siemens 808D, Digital drives, and AC servo motors.
- Elimination of the old Japanese controls in Favor of Siemens technology.
- No need for a change gears system, thanks to CNC capabilities inspired by Sykes and England-based    company      expertise.
- Recontrolled to Siemens 808 Advanced System, adhering to Shinohara company standards.

CNC Capabilities:-

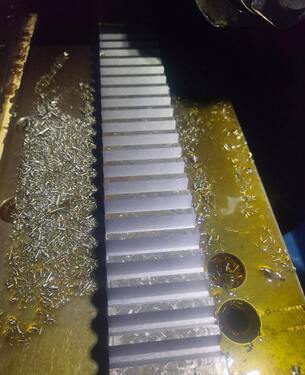

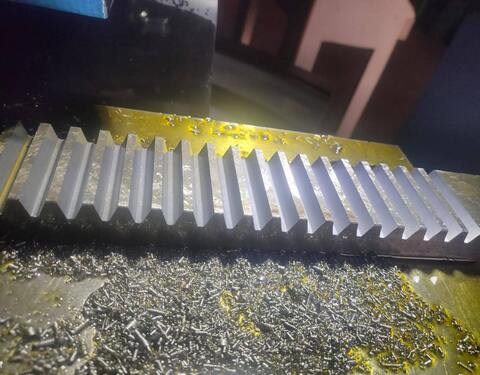

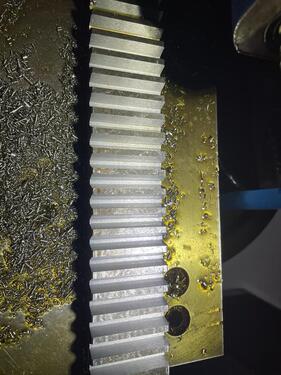

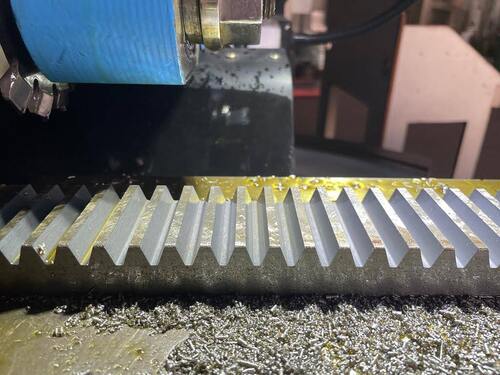

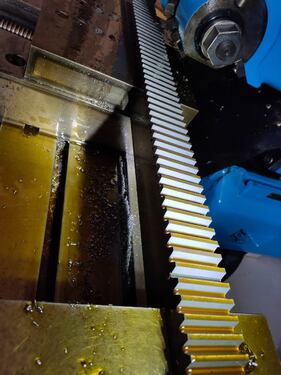

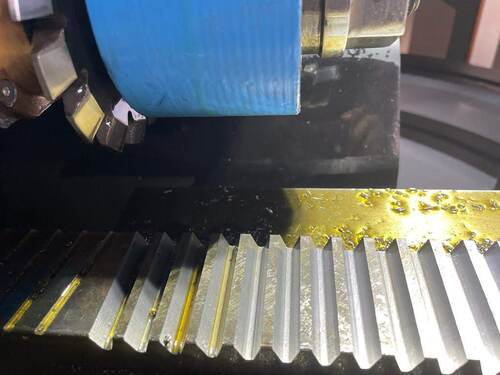

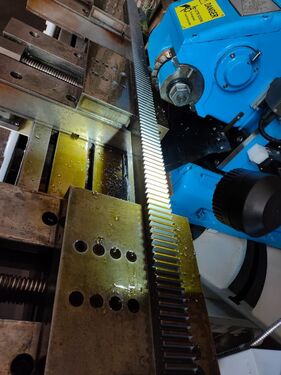

- Capable of cutting both straight racks and helical gears.
- Helical degree visibility in DRO system in addition to CNC controller.

Advantages of CNC Conversion:-

- Precision and repeatability in gear rack cutting operations.
- Enhanced flexibility with three-axis control.
- Efficient production with the elimination of change gears.
- Modern Siemens technology for reliable and user-friendly operation.
