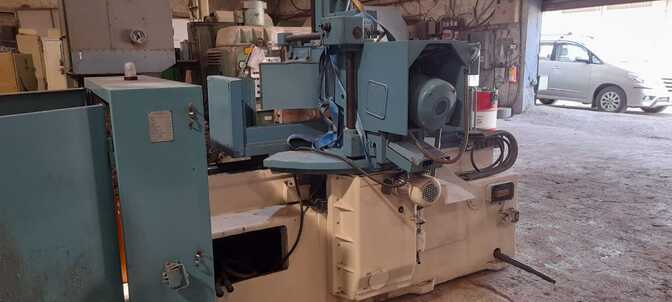

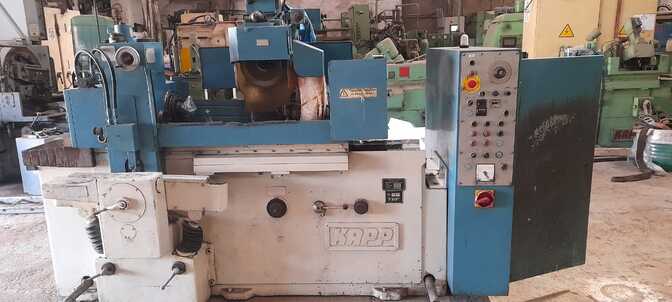

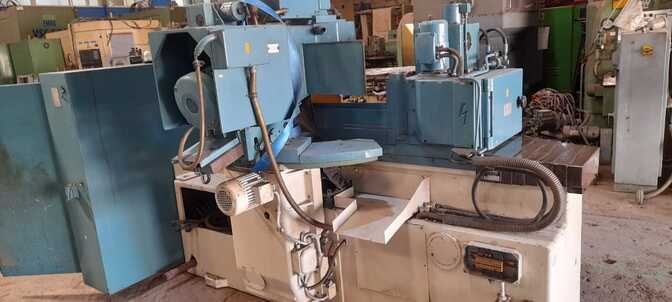

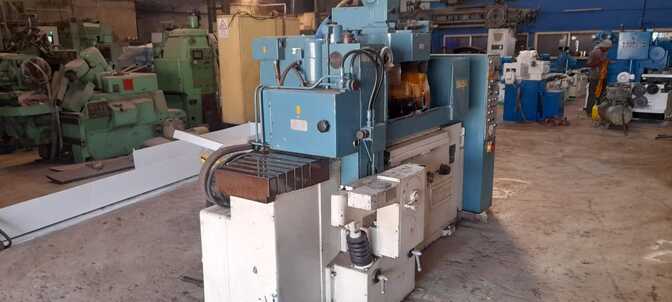

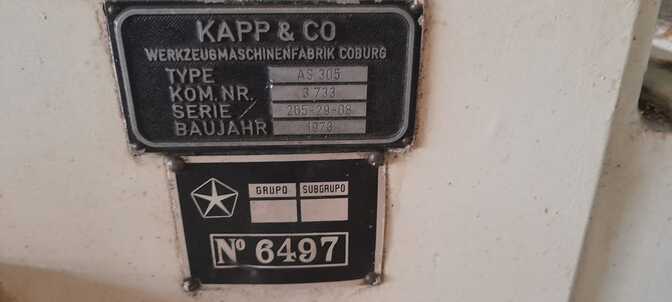

Machine Id: 1362 Serial No: 265-29-08
Model: AS 305 Asking Price: onrequest
Make: kapp Country: Germany
Year: 1973 Weight: 0.0
Dimensions: Location: Mumbai Warehouse,India
Power:
Category: Gear Hob Sharpeners
Type of Machine: Gear Hob Sharpening Machine
Specification

Technical data:

  • Max. centre width: 600 mm
  • Centre height: 155 mm
  • Maximum clamping length for arbors: 700 mm
  • Max. table travel: 550 mm
  • Maximum grinding depth: 90 mm
  • Table speed infinitely variable: 0-16 m/min
  • Axial adjustment of the grinding spindle: 220 mm
  • Vertical adjustment of the grinding slide: 200 mm
  • Speed of the grinding spindle in standard version: 2200 rpm
  • Largest number of flutes: 44
  • Swivelling range of the grinding slide on both sides: 45 degrees
  • Swivelling range of the grinding spindle from the horizontal to the top: 15 degrees
  • Largest grinding wheel diameter: 300 mm
  • Smallest grinding wheel diameter: 150 mm
  • Largest workpiece diameter: 300 mm
  • Taper of the main spindle: Morse 4
