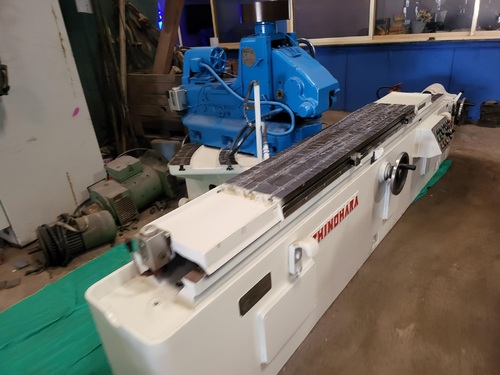

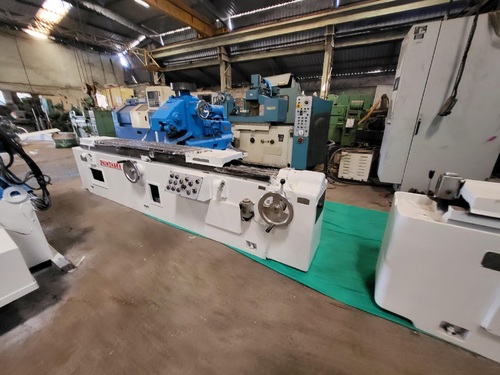

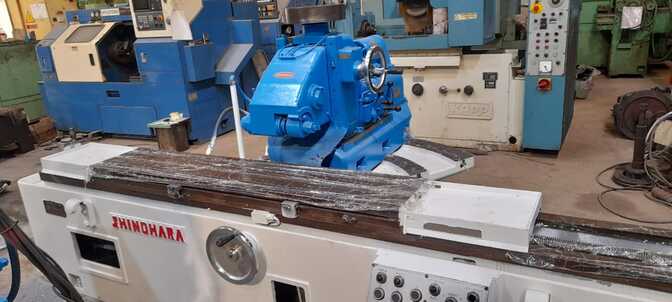

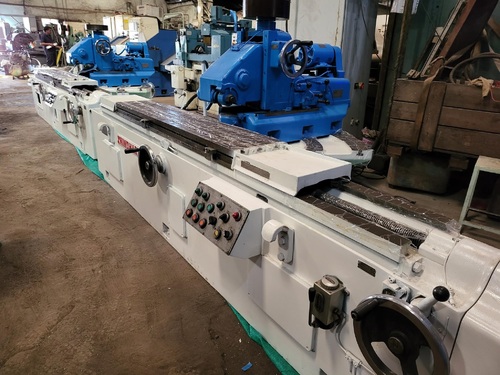

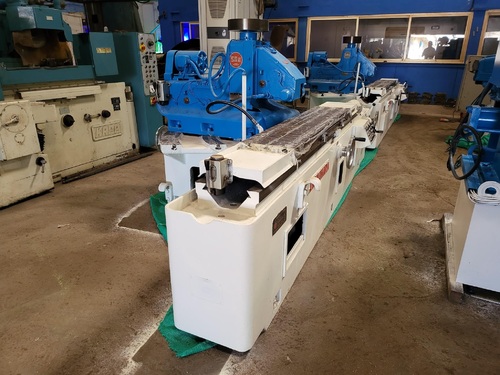

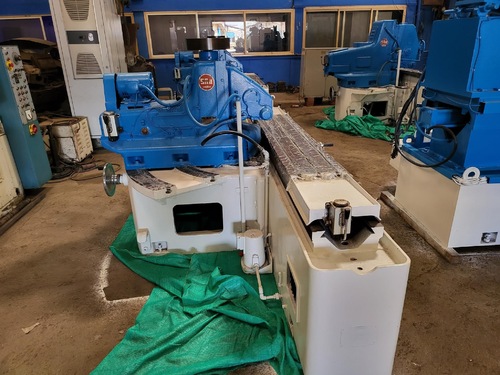

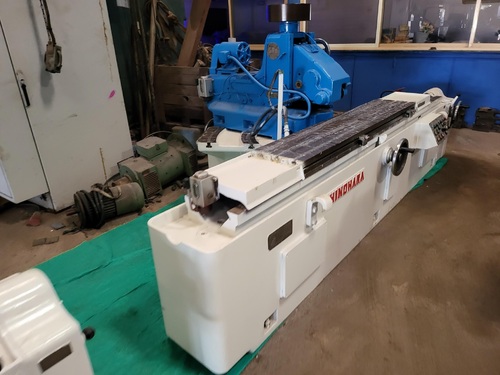

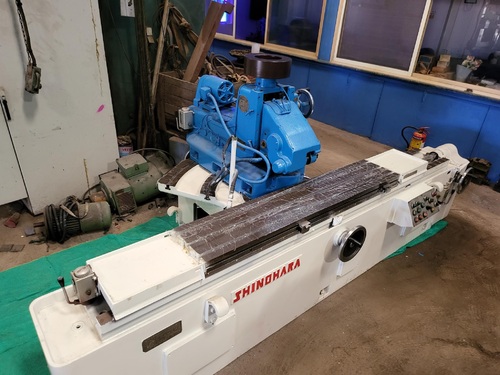

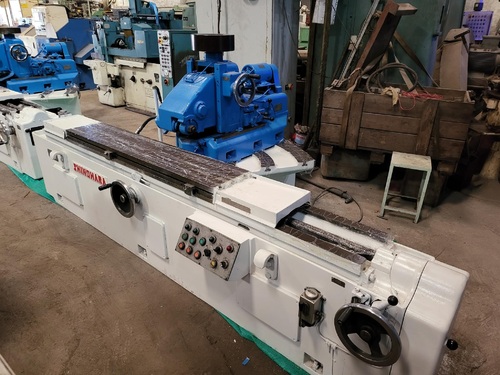

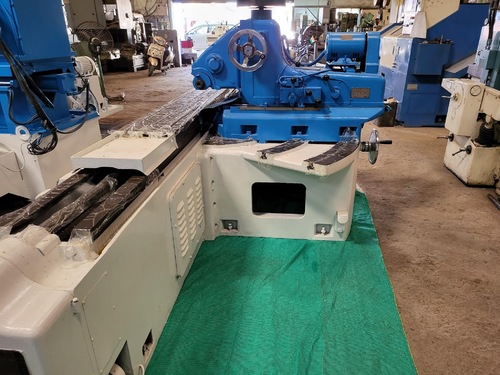

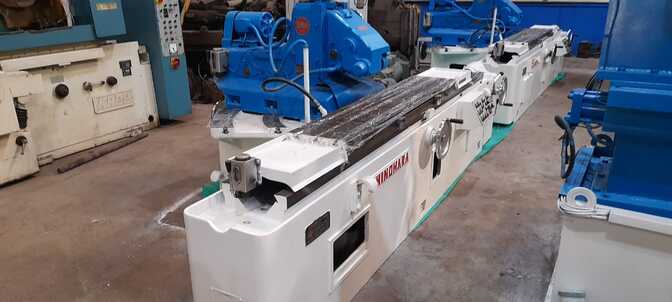

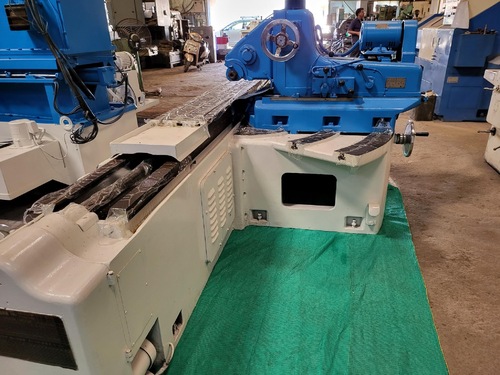

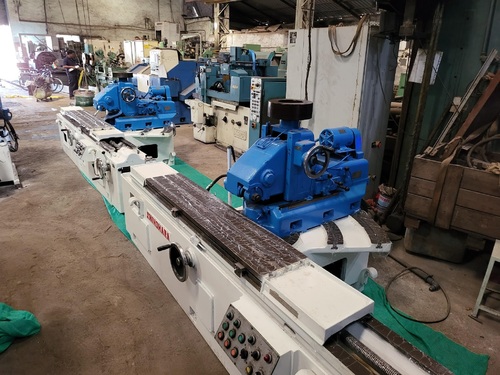

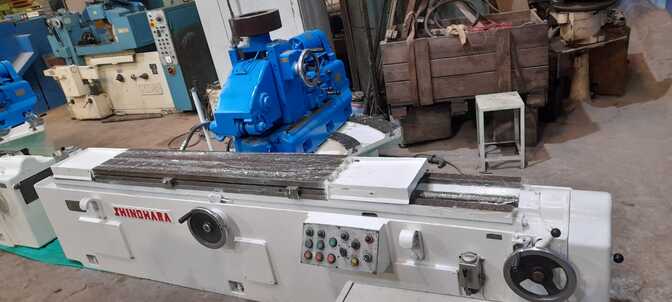

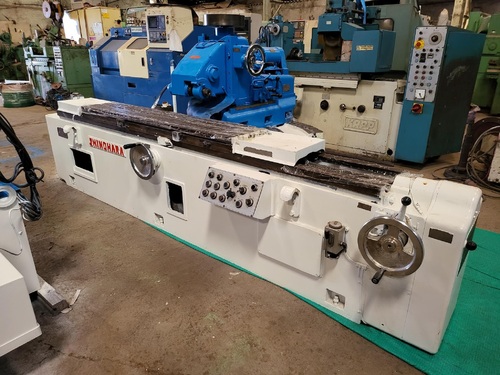

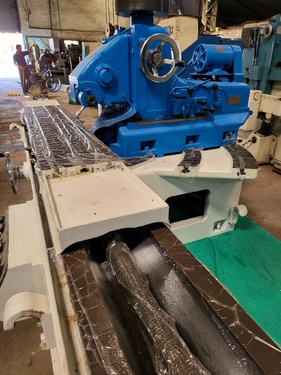

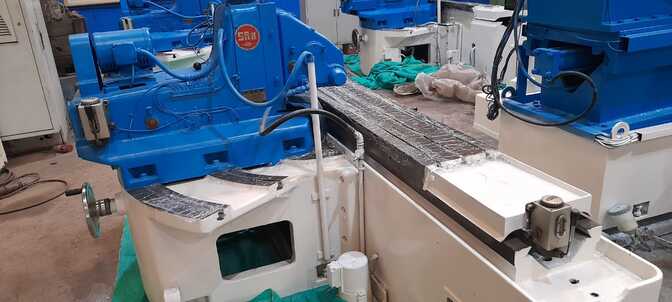

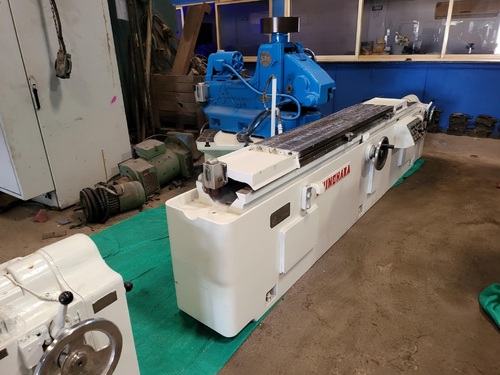

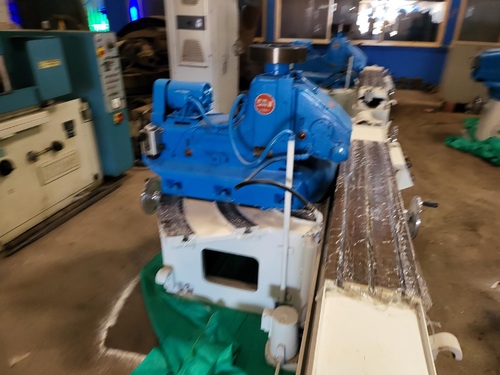

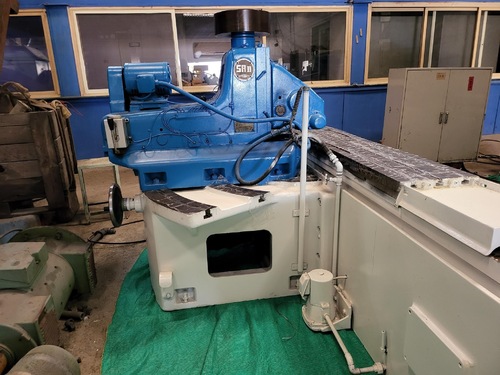

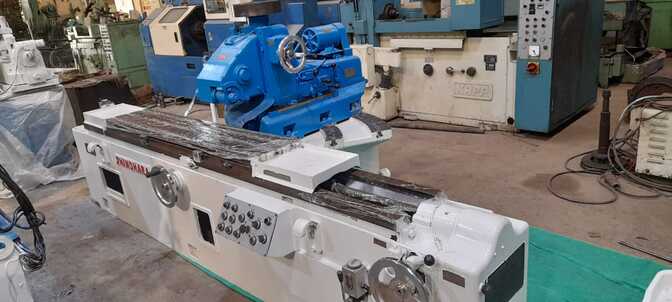

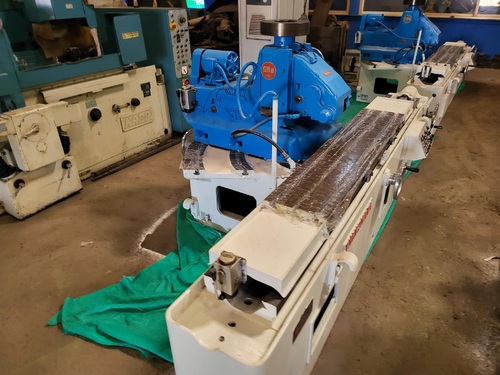

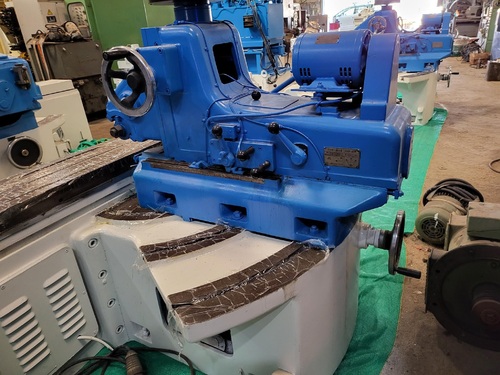

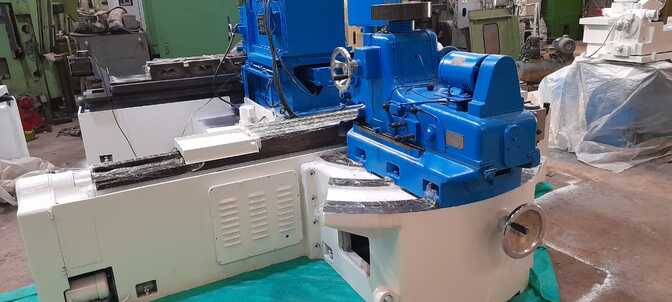

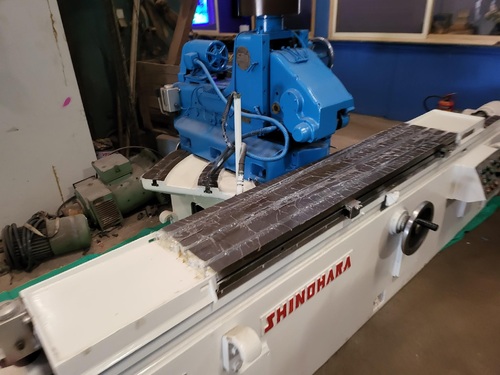

Rack Milling Machine

Max. Cutting length 1600 mm (3 SLOTS)
Milling travel / milling width cross max. 300 mm
Module in steel / cast iron, max. 16 / 18

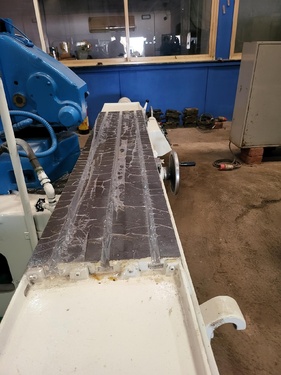

Table clamping size 510 x 2.400 resp. 275 x 2.120 mm
Mounting height under cutter, depending on cutter Ø 150 mm
Cutter Ø, min./max Ø 125 + 2 x cutting depth / Ø 280 mm
Cutter width max. without/with counter bearing support 50 / 140 mm
Cutter mandrel Ø max. 32 mm

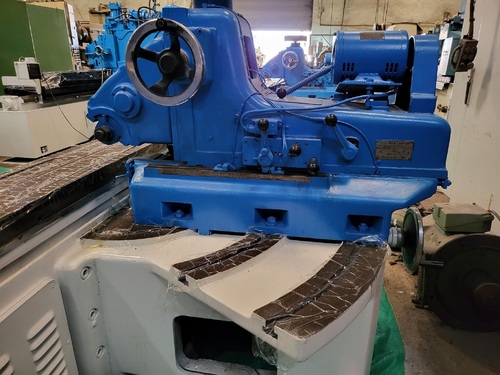

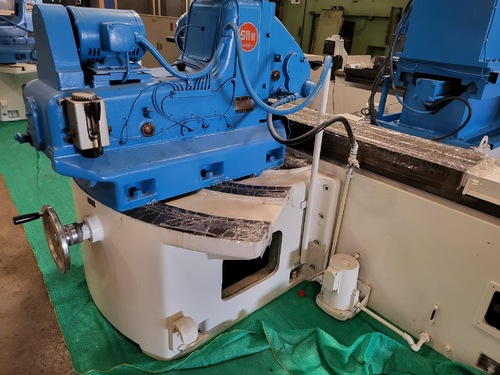

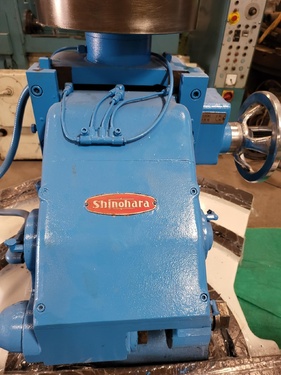

Milling spindle head, swivelling ( for relief cuts ) right / left 30 / 45 °
Milling spindle speeds steplessly adjustable 40 - 120 rpm
Milling slide swivelling right / left for Helix Cuts 30 °
Feeds, infinitely variable (milling slide) 0 - 1.300 / 2.000 mm/min
Quick return of WP-table 10.000 mm/min
Milling spindle drive 5,5 kW
Total electrical load 10 kW - 400 V - 50 Hz
Weight 5.000 kg
