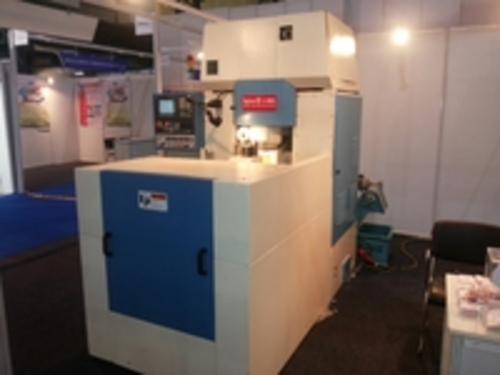

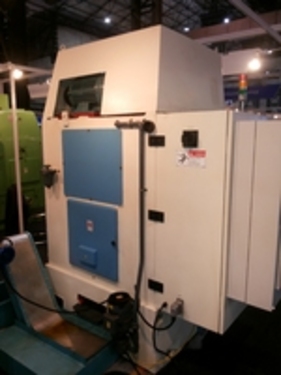

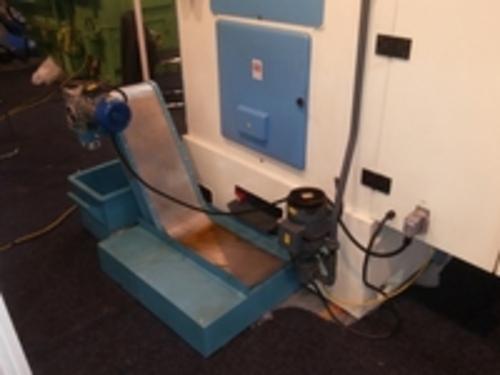

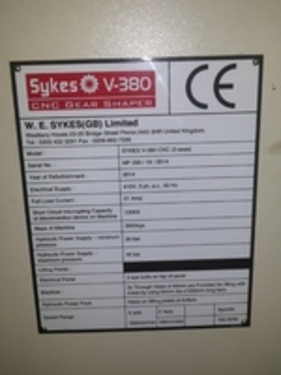

Gear Shapers CNC



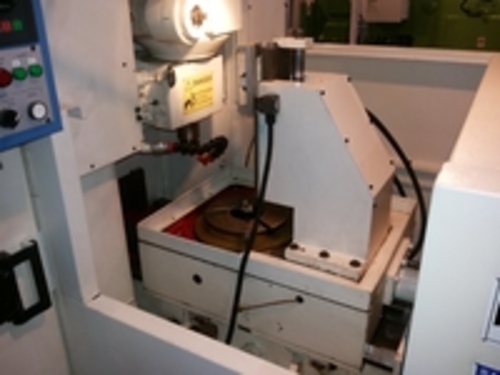

WORKPIECE

Maximum diameter-external: 400mm (15.7in) (102mm cutter)

Maximum diameter-internal: 380mm (15in) (127mm cutter)

Maximum pitch: Mod. 6 (4D.P.)

Maximum helic angle: 45degr. (R.H. or L.H.)

CAPACITY

Cutter stroke length: 0-10mm (0-4in)

Cutter spindle speeds: 50-700 spm

Maximum centre distance- 254mm (10in)

Cutter to work (forward)

Maximum centre distance- 127mm (5in)

Cutter to work (backward)

Minimum centre distance: 0

Cutter spindle shoulder to 254mm (10in)

table top maximum

Cutter spindle shoulder to 122mm (4.72in)

table top minimum
