Machines » Gear Shapers CNC »  LS 152 ( CNC 6 AXIS )
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite

Machine will be supplied as is where is Basis OR
Bebuilt As per Choice

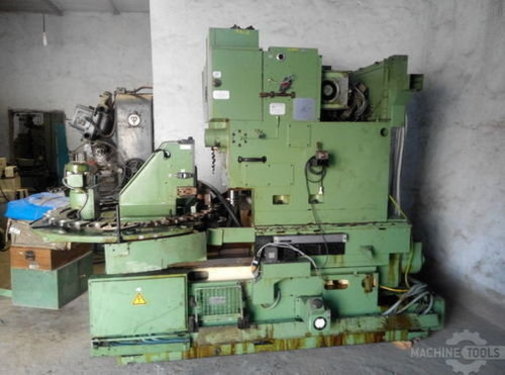

CNC Gear Shaper 6 Axis

Product Gallery :

Enlargeable Images : DOWNLOAD PHOTO/ZIP

Machine Id : 1022
Model : LS 152 ( CNC 6 AXIS )
Make : Lorenz
Year : 0
Dimensions :
Power :
Location : Mumbai Warehouse
Category : Gear Shapers CNC
Serial No :
Country : Germany
Type of Machine : CNC Gear Shaper 6 Axis
Weight : 0.0
Asking Price : onrequest

Specification :

CNC Gear Shaper 6 Axis , Choice of Two Similar Machines.

Machine Mechanical Specifications:

Pitch rating depending on application5 DPMod 5 mm
Maximum workpiece external diameter6"152 mm
Maximum workpiece internal diameter11"280 mm
Maximum tooth width (face width)1.65"42 mm
Maximum axial travel2.56"65 mm
Rapid travel - C (Cutter)190"/min4830 mm/min
                    D (Table)380"/min9660 mm/min
                    X70"/min1800 mm/min
                    Z70"/min1800 mm/min
Maximum X travel 175 mm
Minimum X travel -30 mm
Maximum Z travel 65 mm
Minimum Z travel 0 mm
Stroking motor power25 HP18.5 kW
Stroking speed range, infinitely variable100-1250 Strokes per minute
Stroking GuideHydrostatic, Spur

Machine Equipment List:

  • Power Clamping
  • Tailstock
  • 4" Riser block
  • Spring Leveling Wedges
  • Servo controlled cutter elevation
  • Cutter positioning
  • Chip conveyor
  • Rebulting Avilable upon request
Description :
