Location |
: |
Mumbai Warehosue, India |
|
|
|
|
|
|
Type of Machine |
: |

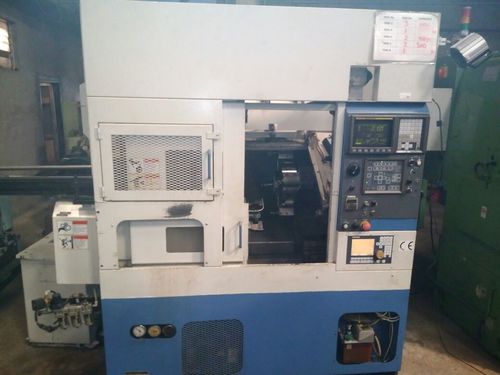

Takamaz X-15 hi server CNC, Fanuc 21 TB precision lathe |
|
|
|
|
|
|
|
Specification : |
STANDARD SPECIFICATION :TAKAMAZ FANUC ITEM | UNIT | SPECIFICATIONS | Capacity | Max.turning dia. | mm | OD 260 | | Max. turning length | mm | 280 | | Max. bar material dia.*1 | mm | OD 51 | | Chuck size | inch | 8 | Spindle | Spindle nose | JIS | A2-6 | | Spindle through hole dia. | mm | OD 61 | | Spindle bearing I. D. | mm | OD 100 | | Max. speed | Min. -1 | 3500 | | Spindle motor | KW | AC5.5/7.5 | Tool post | Type | | 8-stationed turret | | Max. tool size | mm | Sq. 25 | | Max boring tool dia. | mm | OD 40 | Slide | Max. stroke | mm | X:155, Z: 320 | | Rapid traverse rate | m/min. | X:18, Z:24 | | Feed motor | KW | X:AC1.4, Z:AC2.1 | Size | L X W X H | mm | 1760 x1500x 1650 | | Spindle centre height | mm | 1000 | | Machine weight | kgf | 3000 (29.4KN) | | Hydraulic tank | Lit. | 15 | | Coolant tank | Lit. | 120 | Electrical capacity | Coolant pump motor | kw | AC0.25 | | Hydraulic pump motor | kw | AC1.5 | | Total power capacity | kVa | 22 | | Controller | | TAKAMAZ FANUC | | | | |
|
|
|
|
|
|
