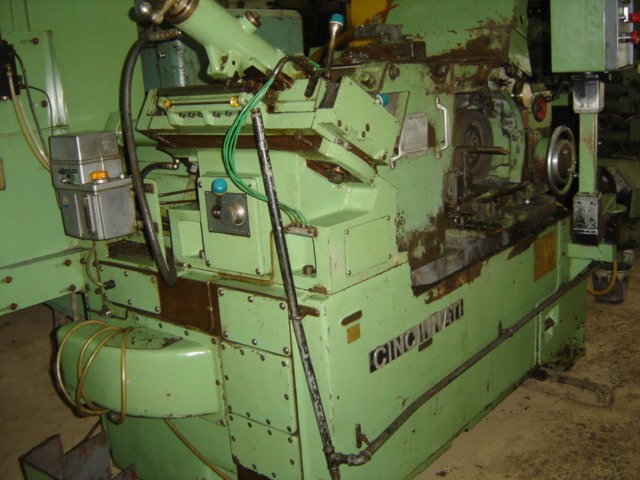

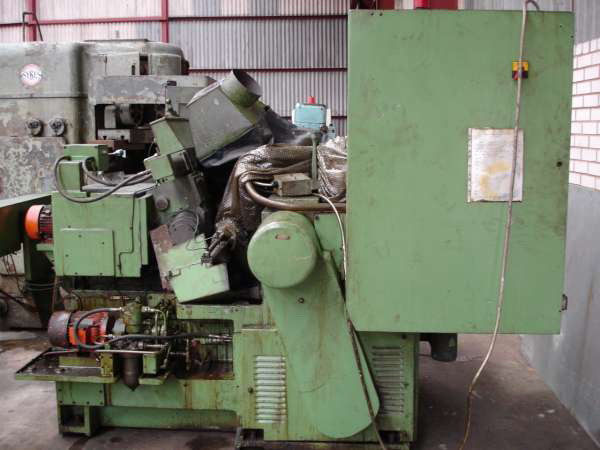

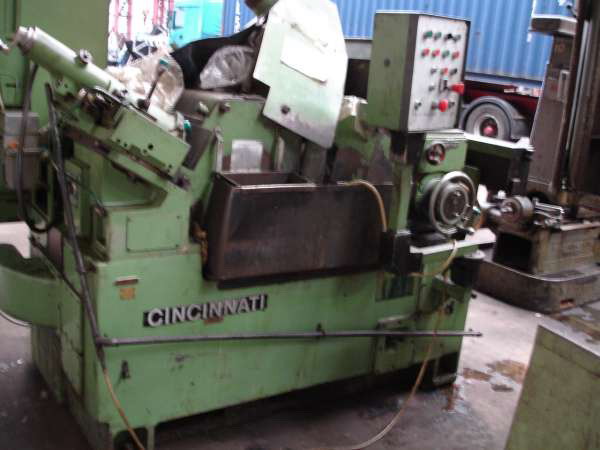

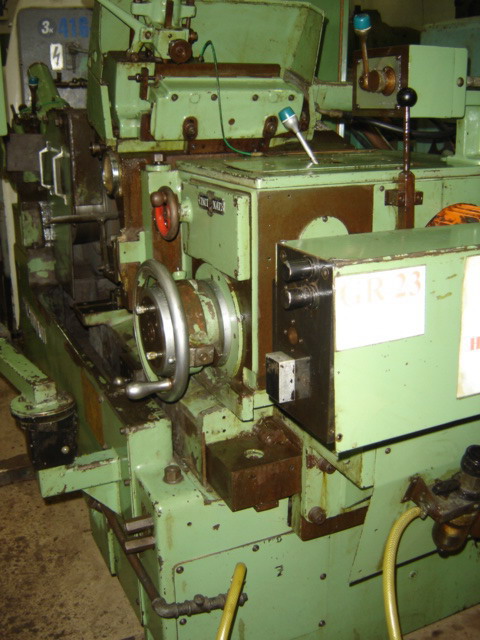

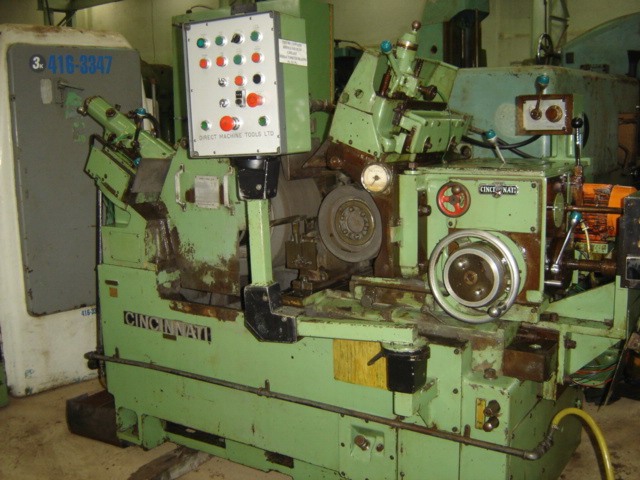

CHINCINNATI MILACRON 2-LR Centreless is a general purpose grinding machine sutable for a wide range of Throughfeed and Infeed application

Work diameter range  new wheels  :- 1.6mm -121 Dependent upon work rest used.

Grinding and Regulating wheel Widths :-250mm

Grinding Wheel diameter :- 500mm max,  375mm min,  304.8mm hole,

Regulating wheel diameter  :- 300mm max,  241.3mm min, 127mm hole

Grinding wheel surface speed (new wheel):-6.5 s.f.m (33m/sec) new wheel

Regulating wheel speed range  12 to 315 rpm infinitely

Variable in 2 speed ranges.

Grinding wheel truing

- maximum angle of rise on cam 30 Degree

- maximum step   19.0 mm

- truing rate 25mm/min

300mm/min maximum

wheel infeed Movement  0.96 mm with single pitch infeed screw

Main Drive Motor 20HP, totally enclosed, fan cooled,

Precision balanced, metric D frame.

Regulating wheel drive motor 2 Hp, totally

enclosed,fan cooled metric D frame

Hydraulic Pump Motor 2 H.P. totally enclosed.

Coolant Pump Motor 0.5  H.P. integral with pump

Weight net 12,100 lbs

Weight- export shipping 15,650 lbs.

Size of case for shipping 140inch  x 74inch  x 86inch

Cubic content of case  516 cubic ft
