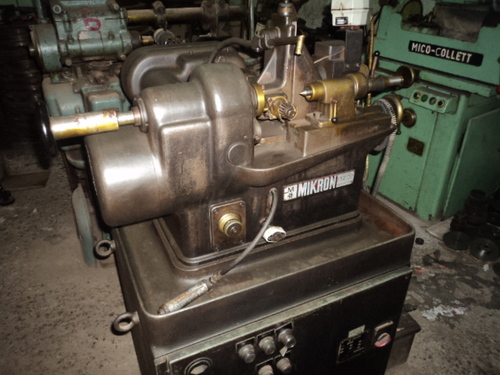

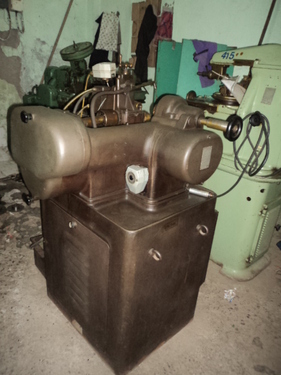

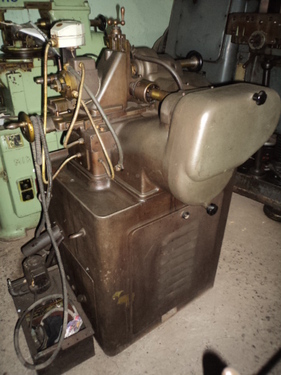

Gear Hobbers

Technical Data

Work capacity: max. diameter  100 mm
Max. Module  1.75
Workpiece length max.  100 mm
Pitch min.  6
          max.  400
Milling cutter speeds:
       from  200 rpm
       up to  2400 rpm
Feeds:
       Axial from  0.05 mm/r
       Up to  1.0 mm/r

Voltage 50 Hz 3x  380 Volt
Power  1.50 HP
Machine's weight about  660 kg
Overall dimensions machine:
    Length  1000 mm
    Width  800 mm
    Height  1300 mm
Fabrication de filetages:
Tangent gear cutting
