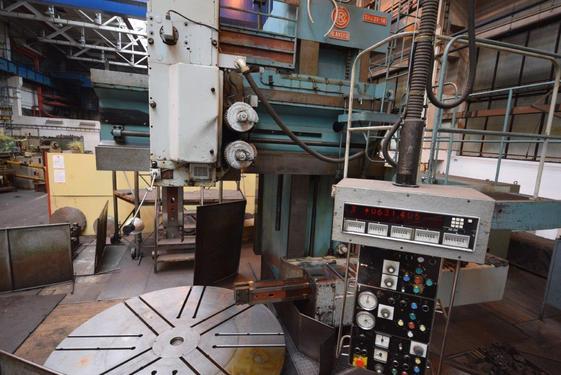

Make: CKD Blansko

Model : SKJ 25/50　

The max workpiece diameter 5000 mm

The max workpiece height mm 2000

Workpiece weight of 40 t

Clamping plate diameter 2500 mm

Speed clamping plates continuously min-1 1-100

Shifts slide

Working shift smoothly mm min-1 0,5-200

or linked to the clamping plate mm / rev 0,03-20

adjustment smoothly mm min-1 5-2000

Movement of the ram 1250 mm

Tilting of the slide on both sides of 30 degrees

Electric motor to drive the clamping plates

power of 50 kW

control range at a constant speed of 1: 27.5

Control range for constant cutting speed 1:10

Electric motor for feed

power 4.2 kW

control range of 1: 400

Overall height 6800 mm machine

Machine weight 38t
