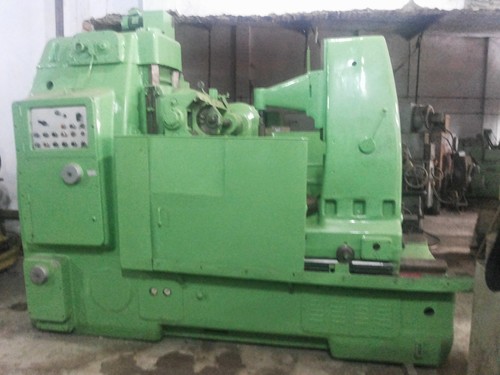

Machines » Gear Hobbers » FD 800 (copy of Pfauter P 900)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model |
: |
FD 800 (copy of Pfauter P 900) |
|
|
|
|
|
|
|
|
|
| Location |
: |
mumbai warehouse,india |
|
|
 |
|
|
|
|
|
|
| Type of Machine |
: |
Universal Gear Hobber Heavy Duty |
|
|
|
|
|
|
|
|
|
|
| Specification : |
Gear hobbing machine type FD-800
Maximum module 10 mm
Max. working diameter 800 mm
Max. axial travel 450 mm
Minimum no. of theets 10
Table diameter 800 mm
Cone MORSE 5
Max. tangential travel of the tool 150 mm
Weight 11000 kg
Overall dimensions ( L x l x H ).. 3070 x 1870 x 2335 mm
Accessories : change gears + technical documentation.
|
|
|
|
|
|
