Gear Shapers

Download Product PDF Enquiry / Quote / Interested Add this Favourite For Agents

Enlargeable Images :

Download Photo / Zip
Video

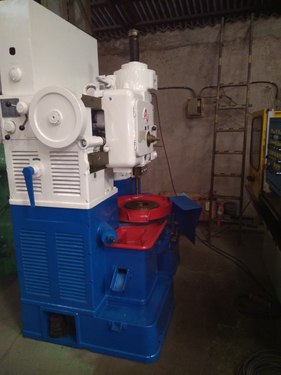

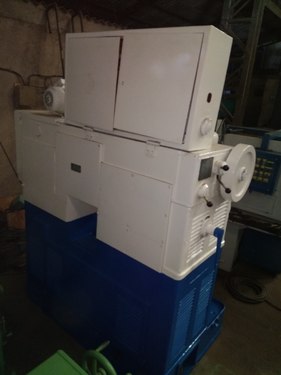

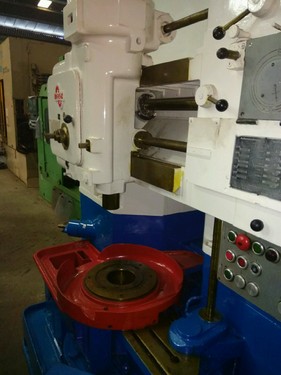

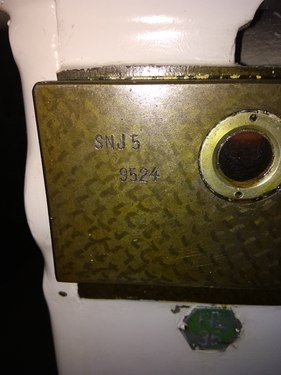

Machine Id: 1044 Serial No: 9524
Model: SNJ 5 Asking Price: onrequest
Make: Lorenz Country:
Year: Weight: 0.0
Dimensions: Location:
Power:
Category: Gear Shapers
Type of Machine: Gear Shaper Machine
Specification

Max wheel Ø 500 mm
Module + 5
Max. gear width 100 mm
Length x width x height 1800 mm × 2300 mm × 1100 mm
Weight 5000 kg

Description

Max gear shaping length: 75 mm
Module 5
Number of strokes / min of the cutter: 45/424
Cutting speed: 18
Screw diameter: 78 mm
Max gear shaping diameter: 500 mm
Max external gear shaping diameter: 500 mm
Max internal gear shaping diameter: 450 mm
Hole diameter of the table: 125 mm
Diameter of table: 310 mm
Machine dimensions: 2300 x 1800 x 1100 mm
Machine weight: 5000 kg
Total power: 3 Kw
Voltage: 220 / 380V
