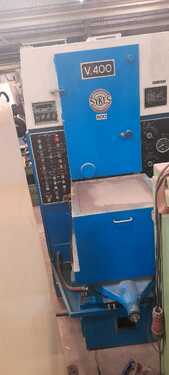

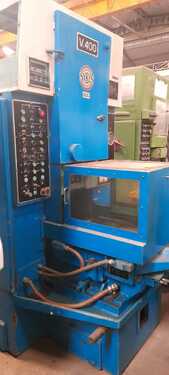

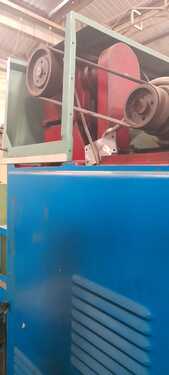

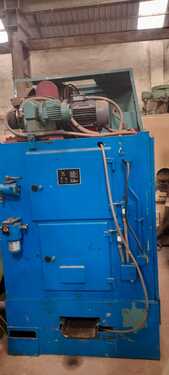

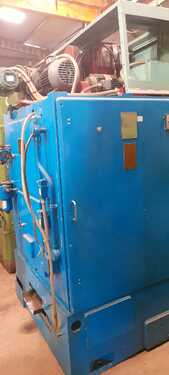

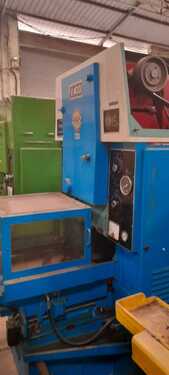

Gear Shapers

External gears, max. 400 mm
Internal gears, max. 350 mm
Gear width, max. 100 mm
Module range 0.5 - 6
Length of stroke 0 - 105 mm
Adjustment of stroke position, approx. 0.50 mm
No. of strokes, approx. 50 1,000 double strokes /min
Radial feed, infinitely variable 2.65 100 mm/min
Shaping feed 0.025 0.76 mm/rev
Table size 250 mm
Table bore 100 mm
Mounting height between table and shaper head 220 mm

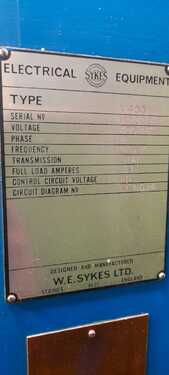

Total electrical load, approx. 8 kW - 400 V - 50 Hz
Weight 4,500 kg

Accessories / Special Features

* Infinitely variable feeds and strokes. Number of strokes are displayed on the adjusting wheel.

* Workpiece fast positioning device.
* 3-cut infeed, depth controlled using table stops.
* Electronic display for table rotation and angle display.
* Hydraulic workpiece clamping device, mounted on the table
