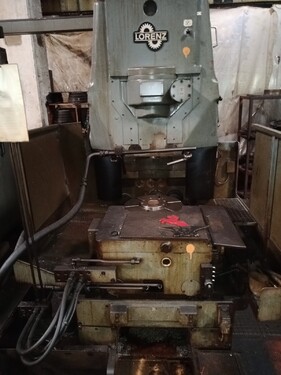

Gear Shapers

Technical Data

Working range:
Module from 0.5
up to 6
Max. wheel diameter: 400 mm
Max. gear cutting width : 70 mm
Max. gear cutting diameter: 400 mm
Min. ram stroke : 0 mm
Max. ram stroke : 82 mm
Adjustment of stroke position : 100 mm
Distance ram to table:
from 265 mm
up to 365 mm
Taper in ram 5 MT
Ram stroke speeds:
from 118 s/min
up to 1000 s/min

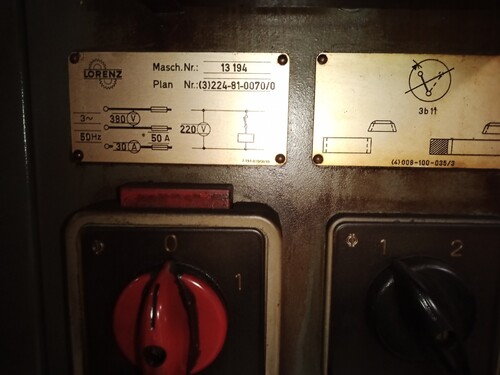

Voltage 50 Hz 3x 380 Volt
Machine's weight about 6300 kg
Overall dimensions machine:
Length 2570 mm
Width 1320 mm
Height 2200 mm
