Gear Hobbers CNC

• Year of manufacture: 1992

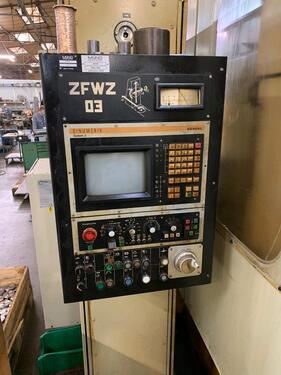

• Control system: SINUMERIK 3M (6 controlled axes: X, Y, Z, A, B, C)

Technical data:

• Max. module
• -for plain milling cutters: 8
• -for forming cutters: 14
• Max. diameter of gear: 250 mm (315 mm)
• Max. axial travel: 280 mm
• Max. tangential (milling) travel: 160 mm
• Max. angle of teeth incline: 45°
• Diameter of clamping surface of table: 295 mm
• Max. diameter of milling cutter: 160 mm
• Max. length of milling cutter: 200 mm
• Distance between clamping surface of table and center of milling cutter: 190–470 mm
• Cutter revolutions: 50–400 rpm
• Rapid traverses:
• -axial: 1600 mm/min.
• -tangential: 800 mm/min.
• -radial: 2000 mm/min.
• Machine dimensions: 3930×3460×2500 mm
• Machine weight: cca 8500 kg
