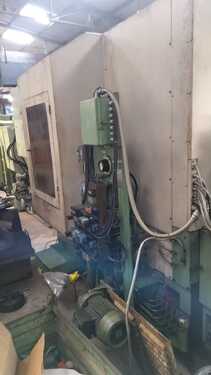

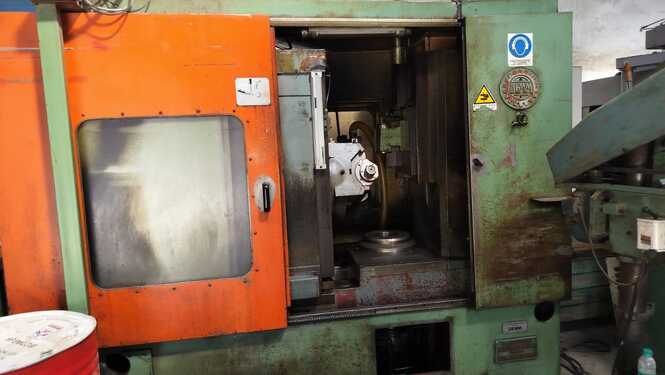

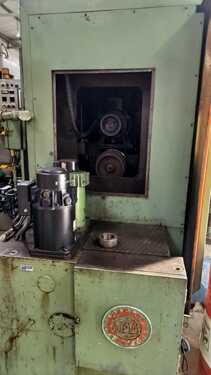

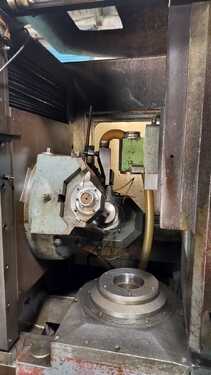

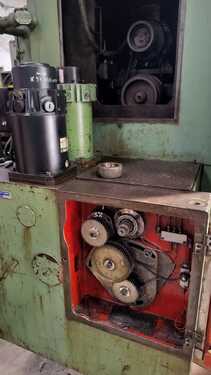

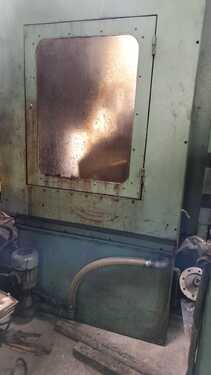

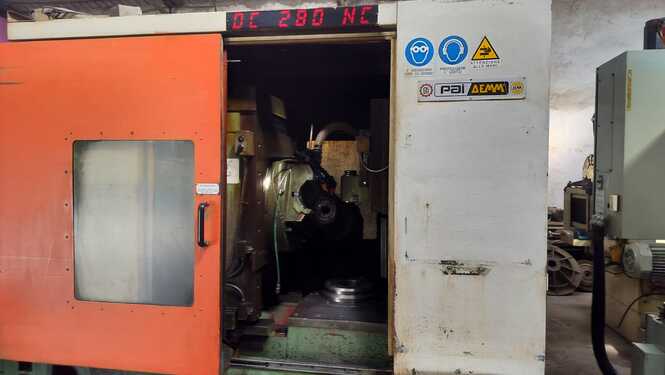

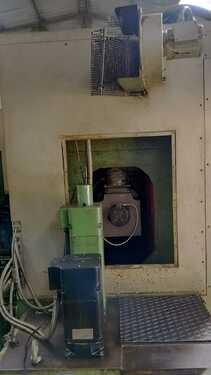

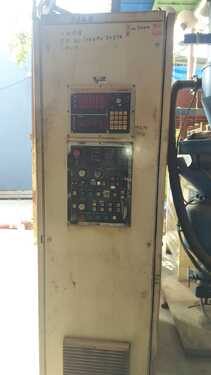

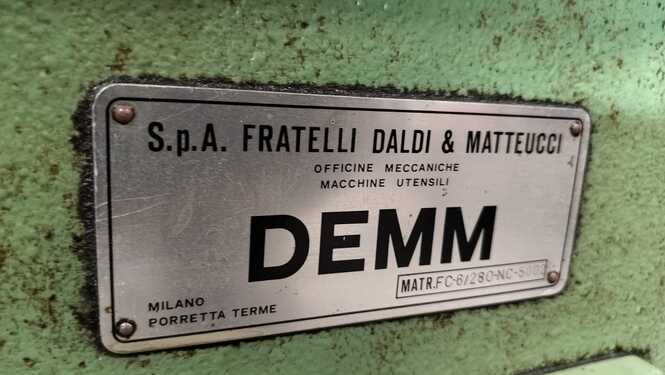

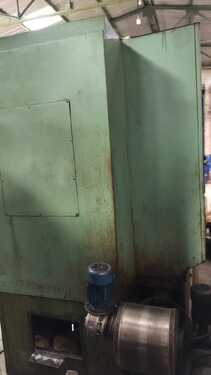

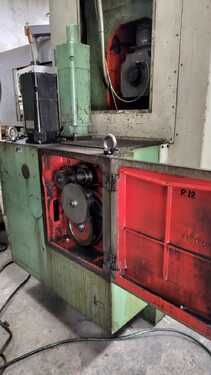

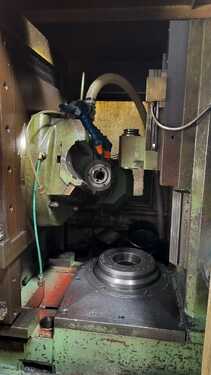

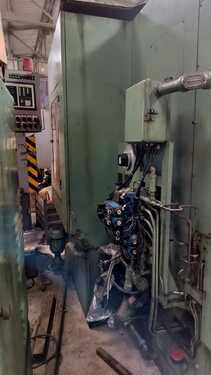

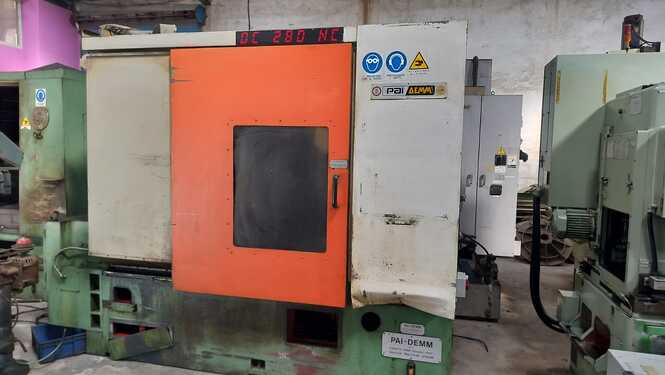

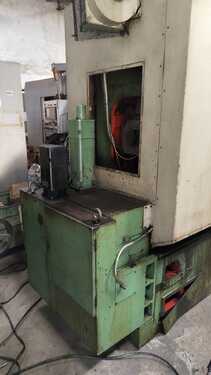

Gear Hobbers CNC

Specification:

Max. Wheel Diameter: 280 mm
Max. Gear Width: 240 mm
Max. Module: 6 mm
Table Diameter: 280 mm
Table Hole: 140 mm

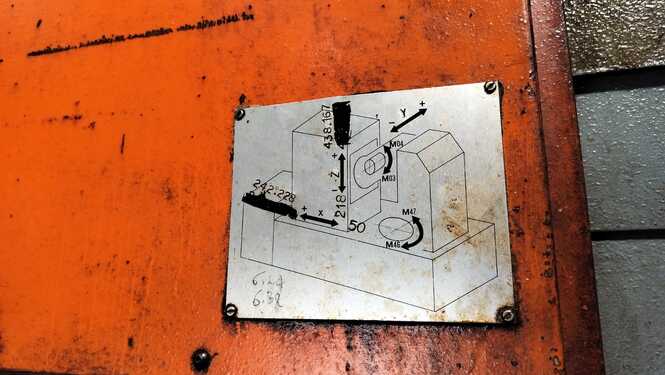

Distance Hob Workpiece Axis (X-Axis): 50-245 mm
Distance of Hob from Table face (Z-Axis): 220-460 mm
Max. Distance Table-Outer Steady: 720 mm
Tangential Movement of Hob: 180 mm
Diameter Of Hob: 150 mm
Max. Hob Length: 230 mm
Milling Head Swivel: ± 30 Degree
Feed Axial: 0.1-20 mm/rev
Feed Radial: 0.1-5 mm/rev
Rapid Travel – X: 400 mm/min
Rapid Travel – Y: 4000 mm/min
Rapid Travel – Z: 800 mm/min
Hob Turning Speeds: 50-420 rpm
Total Power Requirement: 35 – Kva
Approx. Weight Of Machine: 8.0 tons
