Gear Hobbers CNC

Type of machine :- 3 Axis Gear Hobbing Machine - Vertical

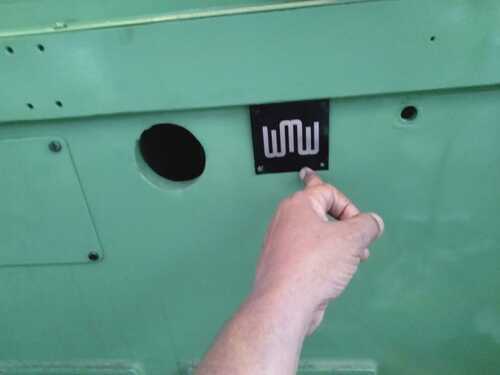

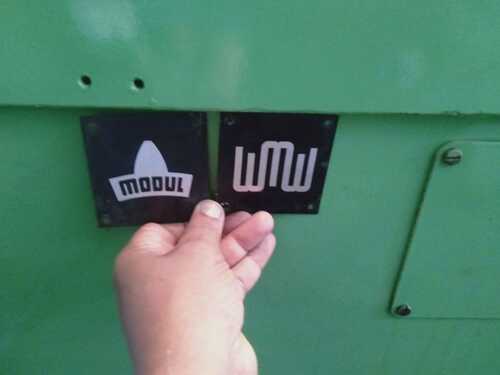

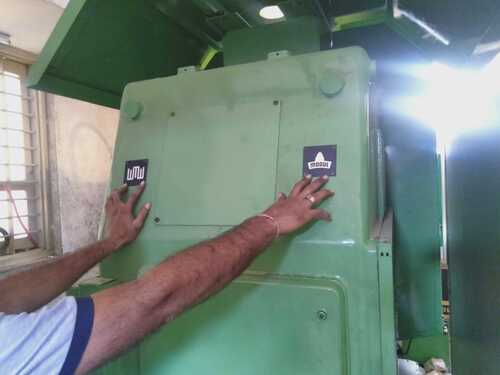

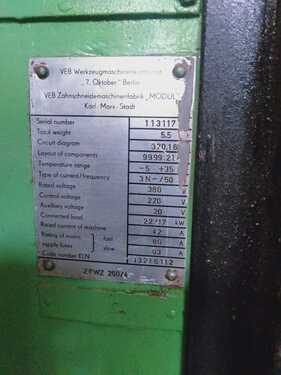

Make wmw MODUL:- Type ZFWZ 250/4

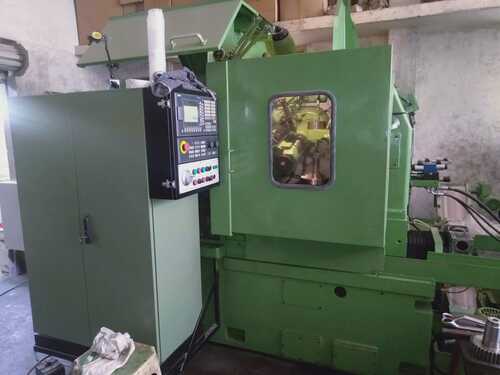

Three Axis CNC Controlled with Siemens 808 (brand new 2023)

max. wheel diameter 250 mm
gear width 275 mm
max. module 6 to 10 (depending on hob dia)
max. angle of teeth 45 Degree
feeds axial 275 mm
shifting 100 mm
min. number of teeth 8
diameter of hob 145 x 170 mm
clamping table diameter 275 / 350 mm

Additional information

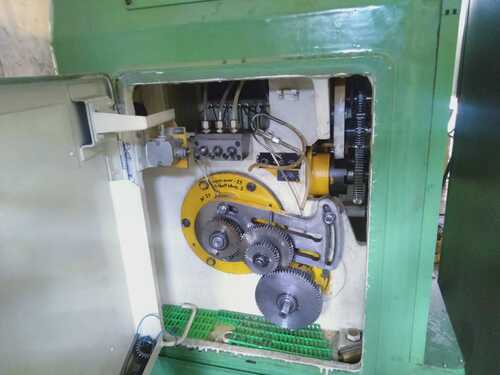

complete with change gears, etc
complete , handbooks and machine manuals etc.
fully rebuilt with BRAND NEW 2023 YOM

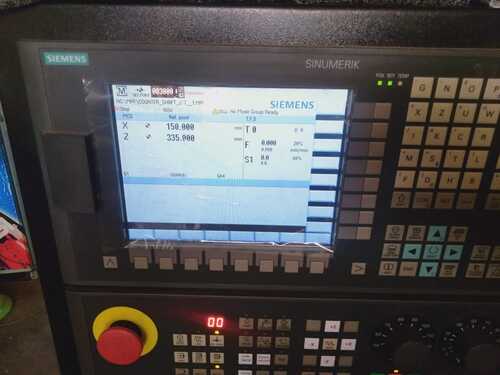

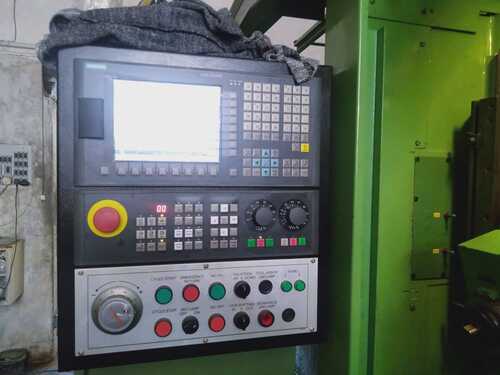

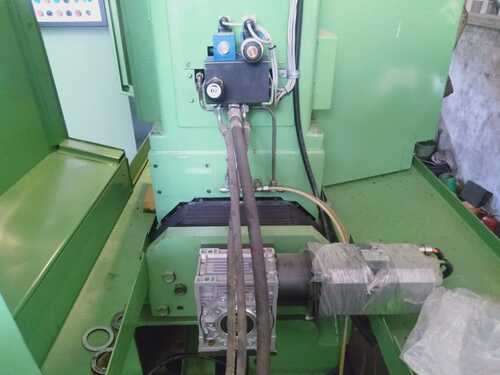

Siemens 808 , Digital drives and AC servo motors

CNC Controlled Axis X and Z + hob shifting,

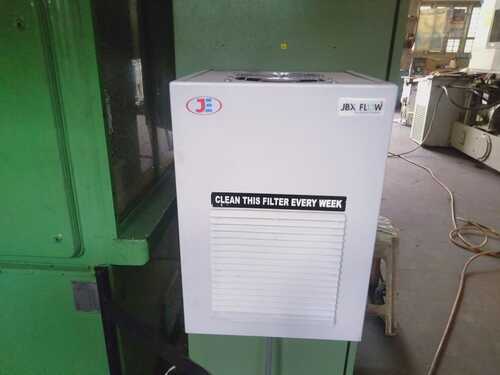

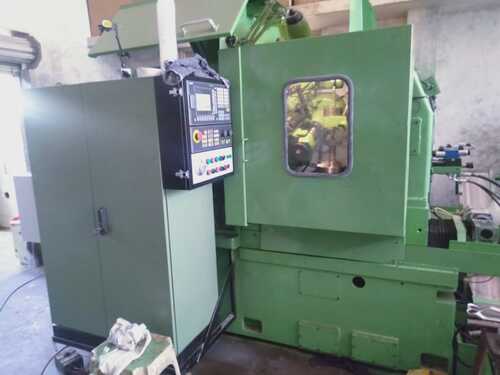

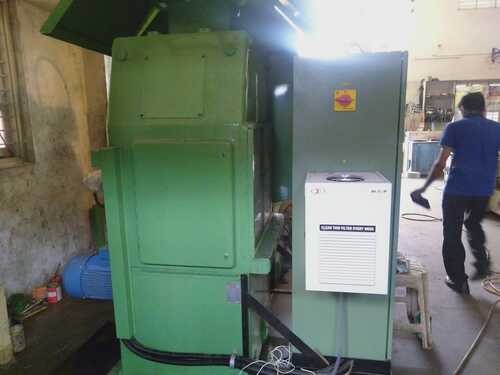

Free standing Electrical Cabinet fitted .

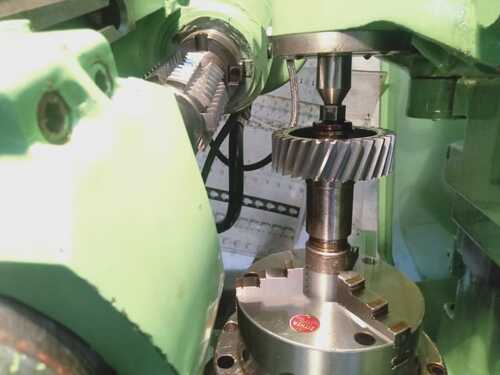

Suitable for Spur , Helical , Crowning & slightly tapered gears both for batch and heavy production of components

Machine Features

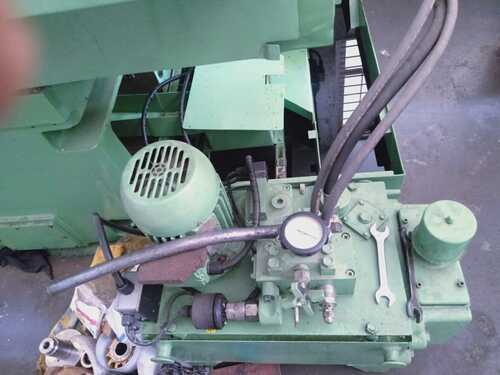

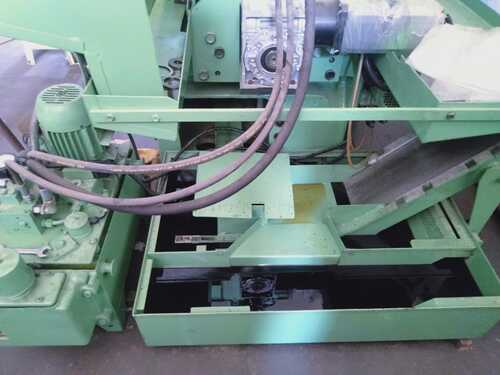

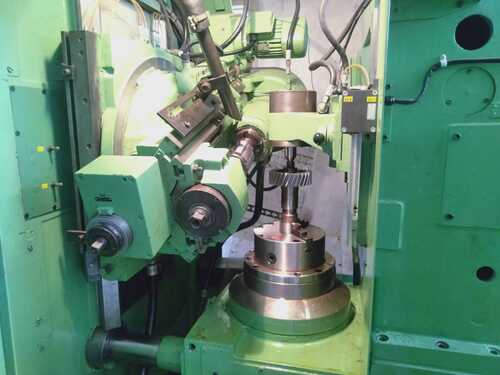

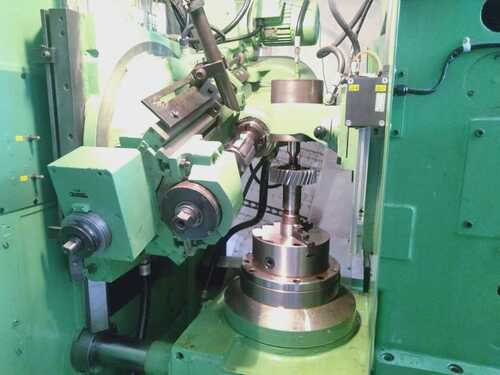

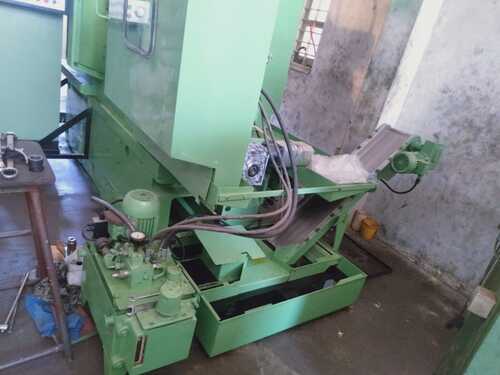

Hydraulic Clamping & Tailstock ,
Automatic Hob shift

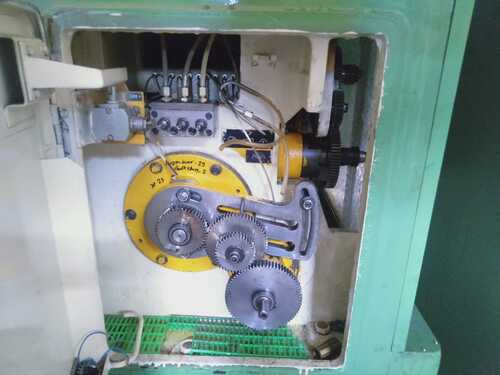

Full change gear set
One 1.25" hob arbor, outboard bearing, arbor wrench
Two copies of the machine operators manual
Two copies of all electrical and mechanical prints
Can be tooled up to customers as per customers requirement
Machine is ready for immediate delivery subject to prior sale.
