Gear Hobbers

Download Product PDF Enquiry / Quote / Interested Add this Favourite For Agents

Enlargeable Images :

Download Photo / Zip
Video

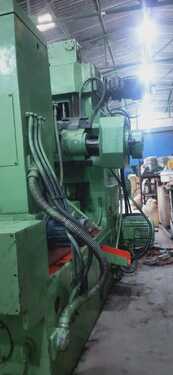

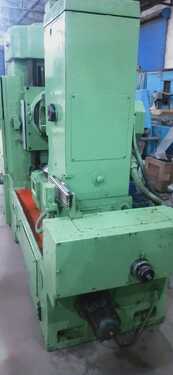

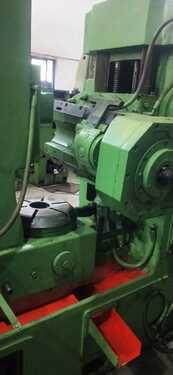

Machine Id: 1379 Serial No:
Model: FD 250 Asking Price: onrequest
Make: Cugir Country: Romania
Year: Weight: 0.0
Dimensions: Location: Mumbai Warehouse
Power:
Category: Gear Hobbers
Type of Machine: Universal Gear Hobber
Specification

 FD 250 machine is intended to proces the helical and straight toothed spur gear ,

    The machine can be used for one-off or small series production and for large series production.


    The machine is framed into the 6-th precision category according to DIN 3962.

Technical specification:

maximum hobbing diameter250 mm
maximum hobbing module6 mm
minimum number of teeth8
working table diameter310 mm
table bore diameter70 mm
milling head inclination angle45o
milling spindle coneMorse 4
maximum axial travel280 mm
tangential travel150 mm
hobbing cutter maximumdimension Fx1130x180 mm
milling spindle speed range56-335 rpm
axial working speed range0.71-6.3 mm/rev
tangential working feed range0.10-4.0 mm/rev
radial working feed range0.05-2.0 mm/rev
main electric motor power5.5 kW
settled power12 kW
cooling pump outflow63 l/min
machine weight5400 kg
overall dimension (Lxlxh)2405x1320x1970
