Gear Hobbers CNC

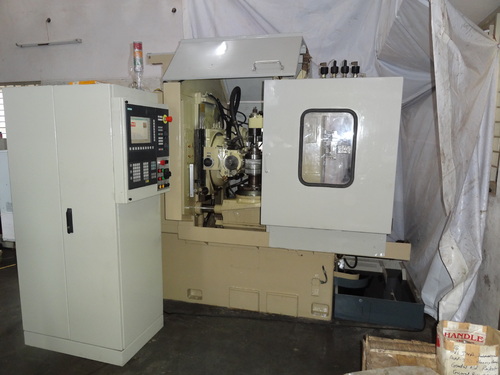

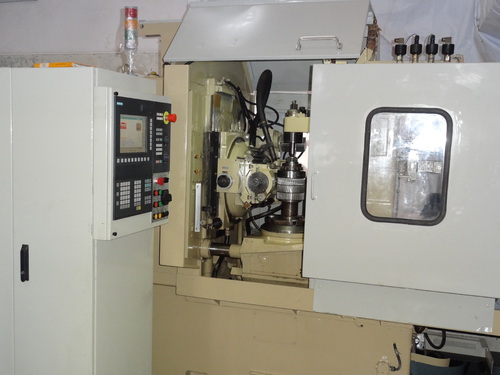

Type of machine :- 3 Axis Gear Hobbing Machine - Vertical
Make wmw MODUL:- Type ZFWZ 250/4

Three Axis CNC Controlled with Siemens 808 (brand new 2023)

max. wheel diameter 400 mm
gear width 275 mm
max. module 6 to 10 (depending on hob dia)
max. angle of teeth 45 Degree
feeds axial 275 mm
shifting 100 mm
min. number of teeth 8
diameter of hob 145 x 170 mm
clamping table diameter 275 / 350 mm

Additional information

complete with change gears, etc
complete , handbooks and machine manuals etc.
fully rebuilt with BRAND NEW 2023 YOM

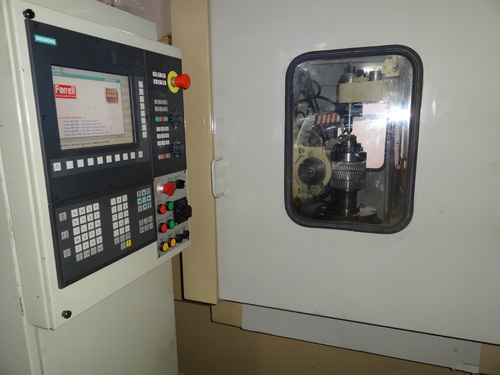

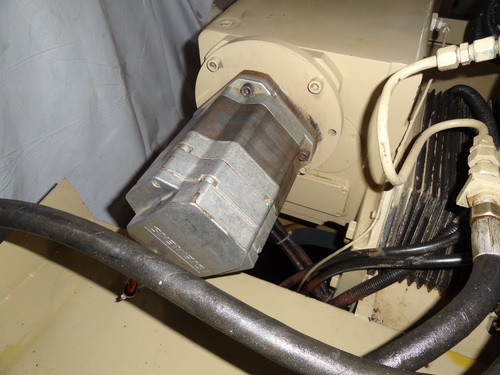

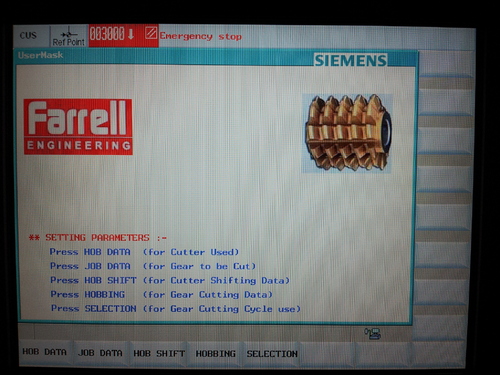

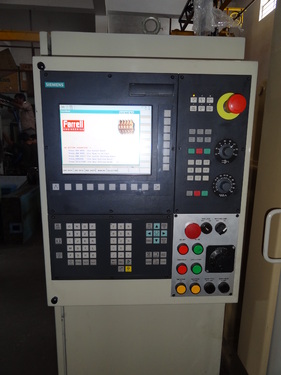

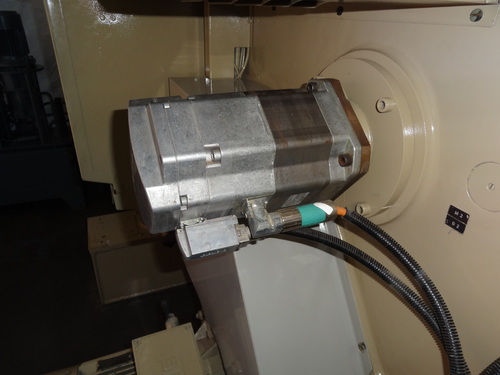

Siemens 808 , Digital drives and AC servo motors

CNC Controlled Axis X and Z + hob shifting,

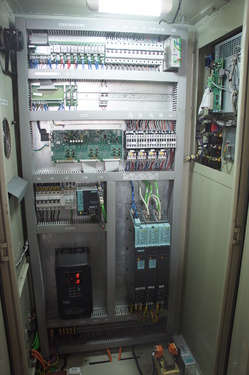

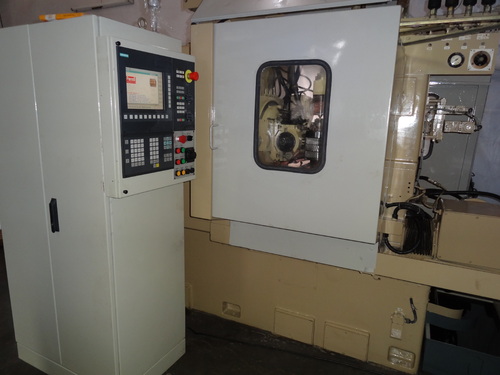

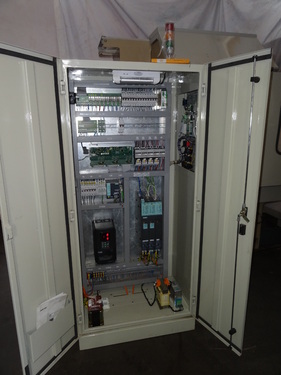

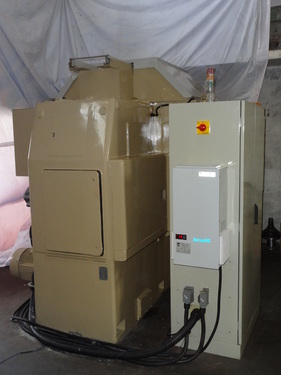

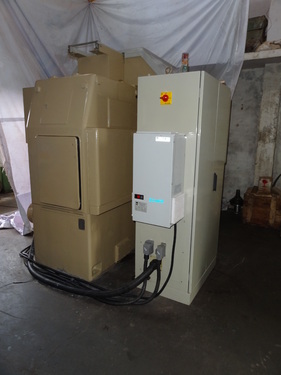

Free standing Electrical Cabinet fitted .

Suitable for Spur , Helical , Crowning & slightly tapered gears both for batch and heavy production of components

Machine Features

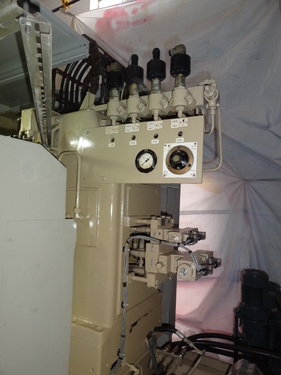

• Hydraulic Clamping & Tailstock ,

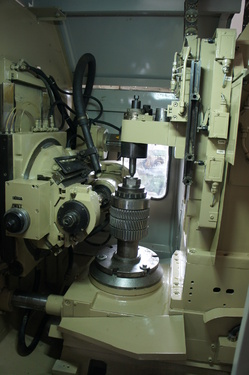

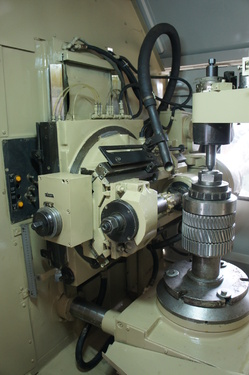

• Automatic Hob shift
• Full change gear set
• One 1.25" hob arbor, outboard bearing, arbor wrench
• Two copies of the machine operators manual
• Two copies of all electrical and mechanical prints
• Can be tooled up to customers as per customers requirement
• Machine is ready for immediate delivery subject to prior sale.
