| Machines » Borers All Types » h-63a (tos)
|
|
|
|
|
|

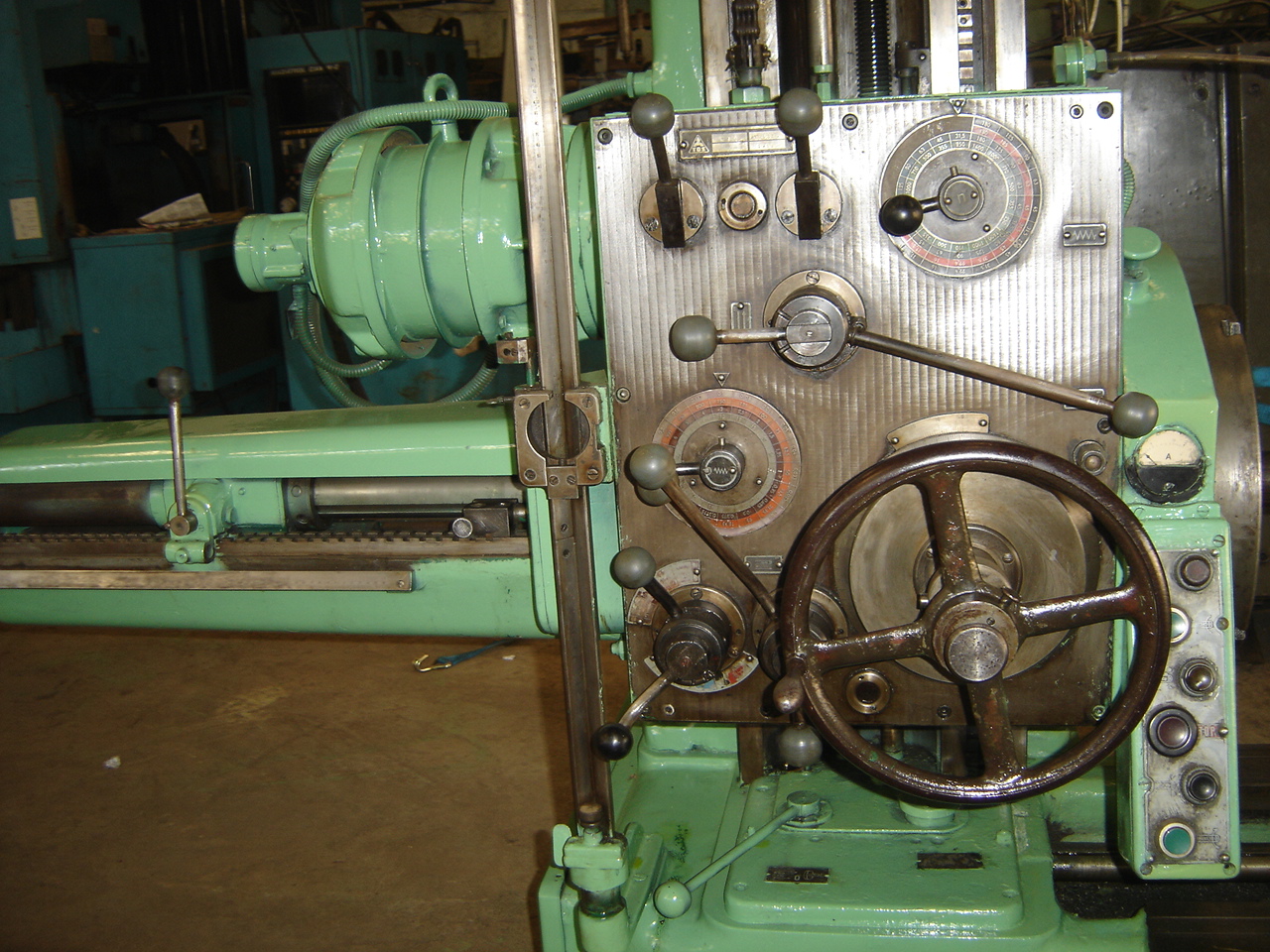

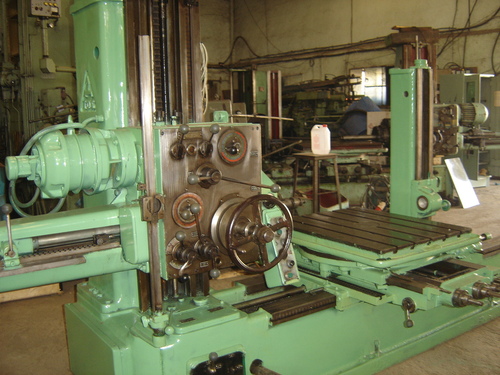

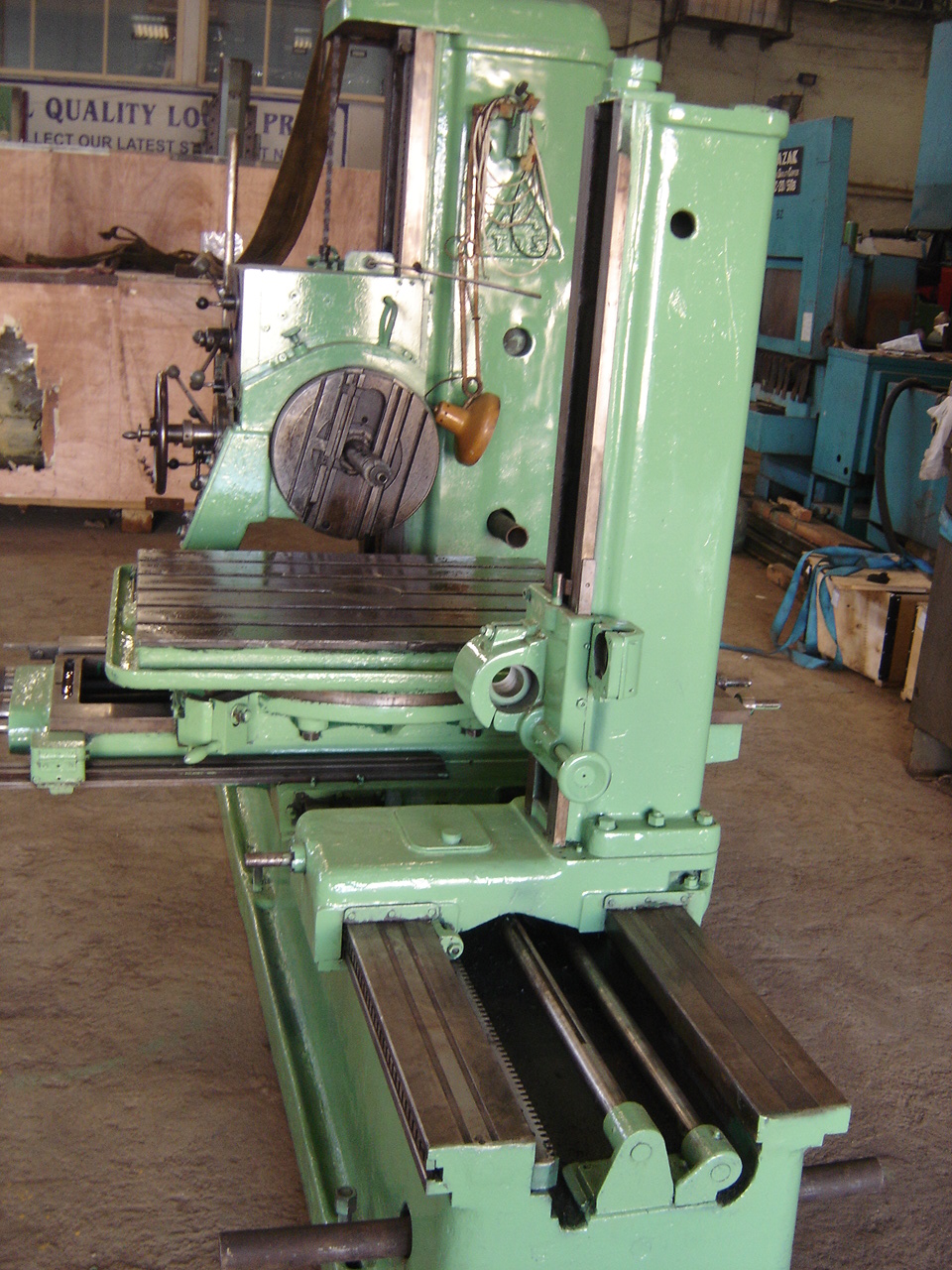

| Product Gallery : |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Dimensions |
: |
length 3975mm, width 2000mm, height 2230mm |
|
| Power |
: |
Total motor power: 4KW |
|
| Location |
: |
Mumbai WareHouse, India |
|
|
 |
| Category |
: |
Borers All Types |
|
|
|
|
|
| Type of Machine |
: |
horizontal table type borer |
|
|
|
|
|
|
|
|
|
|
| Specification : |
Type WH 63
Spindle taper: 4MT
Spindle dia.: 63mm
Spindle speeds: 8 - 1400rpm
Table size: 900 x 700 mm
Drilling movement: 560mm
Table load: 2000kg
Rotary table motion: 360 degrees
Cross travel: 850mm
Longitudinal travel: 1000mm
Vertical travel: 710mm
Feeding range: 0.02 - 12mm/r
Rapid feeding: 3 directions
|
|
|
| Description : |
|
The Machine is Complete In All Respects.
The Machine Has Face chuck, Rotary Table &
Tailstock.
|
|
|
