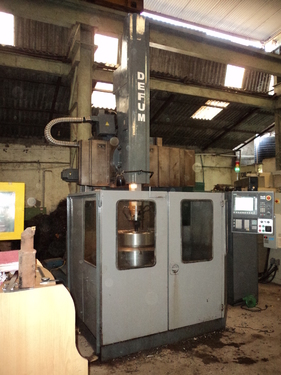

Table Diameter   1100mm (x and z axix cnc controlled)

Maximum swing   1350mm

Maximum RPM of the table 180

Maximum load on table 4000kg

Main Motor  37KW  AC

Weight of machine : 12,700 kg

Overall Dimensions  ;  4150x3040x4480mm  This may change as we are redesigning the guarding .

This machine was totally cleaned, hydraulic and coolant systems drained and cleaned, all gib adjustments were checked, all worm lashes were adjusted, all old parts specillay bearings were replaced, all mostly oil leaks replaced and then the machine was fully recertified using the ISO alignment standards for cnc Vtl.

This machine was recontrolled using a BRAND NEW 2013 YOM
Siemens 802DSL , Digital drives and AC servo motors Power CNC controlling digital Servo drives for the axes. All the old German controls were eliminated and replaced with new siemens 802DSL .
