Machine Id : 975

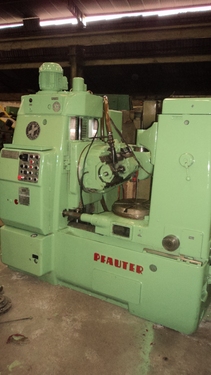

Model : p 400
Make : Pfauter
Year : 1975
Dimensions :
Power :
Location : Mumbai Warehouse,India
Category : Gear Hobbers
Serial No :
Country : Germany
Type of Machine : used gear hobbing machine
Weight : 0.0
Asking Price : onrequest

Specification :

Max. Gear Diameter : 400 mm

Module : 6

Hobbing Length : 300 mm

Max. Length of Workpiece appr. : 600 MM

Table Diameter : 400 mm

Table Bore, appr. : 90 mm

Hob Carriage, swivelling : 240 degr.hOB sIZE

Hob Size : 160 mm dia x 160 mm

Hob Shifting, max.  : 100 / 120 mm

Hob Spindle Speeds : 80 - 480 rpm

Feed Range, axial, infinitely variable : 0.4 - 4.95 mm / rev

Feed Range, radial, infinitely variable : 0.1 - 1.22 mm / rev

Feed Range, tangential, infinitely variable : 017 -2.1 mm / rev

Spindle Drive, appr. : 7.5 kW

Total electrical load, appr. : 10 kW - 380 V - 50 Hz

Description :

Good condition

Special Features
Selection Switch for various hobbing programmes, radial/axial quick feed. Hob shifting device. Differential drive for helical teeth. Set of change gears. Separate hob mandrel. Built-on chip conveyor. Coolant device
