Machines » Gear Hobbers »  RH 8
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite
Product Gallery :

Enlargeable Images : DOWNLOAD PHOTO/ZIP

Machine Id : 976

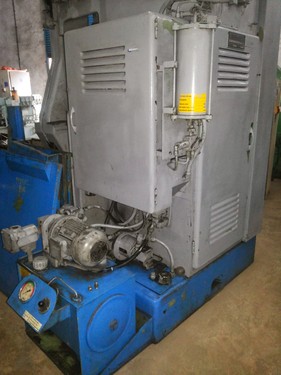

Model : RH 8
Make : CHURCHILL
Year : 1998
Dimensions :
Power :
Location : Mumbai Warehosue, India
Category : Gear Hobbers
Serial No :
Country : United Kingdom
Type of Machine : RIGID HOBBER
Weight : 0.0
Asking Price : onrequest

Specification :

Excellent machine
with full guards

Approx Capacities

Max. Diameter (using 3 in Hob) 7in
Max. Length of travel 8in
Max. 4DP(6 Mod) cast iron or steel;
Max. Height work spindle to tailstock centre 35.25in;
Height work spindle to centre of hob arbor(min)7.5in/(max.)15.5in
Min distance centre of work spindle to centre of hob arbor 1.25in

Hob Arbor dia(std)1.25in;

Hob arbor keyway 5/16in x 5/32in;

Hob head swivels from o* to 90* R & L.H.;

Max. hob outside dia 4in;

Vertical feeds per revolution of work 0.006in to 2.25in;

Infeed rate of hob slide per minute 0.10in to 1.80in;

with machine handbook. 3 phase electric not connected. (Located :27 Chapel Street,

Marrickville NSW) (143953-3)



Description :
