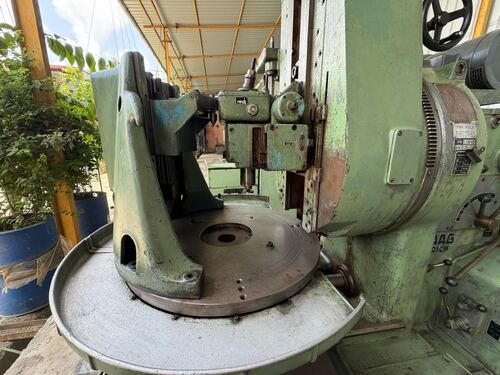

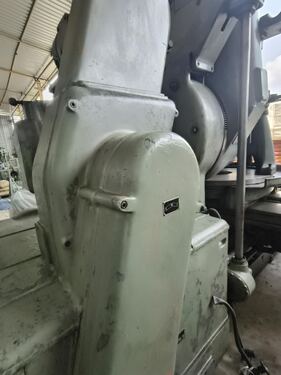

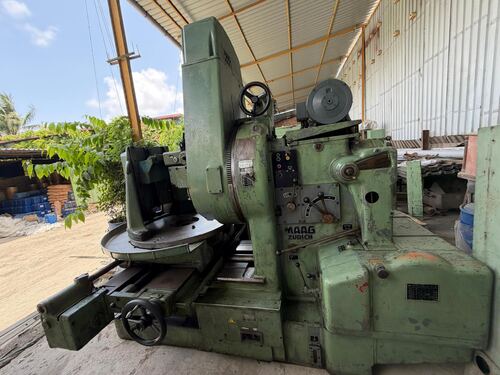

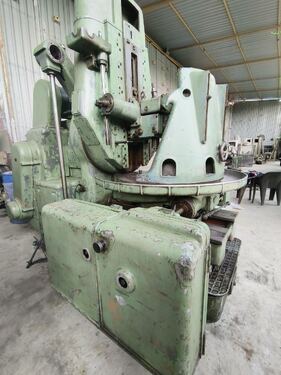

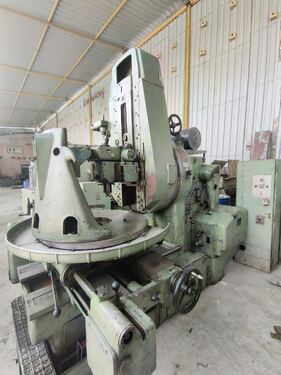

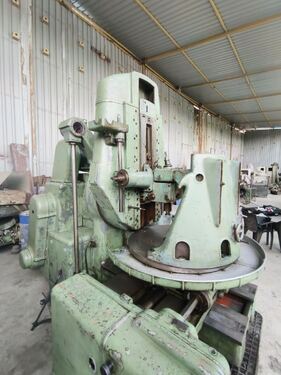

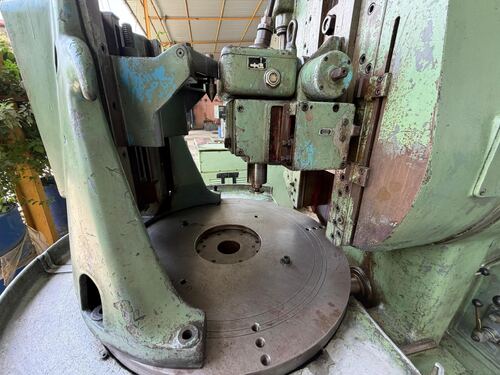

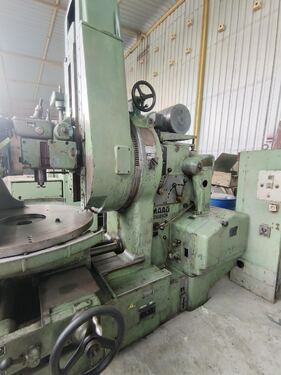

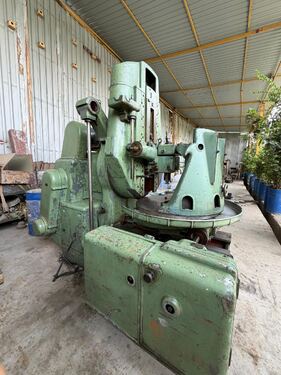

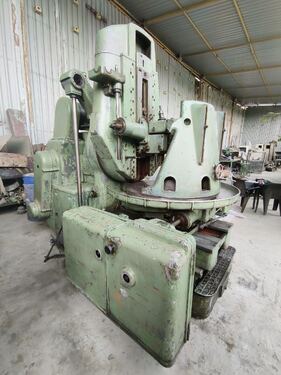

Machines » Gear Related Machines » SH 100 (with internal head)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model |
: |

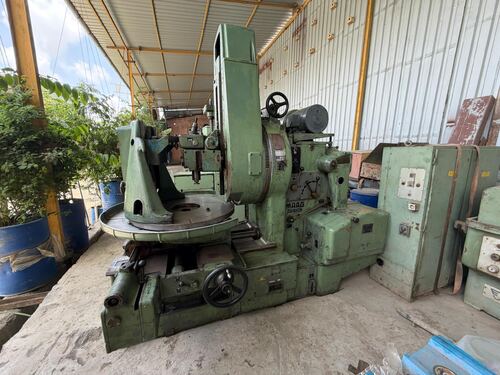

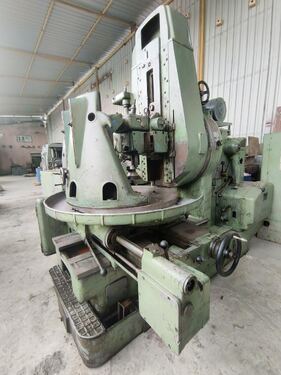

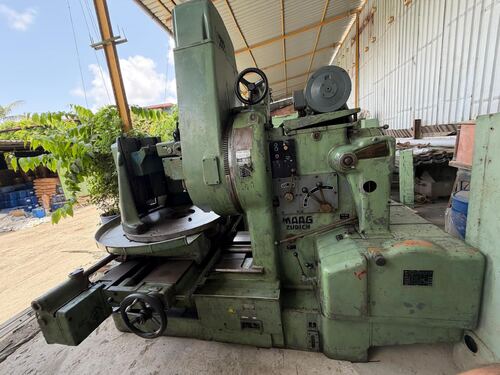

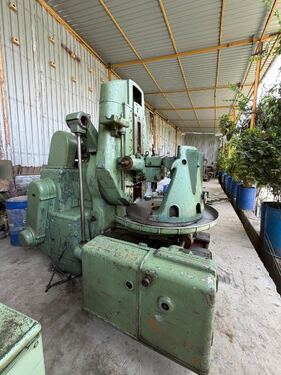

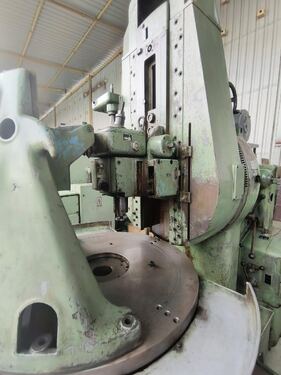

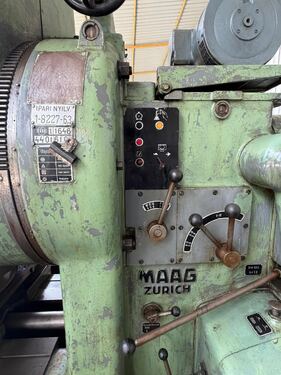

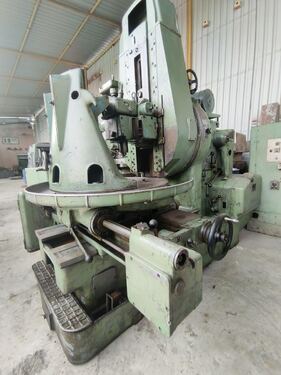

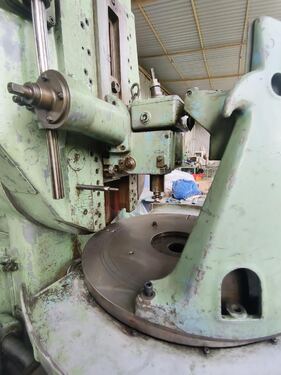

SH 100 (with internal head) |
|
|
|
|
|
|
|
|
|
| Location |
: |
mumbai warehouse,India |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |
universal gear shaper with 345mm stroke and internal head |
|
|
|
|
|
|
|
|
|
|
| Specification : |
Max wheel Ø 1200 mm
Module + 15
Module - 2
Max. spindle speed
Max. gear width 320 mm
Motor power
-------------------
Length x width x height 3300 mm × 2200 mm × 2800 mm
Weight 9000 kg
Worked power hours
State good
At local norms ---------
Status visible |
|
|
| Description : |
|
Tooth width - helical gear - 15 degrees 290 mm
tooth width - helical gear - 30 degrees 255 mm
tooth width - helical gear - 45 degrees 200 mm
ram stroke range 8,6 - 33,8 Hub/min
down feeds 43,2 - 110 mm/Hub
rotary feeds 9-80 Hub/Tlg.
electrics - voltage/frequency 380/50 V/Hz
total power requirement 16 PS
weight of the machine ca. 9 t
dimensions of the machine ca. 3,3 x 2,2 x 2,8 m
|
|
|
