Machines » Gear Related Machines »  sp 60
Download this Product on Your Desktop in PDF Enquiry / Quote / Interested Add this Favourite

The Beauty Of This Machine Is That it Doesnot Require Any Base Circle Disc.
Under Power, Component Trial Possible.

Product Gallery :

Enlargeable Images : DOWNLOAD PHOTO/ZIP
    3  4  5  8
Video :
Machine Id : 223
Model : sp 60
Make : maag
Year : 0
Dimensions : 1880x1300x1970mm
Power :
Location : Mumbai India...Under Power
Category : Gear Related Machines
Serial No :
Country : Switzerland
Type of Machine : gear tester / lead & involute measuringwithout base circle disc
Weight : 0.0
Asking Price : onrequest

Specification :

Please see Working Video To See 2008 Rebuilt Machine Under Power.



Please click online on links to see machines underpower







Video Number 1







Video Number 2



This Machine Is Completly Rebuilt & Installed With Brand New Software from Prime Technology India .

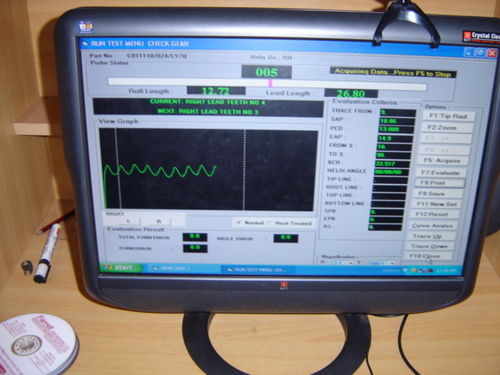

This Machine  Can be Inspected Under Power, All Dimensions of componet Can be Tested & Print Out Shall Be Taken out.

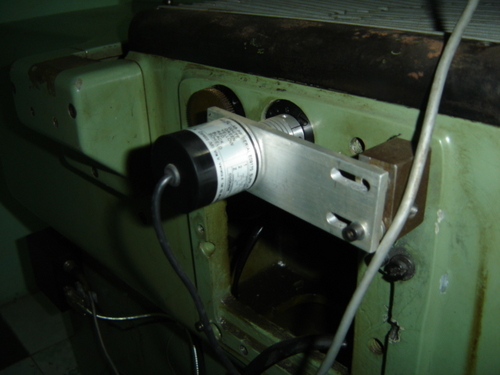

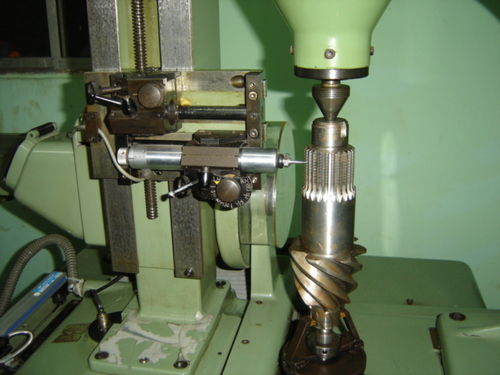

The Photo Of The Machine Is At Actuals & Is Testing A Component after Rebuilding & Installing Brand New Software System, Probs etc.







Tailstock type SPA-F-65/75.



Excellent condition Various accessories.



Maximum/Minimum base circle diameter 600/25mm







Maximum Module 20 Minimum Module 1







Maximum Generative cross travel 400m







Maximum Tip circle diameter 650mm







Max.Pinion Shaft diameter at max. height between centre 370mm







Maximum tracable facewidth at helix angle Zero Deg 150mm , at 60 deg angle 75mm







Maximum Pinion Shaft length 750mm







Maximum Permissible gear weight 500kg



Description :

This Particular Maag Model :- SP 60 does not use base circle disc.

Gear diameter (mm) 600

Gearwheel width (mm) 600
